element Fog

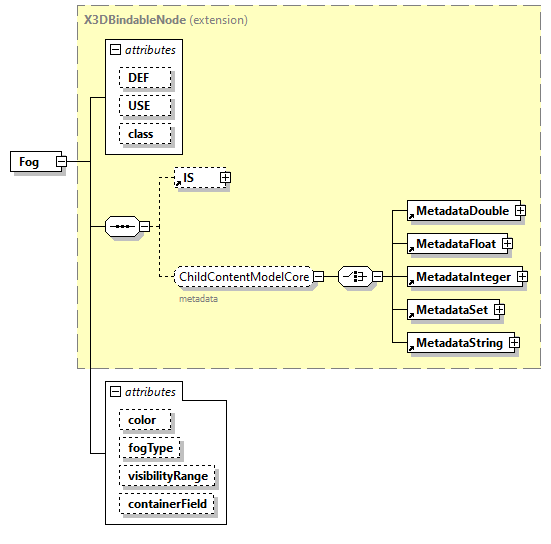

diagram
type	extension of X3DBindableNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  ChildContentModelImmersive
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. color   SFColor      1 1 1      fogType   fogTypeChoices      LINEAR      visibilityRange   derived by: SFFloat      0      containerField   xs:NMTOKEN      children
annotation	appinfo <!-- X3DFogObject interface appears in X3D version 3.1 --> <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="Fog">   <xs:annotation>     <xs:appinfo>       <!-- X3DFogObject interface appears in X3D version 3.1 -->       <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/enveffects.html#Fog"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DBindableNode">         <xs:attribute name="color" type="SFColor" default="1 1 1"/>         <xs:attribute name="fogType" type="fogTypeChoices" default="LINEAR"/>         <xs:attribute name="visibilityRange" default="0">           <!-- type="SFFloatNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Fog/@color

type	SFColor
properties	default  1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)*
source	<xs:attribute name="color" type="SFColor" default="1 1 1"/>

attribute Fog/@fogType

type	fogTypeChoices
properties	default  LINEAR
facets	Kind  Value  Annotation enumeration  LINEAR appinfo linear blending as a function of distance enumeration  EXPONENTIAL appinfo exponential blending as a function of distance
source	<xs:attribute name="fogType" type="fogTypeChoices" default="LINEAR"/>

attribute Fog/@visibilityRange

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="visibilityRange" default="0">   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Fog/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
