element NavigationInfo

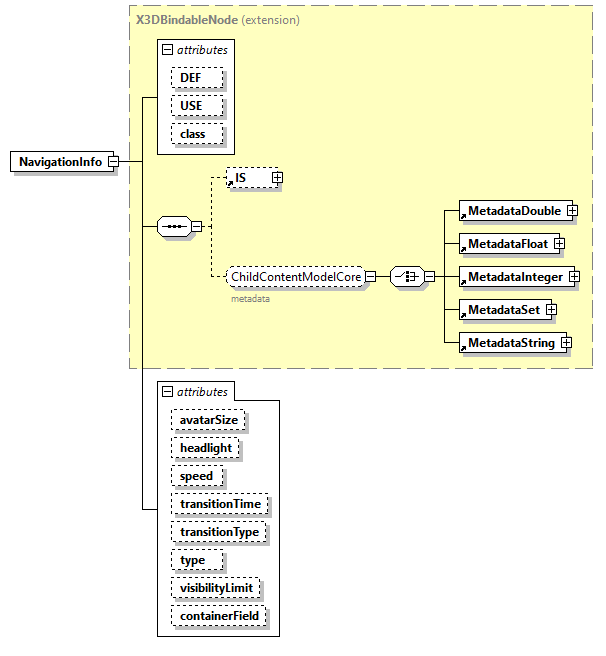

diagram x3d-3.0_diagrams/x3d-3.0_p84.png
type extension of X3DBindableNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
avatarSize  MFFloat    0.25 1.6 0.75
appinfo
<xs:minInclusive value="0"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
headlight  SFBool    true
speed  derived by: SFFloat    1
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
transitionTime  derived by: SFTime    1.0
transitionType  MFString    "LINEAR"
type  MFString    "EXAMINE" "ANY"
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
type attribute support for at least "ANY", "FLY", "EXAMINE", and "NONE" at level 1,
plus support for "WALK", "LOOKAT" at level 2.
visibilityLimit  derived by: SFFloat    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
containerField  xs:NMTOKEN    children
annotation
appinfo
<!-- optional values, can be extended -->
<xs:attribute name="transitionType" type="navigationTransitionTypeValues"/>
<xs:attribute name="type" type="navigationTypeValues"/>
<xs:attribute name="transitionComplete" type="SFBool" fixed="outputOnlyField"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="NavigationInfo">

<xs:annotation>

<xs:appinfo>

<!-- optional values, can be extended -->

<xs:attribute name="transitionType" type="navigationTransitionTypeValues"/>

<xs:attribute name="type" type="navigationTypeValues"/>

<xs:attribute name="transitionComplete" type="SFBool" fixed="outputOnlyField"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/navigation.html#NavigationInfo"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DBindableNode">

<xs:attribute name="avatarSize" type="MFFloat" default="0.25 1.6 0.75">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="headlight" type="SFBool" default="true"/>

<xs:attribute name="speed" default="1">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="transitionTime" default="1.0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="transitionType" type="MFString" default='"LINEAR"'/>

<xs:attribute name="type" type="MFString" default='"EXAMINE" "ANY"'>

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
type attribute support for at least "ANY", "FLY", "EXAMINE", and "NONE" at level 1,
plus support for "WALK", "LOOKAT" at level 2.
</xs:appinfo>

</xs:annotation>

</xs:attribute>

<xs:attribute name="visibilityLimit" default="0">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute NavigationInfo/@avatarSize
type MFFloat
properties
default 0.25 1.6 0.75
facets
Kind Value Annotation
whiteSpace collapse
pattern (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation
appinfo
<xs:minInclusive value="0"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="avatarSize" type="MFFloat" default="0.25 1.6 0.75">

<xs:annotation>

<xs:appinfo>

<xs:minInclusive value="0"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute NavigationInfo/@headlight
type SFBool
properties
default true
source <xs:attribute name="headlight" type="SFBool" default="true"/>

attribute NavigationInfo/@speed
type restriction of SFFloat
properties
default 1
facets
Kind Value Annotation
minInclusive 0
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="speed" default="1">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute NavigationInfo/@transitionTime
type restriction of SFTime
properties
default 1.0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="transitionTime" default="1.0">

<!-- type="SFTimeNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFTime">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute NavigationInfo/@transitionType
type MFString
properties
default "LINEAR"
source <xs:attribute name="transitionType" type="MFString" default='"LINEAR"'/>

attribute NavigationInfo/@type
type MFString
properties
default "EXAMINE" "ANY"
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
type attribute support for at least "ANY", "FLY", "EXAMINE", and "NONE" at level 1,
plus support for "WALK", "LOOKAT" at level 2.
source <xs:attribute name="type" type="MFString" default='"EXAMINE" "ANY"'>

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
type attribute support for at least "ANY", "FLY", "EXAMINE", and "NONE" at level 1,
plus support for "WALK", "LOOKAT" at level 2.
</xs:appinfo>

</xs:annotation>
</xs:attribute>

attribute NavigationInfo/@visibilityLimit
type restriction of SFFloat
properties
default 0
facets
Kind Value Annotation
minInclusive 0
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source <xs:attribute name="visibilityLimit" default="0">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>

</xs:appinfo>

</xs:annotation>

<!-- type="SFFloatNonNegative" -->

<xs:simpleType>

<xs:restriction base="SFFloat">

<xs:minInclusive value="0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute NavigationInfo/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
