element NurbsTextureCoordinate

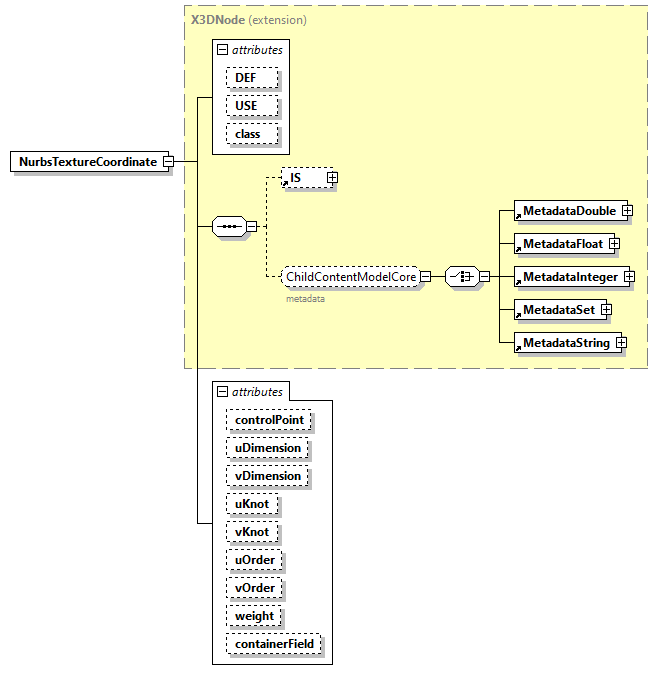

diagram
type	extension of X3DNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  NurbsPatchSurface NurbsTrimmedSurface group  SceneGraphFragmentContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. controlPoint   MFVec2f            uDimension   derived by: SFInt32      0      vDimension   derived by: SFInt32      0      uKnot   MFDouble            vKnot   MFDouble            uOrder   derived by: SFInt32      3      vOrder   derived by: SFInt32      3      weight   MFFloat            appinfo <xs:minExclusive value="0"/> containerField   xs:NMTOKEN      texCoord
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="NurbsTextureCoordinate">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsTextureCoordinate"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DNode">         <xs:attribute name="controlPoint" type="MFVec2f"/>         <xs:attribute name="uDimension" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="vDimension" default="0">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="uKnot" type="MFDouble"/>         <xs:attribute name="vKnot" type="MFDouble"/>         <xs:attribute name="uOrder" default="3">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="2"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="vOrder" default="3">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="2"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="weight" type="MFFloat">           <xs:annotation>             <xs:appinfo>               <xs:minExclusive value="0"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="texCoord"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute NurbsTextureCoordinate/@controlPoint

type	MFVec2f
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="controlPoint" type="MFVec2f"/>

attribute NurbsTextureCoordinate/@uDimension

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="uDimension" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NurbsTextureCoordinate/@vDimension

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="vDimension" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NurbsTextureCoordinate/@uKnot

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="uKnot" type="MFDouble"/>

attribute NurbsTextureCoordinate/@vKnot

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="vKnot" type="MFDouble"/>

attribute NurbsTextureCoordinate/@uOrder

type	restriction of SFInt32
properties	default  3
facets	Kind  Value  Annotation minInclusive  2
source	<xs:attribute name="uOrder" default="3">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="2"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NurbsTextureCoordinate/@vOrder

type	restriction of SFInt32
properties	default  3
facets	Kind  Value  Annotation minInclusive  2
source	<xs:attribute name="vOrder" default="3">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="2"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NurbsTextureCoordinate/@weight

type	MFFloat
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:minExclusive value="0"/>
source	<xs:attribute name="weight" type="MFFloat">   <xs:annotation>     <xs:appinfo>       <xs:minExclusive value="0"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute NurbsTextureCoordinate/@containerField

type	xs:NMTOKEN
properties	default  texCoord
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="texCoord"/>
