element SpotLight

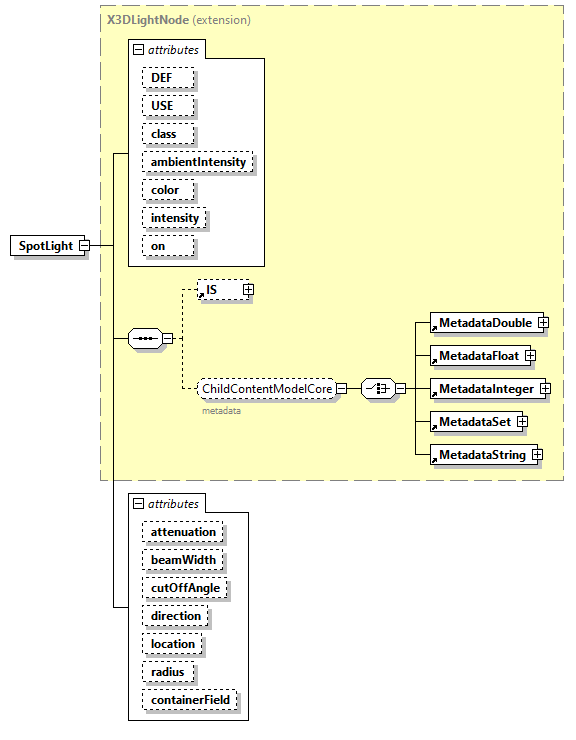

diagram
type	extension of X3DLightNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  ChildContentModelInteractive
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. ambientIntensity   unitIntervalType      0      color   SFColor      1 1 1      intensity   unitIntervalType      1      on   SFBool      true      attenuation   SFVec3f      1 0 0      appinfo <xs:minInclusive value="0"/> beamWidth   derived by: SFFloat      0.7854      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/> cutOffAngle   derived by: SFFloat      1.570796      direction   SFVec3f      0 0 -1      location   SFVec3f      0 0 0      radius   derived by: SFFloat      100      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/> containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="radius" default="100" fixed="inputOutputField"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/> </xs:appinfo> </xs:annotation> <xs:simpleType> <xs:restriction base="SFFloat"> <xs:minInclusive value="0"/> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> Linear attenuation may occur at level 2, full support at level 3.
source	<xs:element name="SpotLight">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="radius" default="100" fixed="inputOutputField">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>           </xs:appinfo>         </xs:annotation>         <xs:simpleType>           <xs:restriction base="SFFloat">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> Linear attenuation may occur at level 2, full support at level 3. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/lighting.html#SpotLight"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DLightNode">         <xs:attribute name="attenuation" type="SFVec3f" default="1 0 0">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="0"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="beamWidth" default="0.7854">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>             </xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="0"/>               <xs:maxInclusive value="1.570796"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="cutOffAngle" default="1.570796">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="0"/>               <xs:maxInclusive value="1.570796"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="direction" type="SFVec3f" default="0 0 -1"/>         <xs:attribute name="location" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="radius" default="100">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>             </xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!-- global field in X3D version 3.1 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute SpotLight/@attenuation

type	SFVec3f
properties	default  1 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
annotation	appinfo <xs:minInclusive value="0"/>
source	<xs:attribute name="attenuation" type="SFVec3f" default="1 0 0">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="0"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SpotLight/@beamWidth

type	restriction of SFFloat
properties	default  0.7854
facets	Kind  Value  Annotation maxInclusive  1.570796 minExclusive  0
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source	<xs:attribute name="beamWidth" default="0.7854">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>     </xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="0"/>       <xs:maxInclusive value="1.570796"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SpotLight/@cutOffAngle

type	restriction of SFFloat
properties	default  1.570796
facets	Kind  Value  Annotation maxInclusive  1.570796 minExclusive  0
source	<xs:attribute name="cutOffAngle" default="1.570796">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="0"/>       <xs:maxInclusive value="1.570796"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SpotLight/@direction

type	SFVec3f
properties	default  0 0 -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="direction" type="SFVec3f" default="0 0 -1"/>

attribute SpotLight/@location

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="location" type="SFVec3f" default="0 0 0"/>

attribute SpotLight/@radius

type	restriction of SFFloat
properties	default  100
facets	Kind  Value  Annotation minInclusive  0
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source	<xs:attribute name="radius" default="100">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Lighting"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>     </xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute SpotLight/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
