element TextureCoordinate

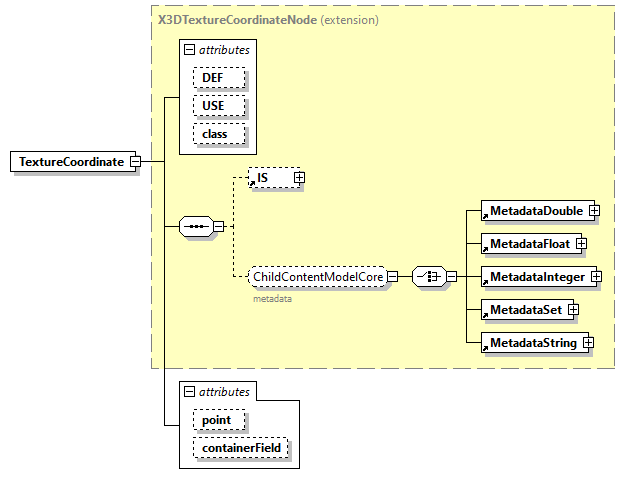

diagram
type	extension of X3DTextureCoordinateNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  MultiTextureCoordinate NurbsPatchSurface NurbsTrimmedSurface groups  ColorCoordinateNormalTexCoordContentModel ColorNormalTexCoordContentModel SceneGraphFragmentContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. point   MFVec2f            containerField   containerFieldChoicesTextureCoordinate      texCoord
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="TextureCoordinate">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texturing.html#TextureCoordinate"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DTextureCoordinateNode">         <xs:attribute name="point" type="MFVec2f"/>         <xs:attribute name="containerField" type="containerFieldChoicesTextureCoordinate" default="texCoord"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute TextureCoordinate/@point

type	MFVec2f
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){1}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="point" type="MFVec2f"/>

attribute TextureCoordinate/@containerField

type	containerFieldChoicesTextureCoordinate
properties	default  texCoord
facets	Kind  Value  Annotation enumeration  texCoord appinfo parent node is a geometry node enumeration  texCoordRamp appinfo parent node is ParticleSystem
source	<xs:attribute name="containerField" type="containerFieldChoicesTextureCoordinate" default="texCoord"/>
