element Viewpoint

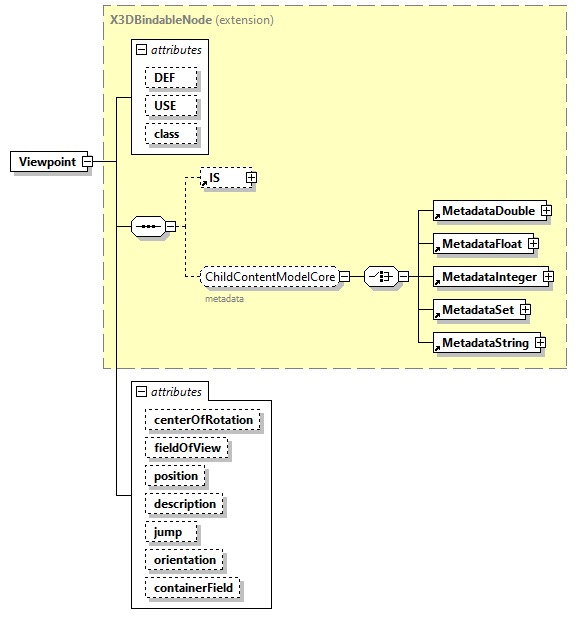

diagram
type	extension of X3DBindableNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	group  ChildContentModelInterchange
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. centerOfRotation   SFVec3f      0 0 0      fieldOfView   derived by: SFFloat      0.7854      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> position   SFVec3f      0 0 10      description   SFString            jump   SFBool      true      orientation   SFRotation      0 0 1 0      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="Viewpoint">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/navigation.html#Viewpoint"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DBindableNode">         <xs:attribute name="centerOfRotation" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="fieldOfView" default="0.7854">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>             </xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="0"/>               <xs:maxExclusive value="3.1416"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="position" type="SFVec3f" default="0 0 10"/>         <xs:attribute name="description" type="SFString"/>         <xs:attribute name="jump" type="SFBool" default="true"/>         <xs:attribute name="orientation" type="SFRotation" default="0 0 1 0"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!-- X3DViewpointNode node hierarchy modified in X3D version 3.2 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Viewpoint/@centerOfRotation

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="centerOfRotation" type="SFVec3f" default="0 0 0"/>

attribute Viewpoint/@fieldOfView

type	restriction of SFFloat
properties	default  0.7854
facets	Kind  Value  Annotation minExclusive  0 maxExclusive  3.1416
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="fieldOfView" default="0.7854">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="0"/>       <xs:maxExclusive value="3.1416"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Viewpoint/@position

type	SFVec3f
properties	default  0 0 10
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="position" type="SFVec3f" default="0 0 10"/>

attribute Viewpoint/@description

type	SFString
source	<xs:attribute name="description" type="SFString"/>

attribute Viewpoint/@jump

type	SFBool
properties	default  true
source	<xs:attribute name="jump" type="SFBool" default="true"/>

attribute Viewpoint/@orientation

type	SFRotation
properties	default  0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="orientation" type="SFRotation" default="0 0 1 0"/>

attribute Viewpoint/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
