complexType X3DBackgroundNode

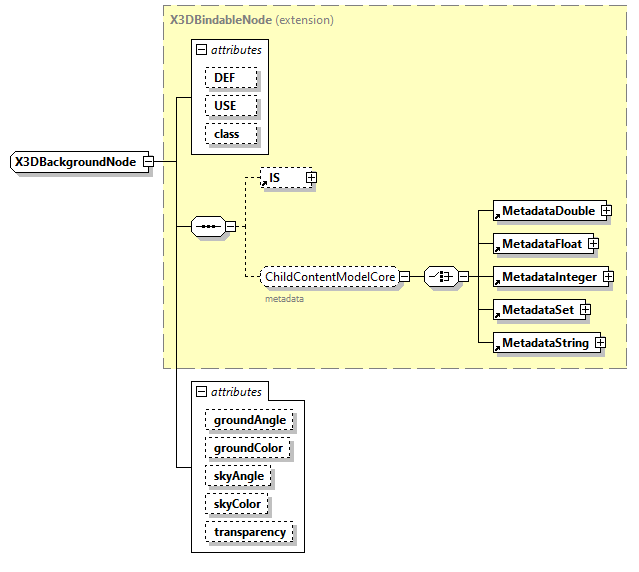

diagram
type	extension of X3DBindableNode
properties	base  X3DBindableNode abstract  true
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  Background TextureBackground
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. groundAngle   MFFloat            appinfo <xs:minInclusive value="0"/> <xs:maxInclusive value="1.5708"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> groundColor   MFColor            skyAngle   MFFloat            appinfo <xs:minInclusive value="0"/> <xs:maxInclusive value="3.1416"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> skyColor   MFColor      0 0 0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> Only one skyColor is required at level 1. transparency   unitIntervalType      0
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Abstract type from which all backgrounds inherit, also defining a background binding stack.
source	<xs:complexType name="X3DBackgroundNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Abstract type from which all backgrounds inherit, also defining a background binding stack. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/enveffects.html#X3DBackgroundNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DBindableNode">       <xs:attribute name="groundAngle" type="MFFloat">         <xs:annotation>           <xs:appinfo>             <xs:minInclusive value="0"/>             <xs:maxInclusive value="1.5708"/>             <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="groundColor" type="MFColor"/>       <xs:attribute name="skyAngle" type="MFFloat">         <xs:annotation>           <xs:appinfo>             <xs:minInclusive value="0"/>             <xs:maxInclusive value="3.1416"/>             <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="skyColor" type="MFColor" default="0 0 0">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> Only one skyColor is required at level 1. </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="transparency" type="unitIntervalType" default="0"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DBackgroundNode/@groundAngle

type	MFFloat
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="0"/> <xs:maxInclusive value="1.5708"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="groundAngle" type="MFFloat">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1.5708"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute X3DBackgroundNode/@groundColor

type	MFColor
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*((([+-]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)+){2}([+-]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="groundColor" type="MFColor"/>

attribute X3DBackgroundNode/@skyAngle

type	MFFloat
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="0"/> <xs:maxInclusive value="3.1416"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="skyAngle" type="MFFloat">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="0"/>       <xs:maxInclusive value="3.1416"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute X3DBackgroundNode/@skyColor

type	MFColor
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*((([+-]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)+){2}([+-]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> Only one skyColor is required at level 1.
source	<xs:attribute name="skyColor" type="MFColor" default="0 0 0">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalEffects"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> Only one skyColor is required at level 1. </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute X3DBackgroundNode/@transparency

type	unitIntervalType
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
source	<xs:attribute name="transparency" type="unitIntervalType" default="0"/>
