complexType X3DNurbsSurfaceGeometryNode

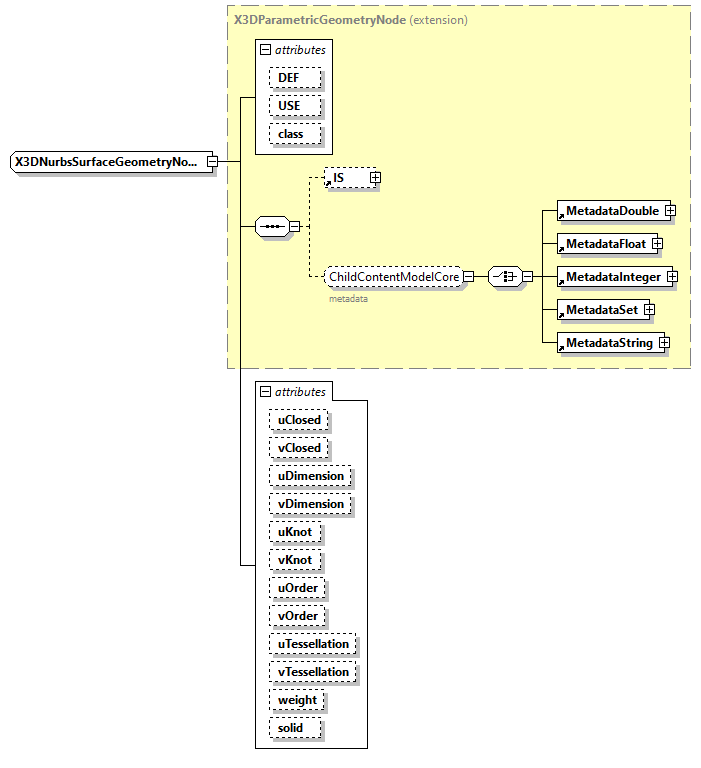

diagram
type	extension of X3DParametricGeometryNode
properties	base  X3DParametricGeometryNode abstract  true
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  NurbsPatchSurface NurbsTrimmedSurface
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. uClosed   SFBool      false      vClosed   SFBool      false      uDimension   derived by: SFInt32      0      vDimension   derived by: SFInt32      0      uKnot   MFDouble            vKnot   MFDouble            uOrder   derived by: SFInt32      3      vOrder   derived by: SFInt32      3      uTessellation   SFInt32      0      vTessellation   SFInt32      0      weight   MFDouble            appinfo <xs:minExclusive value="0"/> solid   SFBool      true
annotation	appinfo <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:element name="controlPoint" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/> <xs:element name="texCoord" type="SFNode" fixed="inputOutputField" default="X3DTextureCoordinateNode|NurbsTextureCoordinate"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Abstract geometry type for all types of NURBS surfaces.
source	<xs:complexType name="X3DNurbsSurfaceGeometryNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:element name="controlPoint" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>       <xs:element name="texCoord" type="SFNode" fixed="inputOutputField" default="X3DTextureCoordinateNode|NurbsTextureCoordinate"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Abstract geometry type for all types of NURBS surfaces. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#X3DNurbsSurfaceGeometryNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DParametricGeometryNode">       <xs:attribute name="uClosed" type="SFBool" default="false"/>       <xs:attribute name="vClosed" type="SFBool" default="false"/>       <xs:attribute name="uDimension" default="0">         <xs:simpleType>           <xs:restriction base="SFInt32">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="vDimension" default="0">         <xs:simpleType>           <xs:restriction base="SFInt32">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="uKnot" type="MFDouble"/>       <xs:attribute name="vKnot" type="MFDouble"/>       <xs:attribute name="uOrder" default="3">         <xs:simpleType>           <xs:restriction base="SFInt32">             <xs:minInclusive value="2"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="vOrder" default="3">         <xs:simpleType>           <xs:restriction base="SFInt32">             <xs:minInclusive value="2"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="uTessellation" type="SFInt32" default="0"/>       <xs:attribute name="vTessellation" type="SFInt32" default="0"/>       <xs:attribute name="weight" type="MFDouble">         <xs:annotation>           <xs:appinfo>             <xs:minExclusive value="0"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="solid" type="SFBool" default="true"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DNurbsSurfaceGeometryNode/@uClosed

type	SFBool
properties	default  false
source	<xs:attribute name="uClosed" type="SFBool" default="false"/>

attribute X3DNurbsSurfaceGeometryNode/@vClosed

type	SFBool
properties	default  false
source	<xs:attribute name="vClosed" type="SFBool" default="false"/>

attribute X3DNurbsSurfaceGeometryNode/@uDimension

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="uDimension" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DNurbsSurfaceGeometryNode/@vDimension

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="vDimension" default="0">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DNurbsSurfaceGeometryNode/@uKnot

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="uKnot" type="MFDouble"/>

attribute X3DNurbsSurfaceGeometryNode/@vKnot

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="vKnot" type="MFDouble"/>

attribute X3DNurbsSurfaceGeometryNode/@uOrder

type	restriction of SFInt32
properties	default  3
facets	Kind  Value  Annotation minInclusive  2
source	<xs:attribute name="uOrder" default="3">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="2"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DNurbsSurfaceGeometryNode/@vOrder

type	restriction of SFInt32
properties	default  3
facets	Kind  Value  Annotation minInclusive  2
source	<xs:attribute name="vOrder" default="3">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="2"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute X3DNurbsSurfaceGeometryNode/@uTessellation

type	SFInt32
properties	default  0
source	<xs:attribute name="uTessellation" type="SFInt32" default="0"/>

attribute X3DNurbsSurfaceGeometryNode/@vTessellation

type	SFInt32
properties	default  0
source	<xs:attribute name="vTessellation" type="SFInt32" default="0"/>

attribute X3DNurbsSurfaceGeometryNode/@weight

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:minExclusive value="0"/>
source	<xs:attribute name="weight" type="MFDouble">   <xs:annotation>     <xs:appinfo>       <xs:minExclusive value="0"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute X3DNurbsSurfaceGeometryNode/@solid

type	SFBool
properties	default  true
source	<xs:attribute name="solid" type="SFBool" default="true"/>
