element NurbsPositionInterpolator

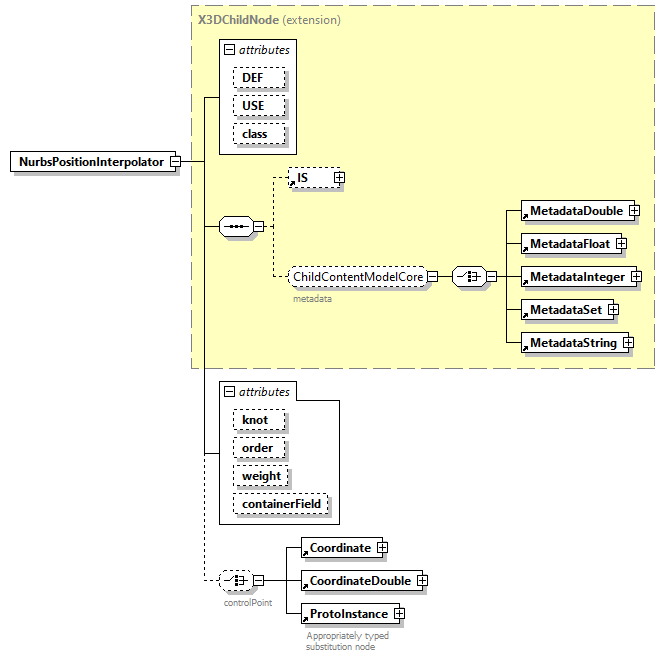

diagram
type	extension of X3DChildNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Coordinate CoordinateDouble ProtoInstance
used by	group  ChildContentModelNurbs
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. knot   MFDouble            order   derived by: SFInt32      3      weight   MFDouble            containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="knot" type="MFDouble" fixed="inputOutputField"/> <xs:attribute name="set_fraction" type="SFFloat" fixed="inputOnlyField"/> <xs:attribute name="value_changed" type="SFVec3f" fixed="outputOnlyField"/> <xs:attribute name="order" type="SFInt32" fixed="inputOutputField" default="3"/> <xs:element name="controlPoint" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="NurbsPositionInterpolator">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="knot" type="MFDouble" fixed="inputOutputField"/>       <xs:attribute name="set_fraction" type="SFFloat" fixed="inputOnlyField"/>       <xs:attribute name="value_changed" type="SFVec3f" fixed="outputOnlyField"/>       <xs:attribute name="order" type="SFInt32" fixed="inputOutputField" default="3"/>       <xs:element name="controlPoint" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsPositionInterpolator"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DChildNode">         <xs:choice minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>controlPoint</xs:documentation>           </xs:annotation>           <xs:element ref="Coordinate"/>           <xs:element ref="CoordinateDouble"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="knot" type="MFDouble"/>         <xs:attribute name="order" default="3">           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="2"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="weight" type="MFDouble"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute NurbsPositionInterpolator/@knot

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="knot" type="MFDouble"/>

attribute NurbsPositionInterpolator/@order

type	restriction of SFInt32
properties	default  3
facets	Kind  Value  Annotation minInclusive  2
source	<xs:attribute name="order" default="3">   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="2"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NurbsPositionInterpolator/@weight

type	MFDouble
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="weight" type="MFDouble"/>

attribute NurbsPositionInterpolator/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
