element Coordinate

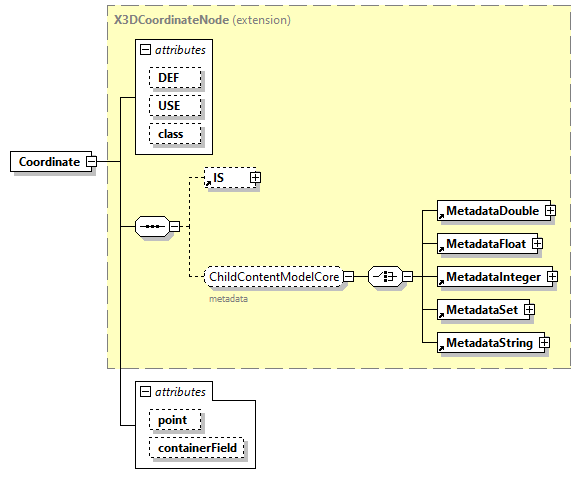

diagram
type	extension of X3DCoordinateNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  HAnimHumanoid NurbsCurve NurbsOrientationInterpolator NurbsPatchSurface NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsTrimmedSurface groups  ColorCoordinateContentModel ColorCoordinateNormalTexCoordContentModel ComposedGeometryContentModel SceneGraphFragmentContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. point   MFVec3f            containerField   containerFieldChoicesX3DCoordinateNode      coord
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="Coordinate">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/rendering.html#Coordinate"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DCoordinateNode">         <xs:attribute name="point" type="MFVec3f"/>         <xs:attribute name="containerField" type="containerFieldChoicesX3DCoordinateNode" default="coord"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Coordinate/@point

type	MFVec3f
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="point" type="MFVec3f"/>

attribute Coordinate/@containerField

type	containerFieldChoicesX3DCoordinateNode
properties	default  coord
facets	Kind  Value  Annotation enumeration  coord appinfo parent node is a geometry node enumeration  controlPoint appinfo parent node is a Nurbs node enumeration  skinCoord appinfo parent node is HAnimHumanoid
source	<xs:attribute name="containerField" type="containerFieldChoicesX3DCoordinateNode" default="coord"/>
