element NurbsSwungSurface

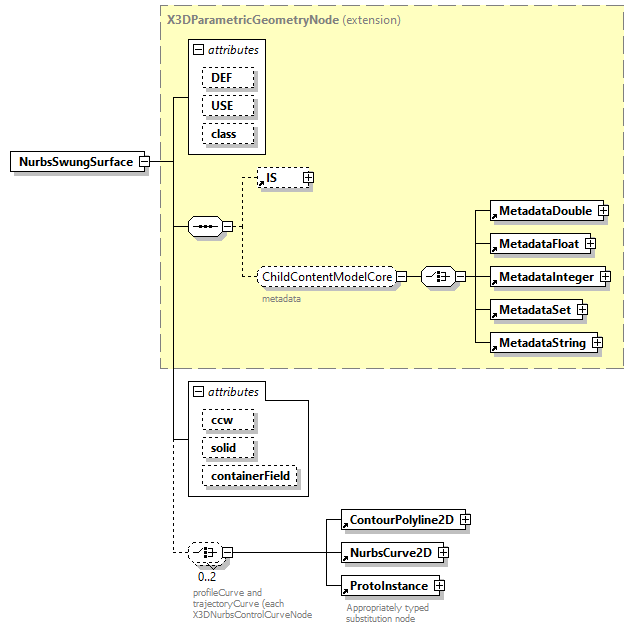

diagram
type	extension of X3DParametricGeometryNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ContourPolyline2D NurbsCurve2D ProtoInstance
used by	element  NurbsSet group  GeometryContentModelNurbs
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. ccw   SFBool      true      solid   SFBool      true      containerField   xs:NMTOKEN      geometry
annotation	appinfo <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:element name="profileCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/> <xs:element name="trajectoryCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source	<xs:element name="NurbsSwungSurface">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:element name="profileCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/>       <xs:element name="trajectoryCurve" type="SFNode" fixed="inputOutputField" default="X3DNurbsControlCurveNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsSwungSurface"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DParametricGeometryNode">         <xs:choice minOccurs="0" maxOccurs="2">           <xs:annotation>             <xs:documentation>profileCurve and trajectoryCurve (each X3DNurbsControlCurveNode)</xs:documentation>           </xs:annotation>           <xs:element ref="ContourPolyline2D"/>           <xs:element ref="NurbsCurve2D"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="ccw" type="SFBool" default="true"/>         <xs:attribute name="solid" type="SFBool" default="true"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute NurbsSwungSurface/@ccw

type	SFBool
properties	default  true
source	<xs:attribute name="ccw" type="SFBool" default="true"/>

attribute NurbsSwungSurface/@solid

type	SFBool
properties	default  true
source	<xs:attribute name="solid" type="SFBool" default="true"/>

attribute NurbsSwungSurface/@containerField

type	xs:NMTOKEN
properties	default  geometry
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
