element NurbsSet

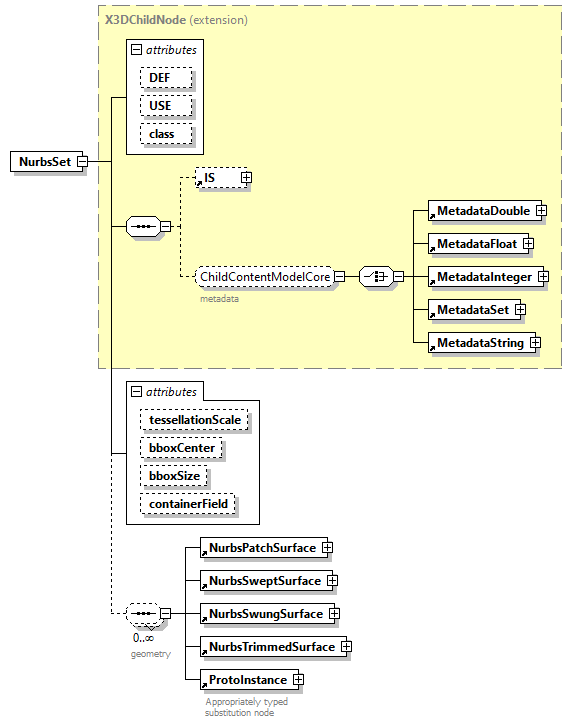

diagram
type	extension of X3DChildNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface ProtoInstance
used by	group  ChildContentModelNurbs
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. tessellationScale   derived by: SFFloat      1.0      bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:element name="addGeometry" type="MFNode" fixed="inputOnlyField" default="X3DNurbsSurfaceGeometryNode"/> <xs:element name="removeGeometry" type="MFNode" fixed="inputOnlyField" default="X3DNurbsSurfaceGeometryNode"/> <xs:element name="geometry" type="MFNode" fixed="inputOutputField" default="X3DNurbsSurfaceGeometryNode"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="NurbsSet">   <xs:annotation>     <xs:appinfo>       <xs:element name="addGeometry" type="MFNode" fixed="inputOnlyField" default="X3DNurbsSurfaceGeometryNode"/>       <xs:element name="removeGeometry" type="MFNode" fixed="inputOnlyField" default="X3DNurbsSurfaceGeometryNode"/>       <xs:element name="geometry" type="MFNode" fixed="inputOutputField" default="X3DNurbsSurfaceGeometryNode"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsSet"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DChildNode">         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>geometry</xs:documentation>           </xs:annotation>           <xs:element ref="NurbsPatchSurface"/>           <xs:element ref="NurbsSweptSurface"/>           <xs:element ref="NurbsSwungSurface"/>           <xs:element ref="NurbsTrimmedSurface"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>         <xs:attribute name="tessellationScale" default="1.0">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!-- bboxDisplay, visible added in X3D version 4.0 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute NurbsSet/@tessellationScale

type	restriction of SFFloat
properties	default  1.0
facets	Kind  Value  Annotation minExclusive  0
source	<xs:attribute name="tessellationScale" default="1.0">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute NurbsSet/@bboxCenter

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute NurbsSet/@bboxSize

type	bboxSizeType
properties	default  -1 -1 -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source	<xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

attribute NurbsSet/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
