complexType X3DComposedGeometryNode

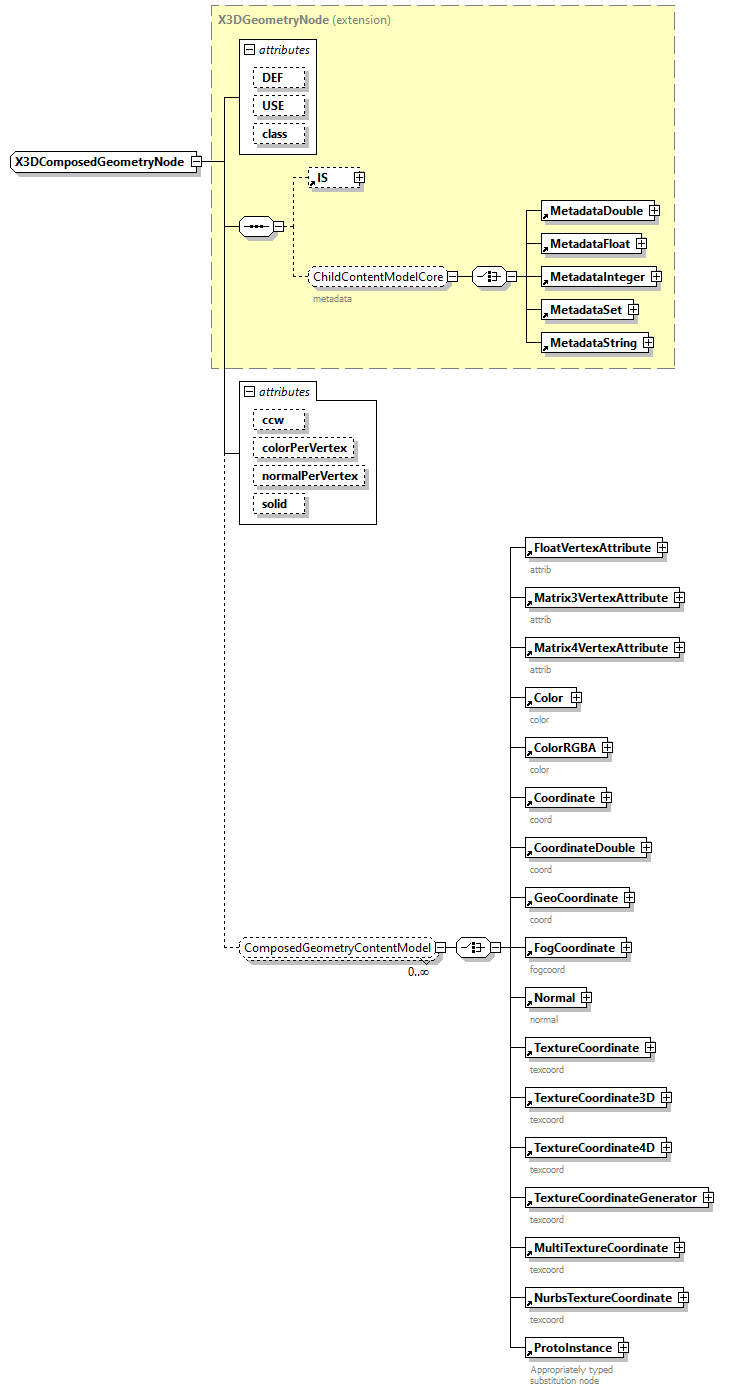

diagram
type	extension of X3DGeometryNode
properties	base  X3DGeometryNode abstract  true
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString FloatVertexAttribute Matrix3VertexAttribute Matrix4VertexAttribute Color ColorRGBA Coordinate CoordinateDouble GeoCoordinate FogCoordinate Normal TextureCoordinate TextureCoordinate3D TextureCoordinate4D TextureCoordinateGenerator MultiTextureCoordinate NurbsTextureCoordinate ProtoInstance
used by	elements  IndexedFaceSet IndexedQuadSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet QuadSet TriangleFanSet TriangleSet TriangleStripSet
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. ccw   SFBool      true      colorPerVertex   SFBool      true      normalPerVertex   SFBool      true      solid   SFBool      true
annotation	appinfo <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:element name="attrib" type="MFNode" fixed="inputOutputField" default="X3DVertexAttributeNode"/> <xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/> <xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/> <xs:element name="fogCoord" type="SFNode" fixed="inputOutputField" default="FogCoordinate"/> <xs:element name="normal" type="SFNode" fixed="inputOutputField" default="X3DNormalNode"/> <xs:element name="texCoord" type="SFNode" fixed="inputOutputField" default="X3DTextureCoordinateNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Composed geometry nodes produce renderable geometry, can contain Color Coordinate Normal TextureCoordinate, and are contained by a Shape node.
source	<xs:complexType name="X3DComposedGeometryNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:element name="attrib" type="MFNode" fixed="inputOutputField" default="X3DVertexAttributeNode"/>       <xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/>       <xs:element name="coord" type="SFNode" fixed="inputOutputField" default="X3DCoordinateNode"/>       <xs:element name="fogCoord" type="SFNode" fixed="inputOutputField" default="FogCoordinate"/>       <xs:element name="normal" type="SFNode" fixed="inputOutputField" default="X3DNormalNode"/>       <xs:element name="texCoord" type="SFNode" fixed="inputOutputField" default="X3DTextureCoordinateNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Composed geometry nodes produce renderable geometry, can contain Color Coordinate Normal TextureCoordinate, and are contained by a Shape node. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/rendering.html#X3DComposedGeometryNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DGeometryNode">       <xs:group ref="ComposedGeometryContentModel" minOccurs="0" maxOccurs="unbounded"/>       <xs:attribute name="ccw" type="SFBool" default="true"/>       <xs:attribute name="colorPerVertex" type="SFBool" default="true"/>       <xs:attribute name="normalPerVertex" type="SFBool" default="true"/>       <xs:attribute name="solid" type="SFBool" default="true"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DComposedGeometryNode/@ccw

type	SFBool
properties	default  true
source	<xs:attribute name="ccw" type="SFBool" default="true"/>

attribute X3DComposedGeometryNode/@colorPerVertex

type	SFBool
properties	default  true
source	<xs:attribute name="colorPerVertex" type="SFBool" default="true"/>

attribute X3DComposedGeometryNode/@normalPerVertex

type	SFBool
properties	default  true
source	<xs:attribute name="normalPerVertex" type="SFBool" default="true"/>

attribute X3DComposedGeometryNode/@solid

type	SFBool
properties	default  true
source	<xs:attribute name="solid" type="SFBool" default="true"/>
