element GeoMetadata

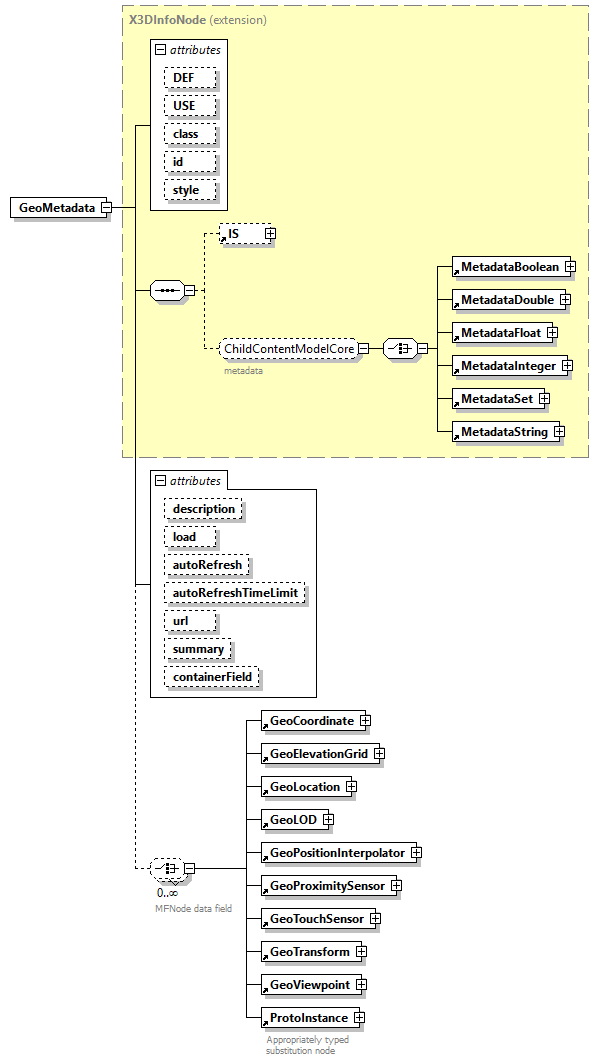

diagram
type	extension of X3DInfoNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString GeoCoordinate GeoElevationGrid GeoLocation GeoLOD GeoPositionInterpolator GeoProximitySensor GeoTouchSensor GeoTransform GeoViewpoint ProtoInstance
used by	groups  ChildContentModelGeoSpatial LoadSensorChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            load   SFBool      true      autoRefresh   derived by: SFTime      0      autoRefreshTimeLimit   derived by: SFTime      3600      url   MFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/> summary   MFString            containerField   containerFieldChoicesX3DUrlObject      children
annotation	appinfo <xs:element name="data" type="MFNode" fixed="inputOutputField" default="X3DNode"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="GeoMetadata">   <xs:annotation>     <xs:appinfo>       <xs:element name="data" type="MFNode" fixed="inputOutputField" default="X3DNode"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/geospatial.html#GeoMetadata"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DInfoNode">         <xs:choice minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>MFNode data field</xs:documentation>           </xs:annotation>           <xs:element ref="GeoCoordinate"/>           <xs:element ref="GeoElevationGrid"/>           <xs:element ref="GeoLocation"/>           <xs:element ref="GeoLOD"/>           <!-- <xs:element ref="GeoMetadata"/> excluded since does not make sense for a GeoMetadata node to pertain to another GeoMetadata node -->           <!-- <xs:element ref="GeoOrigin"/>   excluded since GeoOrigin does not have any information with associated metadata, in turn simplifying GeoOrigin logic -->           <xs:element ref="GeoPositionInterpolator"/>           <xs:element ref="GeoProximitySensor"/>           <xs:element ref="GeoTouchSensor"/>           <xs:element ref="GeoTransform"/>           <xs:element ref="GeoViewpoint"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="description" type="SFString"/>         <xs:attribute name="load" type="SFBool" default="true"/>         <xs:attribute name="autoRefresh" default="0">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="autoRefreshTimeLimit" default="3600">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="url" type="MFString">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="summary" type="MFString"/>         <xs:attribute name="containerField" type="containerFieldChoicesX3DUrlObject" default="children"/>       </xs:extension>       <!-- 'data' field is MFNode reference array to pertinent GeoSpatial nodes affected by this GeoMetadata node, empty array refers to entire scene -->       <!-- TODO when specification is revised:                 <xs:attribute name="title" type="SFString"/>                 <xs:attribute name="description" type="SFString"/>                 <xs:attribute name="coordinateSystem" type="SFString"/>                 <xs:attribute name="horizontalDatum" type="SFString"/>                 <xs:attribute name="verticalDatum" type="SFString"/>                 <xs:attribute name="ellipsoid" type="SFString"/>                 <xs:attribute name="extent" type="SFString"/>                 <xs:attribute name="resolution" type="SFString"/>                 <xs:attribute name="originator" type="SFString"/>                 <xs:attribute name="copyright" type="SFString"/>                 <xs:attribute name="date" type="SFString"/>                 <xs:attribute name="metadataFormat" type="SFString"/>                 <xs:attribute name="dataUrl" type="SFString"/>                 <xs:attribute name="dataFormat" type="SFString"/>                 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeoMetadata/@description

type	SFString
source	<xs:attribute name="description" type="SFString"/>

attribute GeoMetadata/@load

type	SFBool
properties	default  true
source	<xs:attribute name="load" type="SFBool" default="true"/>

attribute GeoMetadata/@autoRefresh

type	restriction of SFTime
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefresh" default="0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoMetadata/@autoRefreshTimeLimit

type	restriction of SFTime
properties	default  3600
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefreshTimeLimit" default="3600">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoMetadata/@url

type	MFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:attribute name="url" type="MFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GeoMetadata/@summary

type	MFString
source	<xs:attribute name="summary" type="MFString"/>

attribute GeoMetadata/@containerField

type	containerFieldChoicesX3DUrlObject
properties	default  children
facets	Kind  Value  Annotation enumeration  children appinfo parent node has abstract type X3DGroupingNode enumeration  children appinfo parent node is LoadSensor (formerly watchList in X3D3)
source	<xs:attribute name="containerField" type="containerFieldChoicesX3DUrlObject" default="children"/>
