element GeoElevationGrid

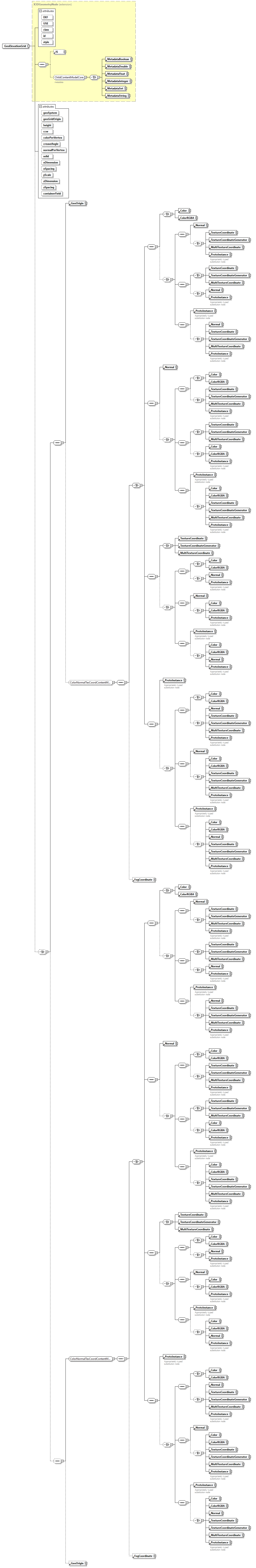

diagram
type	extension of X3DGeometryNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString GeoOrigin Color ColorRGBA Normal TextureCoordinate TextureCoordinateGenerator MultiTextureCoordinate ProtoInstance FogCoordinate
used by	element  GeoMetadata group  GeometryContentModelGeoSpatial
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 geoSystem   geoSystemType      "GD" "WE"      geoGridOrigin   SFVec3d      0 0 0      height   MFDouble      0 0      ccw   SFBool      true      colorPerVertex   SFBool      true      creaseAngle   derived by: SFDouble      0      normalPerVertex   SFBool      true      solid   SFBool      true      xDimension   derived by: SFInt32      0      xSpacing   derived by: SFDouble      1.0      yScale   derived by: SFFloat      1      zDimension   derived by: SFInt32      0      zSpacing   derived by: SFDouble      1.0      containerField   xs:NMTOKEN      geometry
annotation	appinfo <xs:attribute name="set_height" type="MFDouble" fixed="inputOnlyField"/> <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/> <xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/> <xs:element name="normal" type="SFNode" fixed="inputOutputField" default="X3DNormalNode"/> <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/> <xs:element name="texCoord" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureCoordinateNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="GeoElevationGrid">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="set_height" type="MFDouble" fixed="inputOnlyField"/>       <xs:attribute name="solid" type="SFBool" default="true" fixed="initializeOnlyField"/>       <xs:element name="color" type="SFNode" fixed="inputOutputField" default="X3DColorNode"/>       <xs:element name="normal" type="SFNode" fixed="inputOutputField" default="X3DNormalNode"/>       <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>       <xs:element name="texCoord" type="SFNode" fixed="inputOutputField" default="X3DSingleTextureCoordinateNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/geospatial.html#GeoElevationGrid"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DGeometryNode">         <xs:choice minOccurs="0">           <xs:sequence>             <xs:element ref="GeoOrigin"/>             <xs:group ref="ColorNormalTexCoordContentModel" minOccurs="0"/>           </xs:sequence>           <xs:sequence minOccurs="0">             <xs:group ref="ColorNormalTexCoordContentModel"/>             <xs:element ref="GeoOrigin" minOccurs="0"/>           </xs:sequence>         </xs:choice>         <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>         <xs:attribute name="geoGridOrigin" type="SFVec3d" default="0 0 0"/>         <xs:attribute name="height" type="MFDouble" default="0 0"/>         <xs:attribute name="ccw" type="SFBool" default="true"/>         <xs:attribute name="colorPerVertex" type="SFBool" default="true"/>         <xs:attribute name="creaseAngle" default="0">           <!-- type="SFDoubleNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFDouble">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="normalPerVertex" type="SFBool" default="true"/>         <xs:attribute name="solid" type="SFBool" default="true"/>         <xs:attribute name="xDimension" default="0">           <!-- type="SFInt32NonNegative" -->           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="xSpacing" default="1.0">           <!-- type="SFDoublePositive" -->           <xs:simpleType>             <xs:restriction base="SFDouble">               <xs:minExclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="yScale" default="1">           <!-- type="SFFloatNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="zDimension" default="0">           <!-- type="SFInt32NonNegative" -->           <xs:simpleType>             <xs:restriction base="SFInt32">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="zSpacing" default="1.0">           <!-- type="SFDoublePositive" -->           <xs:simpleType>             <xs:restriction base="SFDouble">               <xs:minExclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeoElevationGrid/@geoSystem

type	geoSystemType
properties	default  "GD" "WE"
source	<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoElevationGrid/@geoGridOrigin

type	SFVec3d
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="geoGridOrigin" type="SFVec3d" default="0 0 0"/>

attribute GeoElevationGrid/@height

type	MFDouble
properties	default  0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="height" type="MFDouble" default="0 0"/>

attribute GeoElevationGrid/@ccw

type	SFBool
properties	default  true
source	<xs:attribute name="ccw" type="SFBool" default="true"/>

attribute GeoElevationGrid/@colorPerVertex

type	SFBool
properties	default  true
source	<xs:attribute name="colorPerVertex" type="SFBool" default="true"/>

attribute GeoElevationGrid/@creaseAngle

type	restriction of SFDouble
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="creaseAngle" default="0">   <!-- type="SFDoubleNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFDouble">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoElevationGrid/@normalPerVertex

type	SFBool
properties	default  true
source	<xs:attribute name="normalPerVertex" type="SFBool" default="true"/>

attribute GeoElevationGrid/@solid

type	SFBool
properties	default  true
source	<xs:attribute name="solid" type="SFBool" default="true"/>

attribute GeoElevationGrid/@xDimension

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="xDimension" default="0">   <!-- type="SFInt32NonNegative" -->   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoElevationGrid/@xSpacing

type	restriction of SFDouble
properties	default  1.0
facets	Kind  Value  Annotation minExclusive  0
source	<xs:attribute name="xSpacing" default="1.0">   <!-- type="SFDoublePositive" -->   <xs:simpleType>     <xs:restriction base="SFDouble">       <xs:minExclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoElevationGrid/@yScale

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="yScale" default="1">   <!-- type="SFFloatNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoElevationGrid/@zDimension

type	restriction of SFInt32
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="zDimension" default="0">   <!-- type="SFInt32NonNegative" -->   <xs:simpleType>     <xs:restriction base="SFInt32">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoElevationGrid/@zSpacing

type	restriction of SFDouble
properties	default  1.0
facets	Kind  Value  Annotation minExclusive  0
source	<xs:attribute name="zSpacing" default="1.0">   <!-- type="SFDoublePositive" -->   <xs:simpleType>     <xs:restriction base="SFDouble">       <xs:minExclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoElevationGrid/@containerField

type	xs:NMTOKEN
properties	default  geometry
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
