element HAnimDisplacer

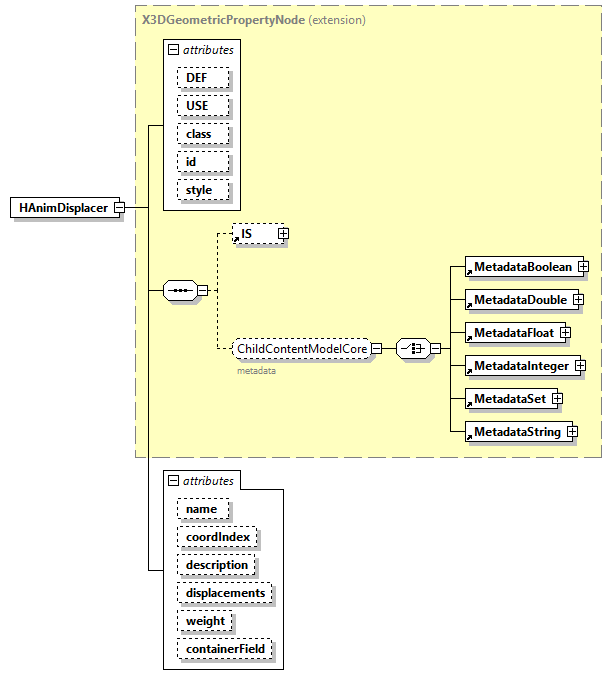

diagram
type	extension of X3DGeometricPropertyNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  HAnimJoint HAnimSegment
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 name   xs:NMTOKEN            appinfo name attribute is ordinarily required, unless this is a USE node coordIndex   MFInt32            appinfo <xs:minInclusive value="0"/> description   SFString            appinfo added in X3D version 4 displacements   MFVec3f            weight   SFFloat      0.0      containerField   xs:NMTOKEN      displacers
annotation	appinfo <xs:attribute name="coordIndex" type="MFInt32" fixed="inputOutputField"/> <xs:attribute name="name" type="hanimFeaturePointNameValues"> <!-- TODO regex pattern --> <xs:annotation> <xs:appinfo>                             HAnimSite/HAnimDisplacer name fields must append suffix _view _tip _pt based on functional purpose, thus strict hanimFeaturePointNameValues validation is turned off by default. This list is unbounded, additional enumeration values are allowed.                         </xs:appinfo> <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/> </xs:annotation> </xs:attribute> <xs:attribute name="componentName" type="componentNameChoices" fixed="HAnim"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="HAnimDisplacer">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="coordIndex" type="MFInt32" fixed="inputOutputField"/>       <xs:attribute name="name" type="hanimFeaturePointNameValues">         <!-- TODO regex pattern -->         <xs:annotation>           <xs:appinfo>                             HAnimSite/HAnimDisplacer name fields must append suffix _view _tip _pt based on functional purpose, thus strict hanimFeaturePointNameValues validation is turned off by default. This list is unbounded, additional enumeration values are allowed.                         </xs:appinfo>           <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>         </xs:annotation>       </xs:attribute>       <xs:attribute name="componentName" type="componentNameChoices" fixed="HAnim"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/hanim.html#HAnimDisplacer"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DGeometricPropertyNode">         <xs:attribute name="name" type="xs:NMTOKEN">           <xs:annotation>             <xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>             <!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->             <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>           </xs:annotation>         </xs:attribute>         <xs:attribute name="coordIndex" type="MFInt32">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="0"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="description" type="SFString">           <xs:annotation>             <xs:appinfo>added in X3D version 4</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="displacements" type="MFVec3f"/>         <xs:attribute name="weight" type="SFFloat" default="0.0"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="displacers"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute HAnimDisplacer/@name

type	xs:NMTOKEN
annotation	appinfo name attribute is ordinarily required, unless this is a USE node
source	<xs:attribute name="name" type="xs:NMTOKEN">   <xs:annotation>     <xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>     <!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->     <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>   </xs:annotation> </xs:attribute>

attribute HAnimDisplacer/@coordIndex

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="0"/>
source	<xs:attribute name="coordIndex" type="MFInt32">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="0"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute HAnimDisplacer/@description

type	SFString
annotation	appinfo added in X3D version 4
source	<xs:attribute name="description" type="SFString">   <xs:annotation>     <xs:appinfo>added in X3D version 4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute HAnimDisplacer/@displacements

type	MFVec3f
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="displacements" type="MFVec3f"/>

attribute HAnimDisplacer/@weight

type	SFFloat
properties	default  0.0
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="weight" type="SFFloat" default="0.0"/>

attribute HAnimDisplacer/@containerField

type	xs:NMTOKEN
properties	default  displacers
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="displacers"/>
