element HAnimSegment

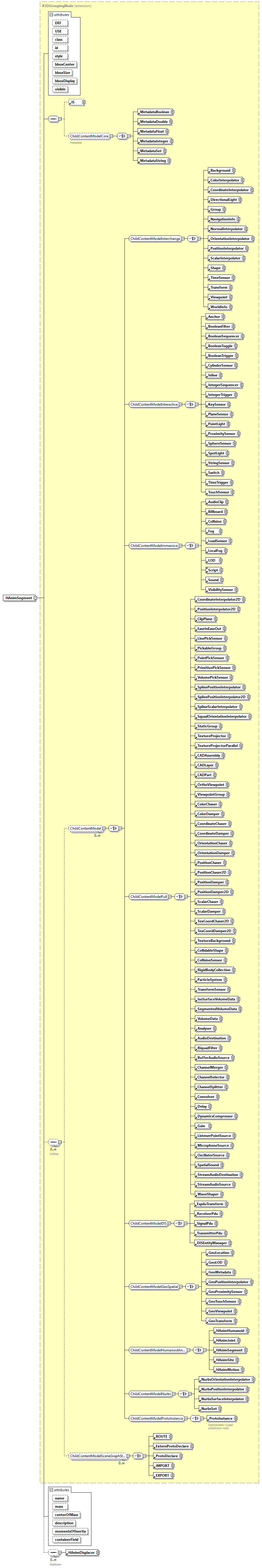

diagram
type	extension of X3DGroupingNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LocalFog LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D ClipPlane EaseInEaseOut LinePickSensor PickableGroup PointPickSensor PrimitivePickSensor VolumePickSensor SplinePositionInterpolator SplinePositionInterpolator2D SplineScalarInterpolator SquadOrientationInterpolator StaticGroup TextureProjector TextureProjectorParallel CADAssembly CADLayer CADPart OrthoViewpoint ViewpointGroup ColorChaser ColorDamper CoordinateChaser CoordinateDamper OrientationChaser OrientationDamper PositionChaser PositionChaser2D PositionDamper PositionDamper2D ScalarChaser ScalarDamper TexCoordChaser2D TexCoordDamper2D TextureBackground CollidableShape CollisionSensor RigidBodyCollection ParticleSystem TransformSensor IsoSurfaceVolumeData SegmentedVolumeData VolumeData Analyser AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource OscillatorSource SpatialSound StreamAudioDestination StreamAudioSource WaveShaper EspduTransform ReceiverPdu SignalPdu TransmitterPdu DISEntityManager GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoProximitySensor GeoTouchSensor GeoViewpoint GeoTransform HAnimHumanoid HAnimJoint HAnimSegment HAnimSite HAnimMotion NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT HAnimDisplacer
used by	elements  HAnimHumanoid HAnimJoint TransformSensor group  ChildContentModelHumanoidAnimation
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      bboxDisplay   SFBool      false      visible   SFBool      true      name   xs:NMTOKEN            appinfo name attribute is ordinarily required, unless this is a USE node mass   derived by: SFFloat      0      centerOfMass   SFVec3f      0 0 0      description   SFString            appinfo added in X3D version 4 momentsOfInertia   MFFloat      0 0 0 0 0 0 0 0 0      appinfo <xs:minInclusive value="0"/> containerField   containerFieldChoicesHAnimSegment      children
annotation	appinfo <xs:attribute name="name" type="hanimSegmentNameValues"/> <xs:element name="coord" type="SFNode" fixed="inputOutputField" default="Coordinate|CoordinateDouble"/> <xs:element name="displacers" type="MFNode" fixed="inputOutputField" default="HAnimDisplacer"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="HAnim"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="HAnimSegment">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="name" type="hanimSegmentNameValues"/>       <xs:element name="coord" type="SFNode" fixed="inputOutputField" default="Coordinate|CoordinateDouble"/>       <xs:element name="displacers" type="MFNode" fixed="inputOutputField" default="HAnimDisplacer"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="HAnim"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/hanim.html#HAnimSegment"/>     <!-- HAnim specification https://www.web3d.org/documents/specifications/19774/V2.0/Architecture/ObjectInterfaces.html#Segment -->   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DGroupingNode">         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>displacers</xs:documentation>           </xs:annotation>           <!-- TODO add child Coordinate SFNode? -->           <xs:element ref="HAnimDisplacer"/>         </xs:sequence>         <xs:attribute name="name" type="xs:NMTOKEN">           <xs:annotation>             <xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>             <!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->             <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>           </xs:annotation>         </xs:attribute>         <xs:attribute name="mass" default="0">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="centerOfMass" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="description" type="SFString">           <xs:annotation>             <xs:appinfo>added in X3D version 4</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="momentsOfInertia" type="MFFloat" default="0 0 0 0 0 0 0 0 0">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="0"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="containerFieldChoicesHAnimSegment" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute HAnimSegment/@name

type	xs:NMTOKEN
annotation	appinfo name attribute is ordinarily required, unless this is a USE node
source	<xs:attribute name="name" type="xs:NMTOKEN">   <xs:annotation>     <xs:appinfo>name attribute is ordinarily required, unless this is a USE node</xs:appinfo>     <!-- Design note: cannot REQUIRE @name field or else USE nodes incorrectly fail to validate -->     <xs:documentation source="https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#NameTyping"/>   </xs:annotation> </xs:attribute>

attribute HAnimSegment/@mass

type	restriction of SFFloat
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="mass" default="0">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute HAnimSegment/@centerOfMass

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="centerOfMass" type="SFVec3f" default="0 0 0"/>

attribute HAnimSegment/@description

type	SFString
annotation	appinfo added in X3D version 4
source	<xs:attribute name="description" type="SFString">   <xs:annotation>     <xs:appinfo>added in X3D version 4</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute HAnimSegment/@momentsOfInertia

type	MFFloat
properties	default  0 0 0 0 0 0 0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="0"/>
source	<xs:attribute name="momentsOfInertia" type="MFFloat" default="0 0 0 0 0 0 0 0 0">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="0"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute HAnimSegment/@containerField

type	containerFieldChoicesHAnimSegment
properties	default  children
facets	Kind  Value  Annotation enumeration  children appinfo parent node is HAnimJoint enumeration  segments appinfo parent node is HAnimHumanoid, typically as a USE node
source	<xs:attribute name="containerField" type="containerFieldChoicesHAnimSegment" default="children"/>
