element ImageCubeMapTexture

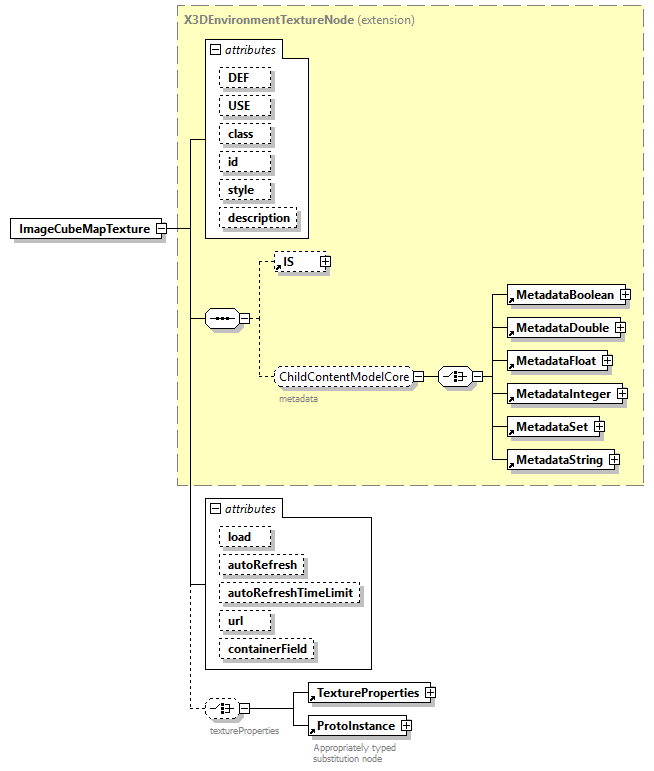

diagram
type	extension of X3DEnvironmentTextureNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString TextureProperties ProtoInstance
used by	element  MultiTexture groups  AppearanceChildContentModelNoProtoInstance LoadSensorChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            load   SFBool      true      autoRefresh   derived by: SFTime      0      autoRefreshTimeLimit   derived by: SFTime      3600      url   MFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/> containerField   containerFieldChoicesX3DTexture2DNode      texture
annotation	appinfo <xs:element name="textureProperties" type="SFNode" default="TextureProperties" fixed="initializeOnlyField"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="CubeMapTexturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="ImageCubeMapTexture">   <xs:annotation>     <xs:appinfo>       <xs:element name="textureProperties" type="SFNode" default="TextureProperties" fixed="initializeOnlyField"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="CubeMapTexturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/environmentalTexturing.html#ImageCubeMapTexture"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DEnvironmentTextureNode">         <xs:choice minOccurs="0" maxOccurs="1">           <xs:annotation>             <xs:documentation>textureProperties</xs:documentation>           </xs:annotation>           <xs:element ref="TextureProperties"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="load" type="SFBool" default="true"/>         <xs:attribute name="autoRefresh" default="0">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="autoRefreshTimeLimit" default="3600">           <!-- type="SFTimeNonNegative" -->           <xs:simpleType>             <xs:restriction base="SFTime">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="url" type="MFString">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute ImageCubeMapTexture/@load

type	SFBool
properties	default  true
source	<xs:attribute name="load" type="SFBool" default="true"/>

attribute ImageCubeMapTexture/@autoRefresh

type	restriction of SFTime
properties	default  0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefresh" default="0">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute ImageCubeMapTexture/@autoRefreshTimeLimit

type	restriction of SFTime
properties	default  3600
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="autoRefreshTimeLimit" default="3600">   <!-- type="SFTimeNonNegative" -->   <xs:simpleType>     <xs:restriction base="SFTime">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute ImageCubeMapTexture/@url

type	MFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:attribute name="url" type="MFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ImageCubeMapTexture/@containerField

type	containerFieldChoicesX3DTexture2DNode
properties	default  texture
facets	Kind  Value  Annotation enumeration  texture appinfo default, parent node is Appearance enumeration  source appinfo parent node is Sound node: legacy X3D3 SFNode source is allowed content model (AudioClip or MovieTexture only), prefer X3D4 MFNode children. enumeration  backTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  bottomTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  frontTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  leftTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  rightTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  topTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  children appinfo parent node is LoadSensor (formerly watchList in X3D3) enumeration  baseTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial enumeration  emissiveTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial or UnlitMaterial enumeration  metallicRoughnessTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial enumeration  normalTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial or UnlitMaterial enumeration  occlusionTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial
source	<xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>
