element MultiTexture

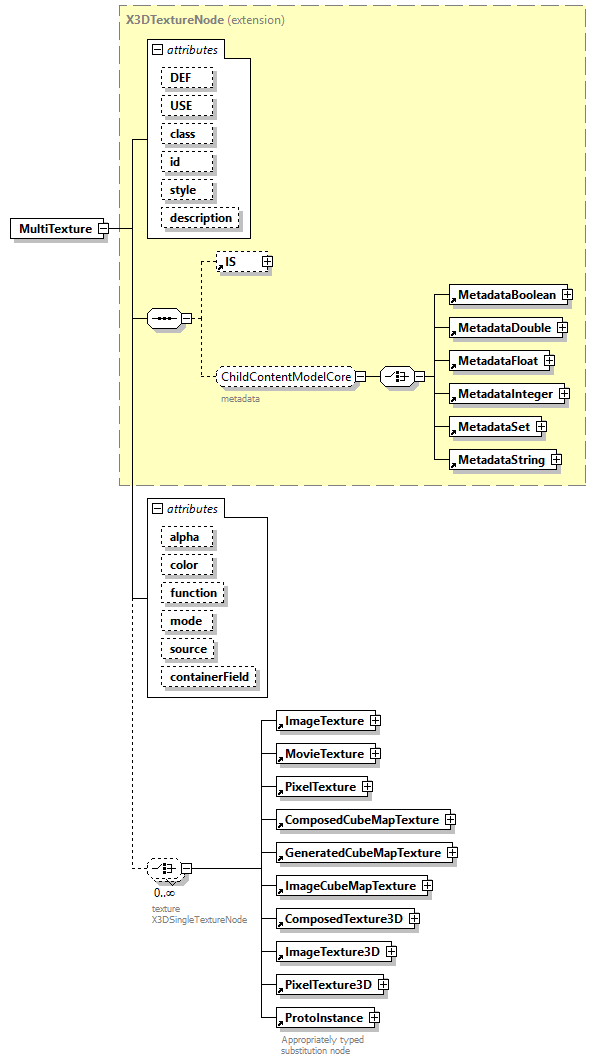

diagram
type	extension of X3DTextureNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ImageTexture MovieTexture PixelTexture ComposedCubeMapTexture GeneratedCubeMapTexture ImageCubeMapTexture ComposedTexture3D ImageTexture3D PixelTexture3D ProtoInstance
used by	groups  AppearanceChildContentModelNoProtoInstance TextureBackgroundChildContentModel TextureContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            alpha   derived by: SFFloat      1      color   SFColor      1 1 1      function   MFString            mode   MFString            source   MFString            containerField   containerFieldChoicesX3DTexture2DNode      texture
annotation	appinfo <xs:attribute name="function" type="multiTextureFunctionValues"> <xs:annotation> <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="mode" type="multiTextureModeValues"> <xs:annotation> <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="source" type="multiTextureSourceValues"> <xs:annotation> <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation> </xs:annotation> </xs:attribute> <xs:element name="texture" type="MFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="MultiTexture">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="function" type="multiTextureFunctionValues">         <xs:annotation>           <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attribute name="mode" type="multiTextureModeValues">         <xs:annotation>           <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attribute name="source" type="multiTextureSourceValues">         <xs:annotation>           <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:element name="texture" type="MFNode" fixed="inputOutputField" default="X3DSingleTextureNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/texturing.html#MultiTexture"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DTextureNode">         <xs:choice minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>texture X3DSingleTextureNode</xs:documentation>           </xs:annotation>           <xs:element ref="ImageTexture"/>           <xs:element ref="MovieTexture"/>           <xs:element ref="PixelTexture"/>           <xs:element ref="ComposedCubeMapTexture"/>           <xs:element ref="GeneratedCubeMapTexture"/>           <xs:element ref="ImageCubeMapTexture"/>           <xs:element ref="ComposedTexture3D"/>           <xs:element ref="ImageTexture3D"/>           <xs:element ref="PixelTexture3D"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="alpha" default="1">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="1"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="color" type="SFColor" default="1 1 1"/>         <xs:attribute name="function" type="MFString"/>         <xs:attribute name="mode" type="MFString"/>         <xs:attribute name="source" type="MFString"/>         <xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute MultiTexture/@alpha

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="alpha" default="1">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MultiTexture/@color

type	SFColor
properties	default  1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="color" type="SFColor" default="1 1 1"/>

attribute MultiTexture/@function

type	MFString
source	<xs:attribute name="function" type="MFString"/>

attribute MultiTexture/@mode

type	MFString
source	<xs:attribute name="mode" type="MFString"/>

attribute MultiTexture/@source

type	MFString
source	<xs:attribute name="source" type="MFString"/>

attribute MultiTexture/@containerField

type	containerFieldChoicesX3DTexture2DNode
properties	default  texture
facets	Kind  Value  Annotation enumeration  texture appinfo default, parent node is Appearance enumeration  source appinfo parent node is Sound node: legacy X3D3 SFNode source is allowed content model (AudioClip or MovieTexture only), prefer X3D4 MFNode children. enumeration  backTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  bottomTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  frontTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  leftTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  rightTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  topTexture appinfo parent node is TextureBackground or ComposedCubeMapTexture enumeration  children appinfo parent node is LoadSensor (formerly watchList in X3D3) enumeration  baseTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial enumeration  emissiveTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial or UnlitMaterial enumeration  metallicRoughnessTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial enumeration  normalTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial or UnlitMaterial enumeration  occlusionTexture appinfo X3D4 Physically Based Rendering (PBR) capability, parent node is PhysicalMaterial
source	<xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>
