complexType X3DNBodyCollidableNode

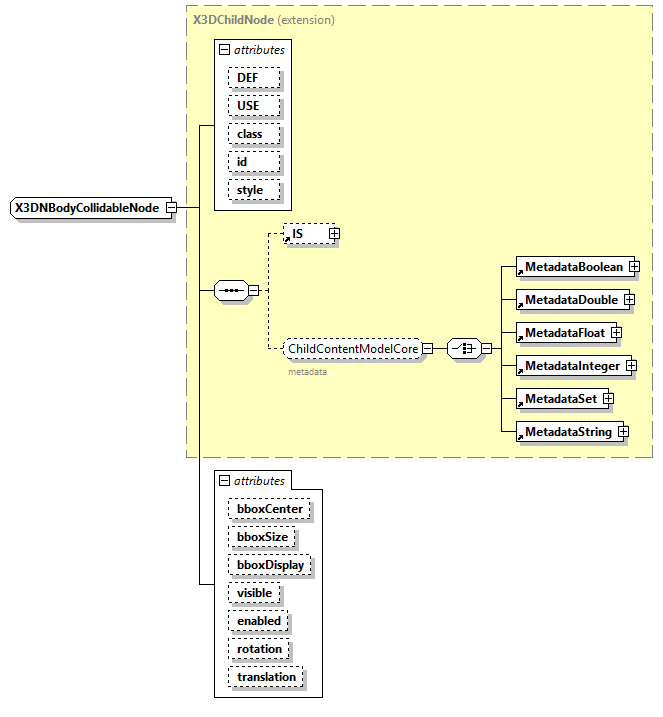

diagram
type	extension of X3DChildNode
properties	base  X3DChildNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  CollidableOffset CollidableShape
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      bboxDisplay   SFBool      false      visible   SFBool      true      enabled   SFBool      true      rotation   SFRotation      0 0 1 0      translation   SFVec3f      0 0 0
annotation	appinfo <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 The X3DNBodyCollidableNode abstract node type represents objects that act as the interface between the                 rigid body physics, collision geometry proxy, and renderable objects in the scene graph hierarchy.
source	<xs:complexType name="X3DNBodyCollidableNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="RigidBodyPhysics"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 The X3DNBodyCollidableNode abstract node type represents objects that act as the interface between the                 rigid body physics, collision geometry proxy, and renderable objects in the scene graph hierarchy.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/rigidBodyPhysics.html#X3DNBodyCollidableNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DChildNode">       <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>       <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>       <xs:attribute name="bboxDisplay" type="SFBool" default="false"/>       <xs:attribute name="visible" type="SFBool" default="true"/>       <xs:attribute name="enabled" type="SFBool" default="true"/>       <xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>       <xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>     </xs:extension>     <!--             <xs:attribute name="containerField" default="children">                 <xs:simpleType>                         <xs:restriction base="xs:NMTOKEN">                                 <xs:enumeration value="children"/>                                 <xs:enumeration value="collidable"/>                                 <xs:enumeration value="collider"/>                                 <xs:enumeration value="geometry1"/>                                 <xs:enumeration value="geometry2"/>                                 <xs:enumeration value="intersections"/>                         </xs:restriction>                 </xs:simpleType>             </xs:attribute>             -->   </xs:complexContent> </xs:complexType>

attribute X3DNBodyCollidableNode/@bboxCenter

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute X3DNBodyCollidableNode/@bboxSize

type	bboxSizeType
properties	default  -1 -1 -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source	<xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

attribute X3DNBodyCollidableNode/@bboxDisplay

type	SFBool
properties	default  false
source	<xs:attribute name="bboxDisplay" type="SFBool" default="false"/>

attribute X3DNBodyCollidableNode/@visible

type	SFBool
properties	default  true
source	<xs:attribute name="visible" type="SFBool" default="true"/>

attribute X3DNBodyCollidableNode/@enabled

type	SFBool
properties	default  true
source	<xs:attribute name="enabled" type="SFBool" default="true"/>

attribute X3DNBodyCollidableNode/@rotation

type	SFRotation
properties	default  0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="rotation" type="SFRotation" default="0 0 1 0"/>

attribute X3DNBodyCollidableNode/@translation

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="translation" type="SFVec3f" default="0 0 0"/>
