complexType X3DViewpointNode

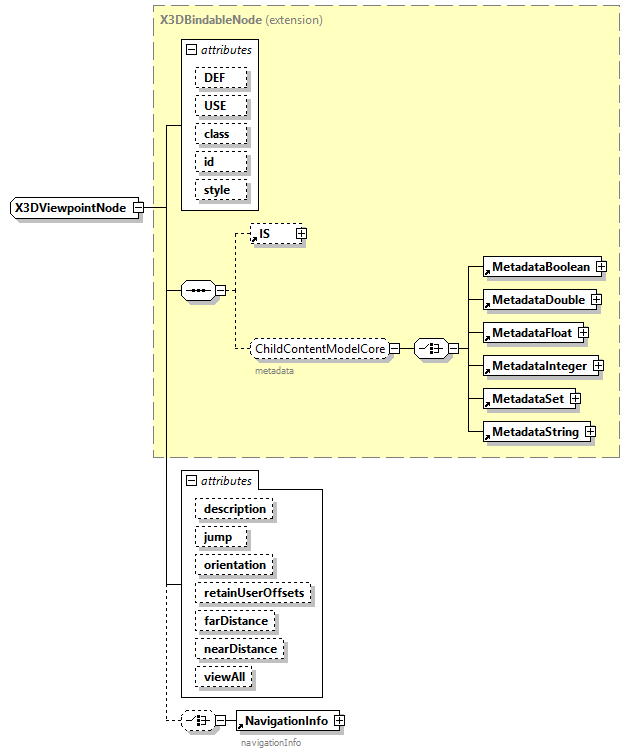

diagram
type	extension of X3DBindableNode
properties	base  X3DBindableNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString NavigationInfo
used by	elements  GeoViewpoint OrthoViewpoint Viewpoint
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 description   SFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> jump   SFBool      true      orientation   SFRotation      0 0 1 0      retainUserOffsets   SFBool      false      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> farDistance   SFFloat      -1      nearDistance   SFFloat      -1      viewAll   SFBool      false
annotation	appinfo <xs:attribute name="navigationInfo" type="SFNode" fixed="inputOutputField" default="NavigationInfo"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Node type X3DViewpointNode defines a specific location in the local coordinate system from which the user may view the scene,                 and also defines a viewpoint binding stack.
source	<xs:complexType name="X3DViewpointNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="navigationInfo" type="SFNode" fixed="inputOutputField" default="NavigationInfo"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Node type X3DViewpointNode defines a specific location in the local coordinate system from which the user may view the scene,                 and also defines a viewpoint binding stack.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/navigation.html#X3DViewpointNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DBindableNode">       <xs:choice minOccurs="0" maxOccurs="1">         <xs:element ref="NavigationInfo">           <xs:annotation>             <xs:documentation>navigationInfo</xs:documentation>           </xs:annotation>         </xs:element>       </xs:choice>       <xs:attribute name="description" type="SFString">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="jump" type="SFBool" default="true"/>       <xs:attribute name="orientation" type="SFRotation" default="0 0 1 0"/>       <xs:attribute name="retainUserOffsets" type="SFBool" default="false">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="farDistance" type="SFFloat" default="-1"/>       <xs:attribute name="nearDistance" type="SFFloat" default="-1"/>       <xs:attribute name="viewAll" type="SFBool" default="false"/>     </xs:extension>     <!-- centerOfRotation and position fields are specified separately by Viewpoint, OrthoViewpoint and GeoViewpoint nodes since type is SFVec3f, SFVec3f and SFVec3d respectively -->   </xs:complexContent> </xs:complexType>

attribute X3DViewpointNode/@description

type	SFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="description" type="SFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute X3DViewpointNode/@jump

type	SFBool
properties	default  true
source	<xs:attribute name="jump" type="SFBool" default="true"/>

attribute X3DViewpointNode/@orientation

type	SFRotation
properties	default  0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="orientation" type="SFRotation" default="0 0 1 0"/>

attribute X3DViewpointNode/@retainUserOffsets

type	SFBool
properties	default  false
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="retainUserOffsets" type="SFBool" default="false">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Navigation"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute X3DViewpointNode/@farDistance

type	SFFloat
properties	default  -1
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="farDistance" type="SFFloat" default="-1"/>

attribute X3DViewpointNode/@nearDistance

type	SFFloat
properties	default  -1
facets	Kind  Value  Annotation pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="nearDistance" type="SFFloat" default="-1"/>

attribute X3DViewpointNode/@viewAll

type	SFBool
properties	default  false
source	<xs:attribute name="viewAll" type="SFBool" default="false"/>
