complexType DependentLocalityType

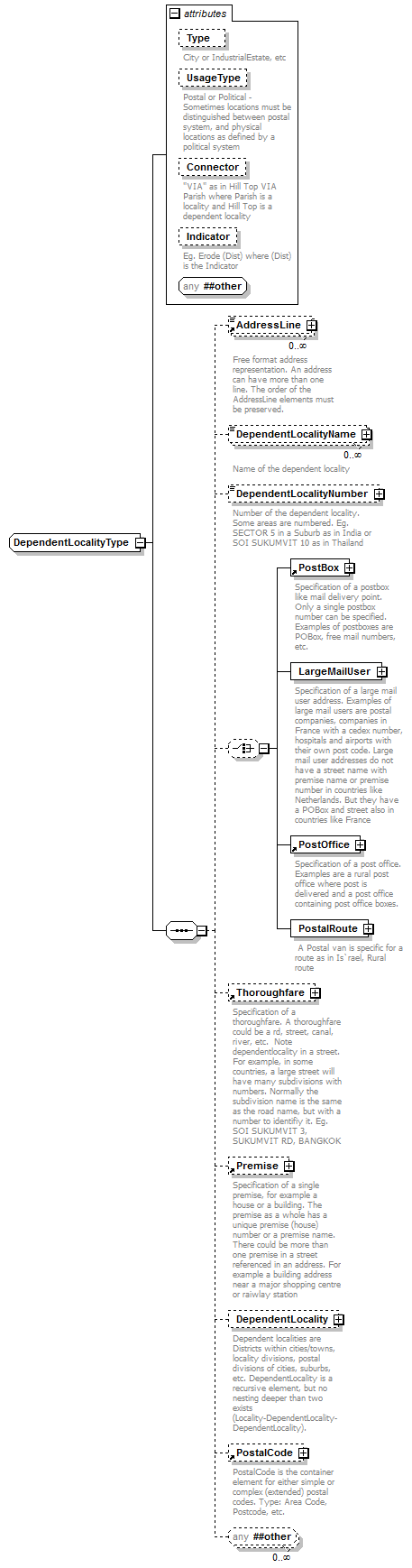

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
children	AddressLine DependentLocalityName DependentLocalityNumber PostBox LargeMailUser PostOffice PostalRoute Thoroughfare Premise DependentLocality PostalCode
used by	elements  Locality/DependentLocality Thoroughfare/DependentLocality DependentLocalityType/DependentLocality
attributes	Name   Type   Use   Default   Fixed   Annotation Type               documentation City or IndustrialEstate, etc UsageType               documentation Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system Connector               documentation "VIA" as in Hill Top VIA Parish where Parish is a locality and Hill Top is a dependent locality Indicator               documentation Eg. Erode (Dist) where (Dist) is the Indicator
source	<complexType name="DependentLocalityType">   <sequence>     <element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>     <element name="DependentLocalityName" minOccurs="0" maxOccurs="unbounded">       <annotation>         <documentation>Name of the dependent locality</documentation>       </annotation>       <complexType mixed="true">         <attribute name="Type"/>         <attributeGroup ref="grPostal"/>         <anyAttribute namespace="##other"/>       </complexType>     </element>     <element name="DependentLocalityNumber" minOccurs="0">       <annotation>         <documentation>Number of the dependent locality. Some areas are numbered. Eg. SECTOR 5 in a Suburb as in India or SOI SUKUMVIT 10 as in Thailand</documentation>       </annotation>       <complexType mixed="true">         <attribute name="NameNumberOccurrence">           <annotation>             <documentation>Eg. SECTOR occurs before 5 in SECTOR 5</documentation>           </annotation>           <simpleType>             <restriction base="xs:NMTOKEN">               <enumeration value="Before"/>               <enumeration value="After"/>             </restriction>           </simpleType>         </attribute>         <attributeGroup ref="grPostal"/>         <anyAttribute namespace="##other"/>       </complexType>     </element>     <choice minOccurs="0">       <element ref="PostBox"/>       <element name="LargeMailUser" type="LargeMailUserType">         <annotation>           <documentation>Specification of a large mail user address. Examples of large mail users are postal companies, companies in France with a cedex number, hospitals and airports with their own post code. Large mail user addresses do not have a street name with premise name or premise number in countries like Netherlands. But they have a POBox and street also in countries like France</documentation>         </annotation>       </element>       <element ref="PostOffice"/>       <element name="PostalRoute" type="PostalRouteType">         <annotation>           <documentation> A Postal van is specific for a route as in Is`rael, Rural route</documentation>         </annotation>       </element>     </choice>     <element ref="Thoroughfare" minOccurs="0"/>     <element ref="Premise" minOccurs="0"/>     <element name="DependentLocality" type="DependentLocalityType" minOccurs="0">       <annotation>         <documentation>Dependent localities are Districts within cities/towns, locality divisions, postal divisions of cities, suburbs, etc. DependentLocality is a recursive element, but no nesting deeper than two exists (Locality-DependentLocality-DependentLocality).</documentation>       </annotation>     </element>     <element ref="PostalCode" minOccurs="0"/>     <any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>   </sequence>   <attribute name="Type">     <annotation>       <documentation>City or IndustrialEstate, etc</documentation>     </annotation>   </attribute>   <attribute name="UsageType">     <annotation>       <documentation>Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system</documentation>     </annotation>   </attribute>   <attribute name="Connector">     <annotation>       <documentation>"VIA" as in Hill Top VIA Parish where Parish is a locality and Hill Top is a dependent locality</documentation>     </annotation>   </attribute>   <attribute name="Indicator">     <annotation>       <documentation>Eg. Erode (Dist) where (Dist) is the Indicator</documentation>     </annotation>   </attribute>   <anyAttribute namespace="##other"/> </complexType>

attribute DependentLocalityType/@Type

annotation	documentation City or IndustrialEstate, etc
source	<attribute name="Type">   <annotation>     <documentation>City or IndustrialEstate, etc</documentation>   </annotation> </attribute>

attribute DependentLocalityType/@UsageType

annotation	documentation Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system
source	<attribute name="UsageType">   <annotation>     <documentation>Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system</documentation>   </annotation> </attribute>

attribute DependentLocalityType/@Connector

annotation	documentation "VIA" as in Hill Top VIA Parish where Parish is a locality and Hill Top is a dependent locality
source	<attribute name="Connector">   <annotation>     <documentation>"VIA" as in Hill Top VIA Parish where Parish is a locality and Hill Top is a dependent locality</documentation>   </annotation> </attribute>

attribute DependentLocalityType/@Indicator

annotation	documentation Eg. Erode (Dist) where (Dist) is the Indicator
source	<attribute name="Indicator">   <annotation>     <documentation>Eg. Erode (Dist) where (Dist) is the Indicator</documentation>   </annotation> </attribute>

element DependentLocalityType/DependentLocalityName

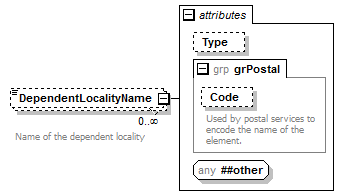

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  unbounded content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation Type               Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Name of the dependent locality
source	<element name="DependentLocalityName" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Name of the dependent locality</documentation>   </annotation>   <complexType mixed="true">     <attribute name="Type"/>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute DependentLocalityType/DependentLocalityName/@Type

source

<attribute name="Type"/>

element DependentLocalityType/DependentLocalityNumber

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  1 content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation NameNumberOccurrence   derived by: NMTOKEN            documentation Eg. SECTOR occurs before 5 in SECTOR 5 Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Number of the dependent locality. Some areas are numbered. Eg. SECTOR 5 in a Suburb as in India or SOI SUKUMVIT 10 as in Thailand
source	<element name="DependentLocalityNumber" minOccurs="0">   <annotation>     <documentation>Number of the dependent locality. Some areas are numbered. Eg. SECTOR 5 in a Suburb as in India or SOI SUKUMVIT 10 as in Thailand</documentation>   </annotation>   <complexType mixed="true">     <attribute name="NameNumberOccurrence">       <annotation>         <documentation>Eg. SECTOR occurs before 5 in SECTOR 5</documentation>       </annotation>       <simpleType>         <restriction base="xs:NMTOKEN">           <enumeration value="Before"/>           <enumeration value="After"/>         </restriction>       </simpleType>     </attribute>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute DependentLocalityType/DependentLocalityNumber/@NameNumberOccurrence

type	restriction of NMTOKEN
facets	Kind  Value  Annotation enumeration  Before enumeration  After
annotation	documentation Eg. SECTOR occurs before 5 in SECTOR 5
source	<attribute name="NameNumberOccurrence">   <annotation>     <documentation>Eg. SECTOR occurs before 5 in SECTOR 5</documentation>   </annotation>   <simpleType>     <restriction base="xs:NMTOKEN">       <enumeration value="Before"/>       <enumeration value="After"/>     </restriction>   </simpleType> </attribute>

element DependentLocalityType/LargeMailUser

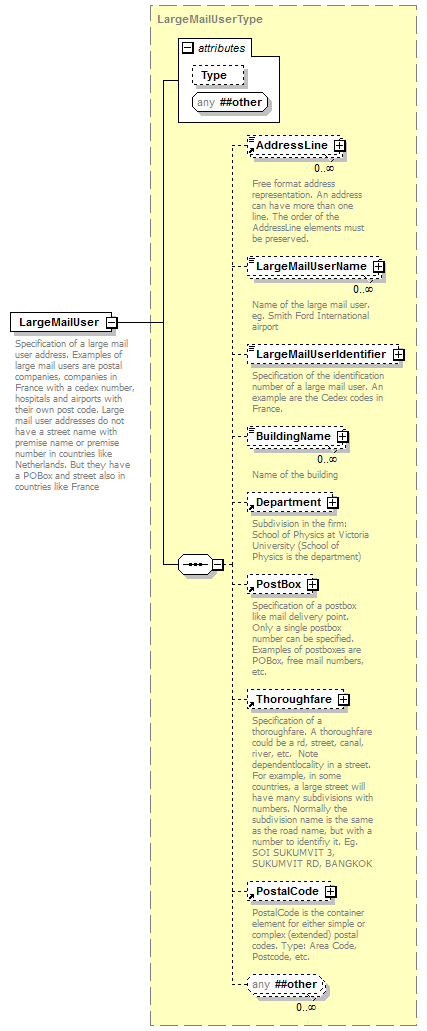

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
type	LargeMailUserType
properties	content  complex
children	AddressLine LargeMailUserName LargeMailUserIdentifier BuildingName Department PostBox Thoroughfare PostalCode
attributes	Name   Type   Use   Default   Fixed   Annotation Type   string
annotation	documentation Specification of a large mail user address. Examples of large mail users are postal companies, companies in France with a cedex number, hospitals and airports with their own post code. Large mail user addresses do not have a street name with premise name or premise number in countries like Netherlands. But they have a POBox and street also in countries like France
source	<element name="LargeMailUser" type="LargeMailUserType">   <annotation>     <documentation>Specification of a large mail user address. Examples of large mail users are postal companies, companies in France with a cedex number, hospitals and airports with their own post code. Large mail user addresses do not have a street name with premise name or premise number in countries like Netherlands. But they have a POBox and street also in countries like France</documentation>   </annotation> </element>

element DependentLocalityType/PostalRoute

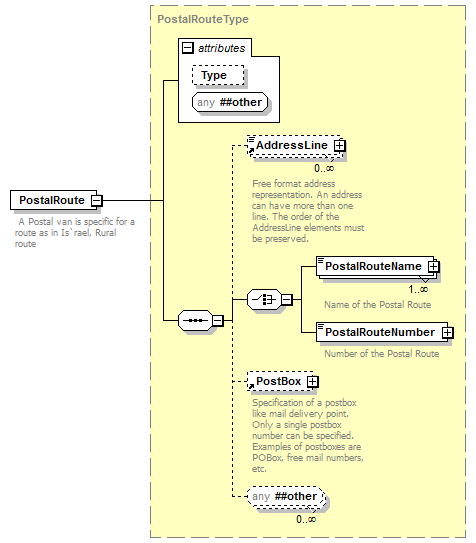

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
type	PostalRouteType
properties	content  complex
children	AddressLine PostalRouteName PostalRouteNumber PostBox
attributes	Name   Type   Use   Default   Fixed   Annotation Type
annotation	documentation A Postal van is specific for a route as in Is`rael, Rural route
source	<element name="PostalRoute" type="PostalRouteType">   <annotation>     <documentation> A Postal van is specific for a route as in Is`rael, Rural route</documentation>   </annotation> </element>

element DependentLocalityType/DependentLocality

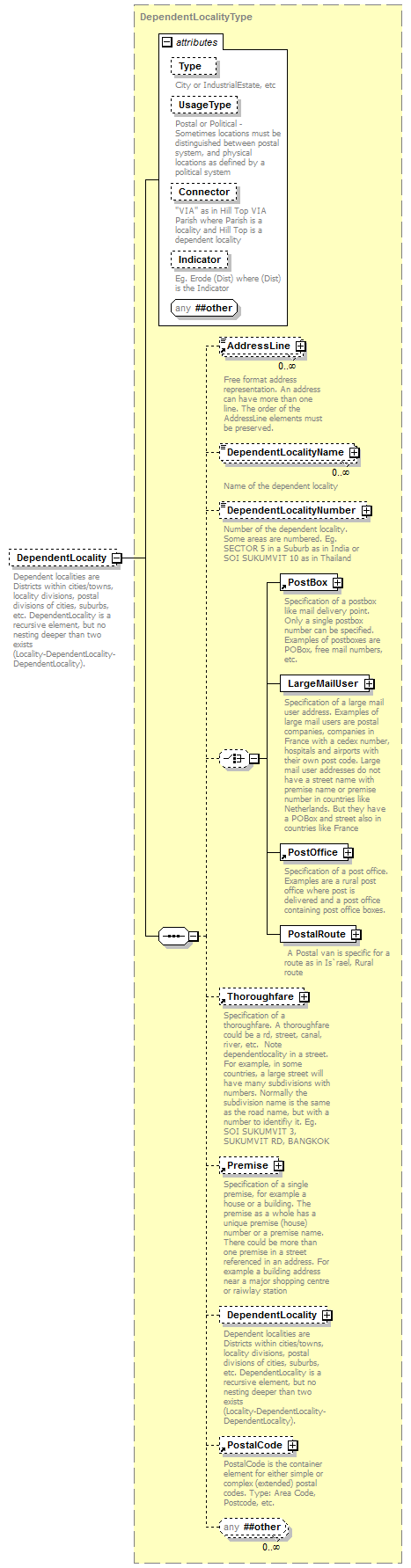

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
type	DependentLocalityType
properties	minOcc  0 maxOcc  1 content  complex
children	AddressLine DependentLocalityName DependentLocalityNumber PostBox LargeMailUser PostOffice PostalRoute Thoroughfare Premise DependentLocality PostalCode
attributes	Name   Type   Use   Default   Fixed   Annotation Type               documentation City or IndustrialEstate, etc UsageType               documentation Postal or Political - Sometimes locations must be distinguished between postal system, and physical locations as defined by a political system Connector               documentation "VIA" as in Hill Top VIA Parish where Parish is a locality and Hill Top is a dependent locality Indicator               documentation Eg. Erode (Dist) where (Dist) is the Indicator
annotation	documentation Dependent localities are Districts within cities/towns, locality divisions, postal divisions of cities, suburbs, etc. DependentLocality is a recursive element, but no nesting deeper than two exists (Locality-DependentLocality-DependentLocality).
source	<element name="DependentLocality" type="DependentLocalityType" minOccurs="0">   <annotation>     <documentation>Dependent localities are Districts within cities/towns, locality divisions, postal divisions of cities, suburbs, etc. DependentLocality is a recursive element, but no nesting deeper than two exists (Locality-DependentLocality-DependentLocality).</documentation>   </annotation> </element>
