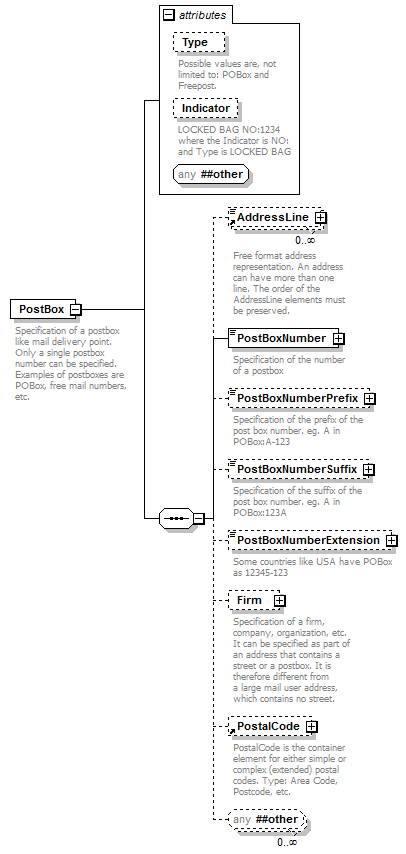

element PostBox

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	content  complex
children	AddressLine PostBoxNumber PostBoxNumberPrefix PostBoxNumberSuffix PostBoxNumberExtension Firm PostalCode
used by	elements  Locality PostOffice complexTypes  DependentLocalityType LargeMailUserType PostalRouteType
attributes	Name   Type   Use   Default   Fixed   Annotation Type               documentation Possible values are, not limited to: POBox and Freepost. Indicator               documentation LOCKED BAG NO:1234 where the Indicator is NO: and Type is LOCKED BAG
annotation	documentation Specification of a postbox like mail delivery point. Only a single postbox number can be specified. Examples of postboxes are POBox, free mail numbers, etc.
source	<element name="PostBox">   <annotation>     <documentation>Specification of a postbox like mail delivery point. Only a single postbox number can be specified. Examples of postboxes are POBox, free mail numbers, etc.</documentation>   </annotation>   <complexType>     <sequence>       <element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>       <element name="PostBoxNumber">         <annotation>           <documentation>Specification of the number of a postbox</documentation>         </annotation>         <complexType mixed="true">           <attributeGroup ref="grPostal"/>           <anyAttribute namespace="##other"/>         </complexType>       </element>       <element name="PostBoxNumberPrefix" minOccurs="0">         <annotation>           <documentation>Specification of the prefix of the post box number. eg. A in POBox:A-123</documentation>         </annotation>         <complexType mixed="true">           <attribute name="NumberPrefixSeparator">             <annotation>               <documentation>A-12 where 12 is number and A is prefix and "-" is the separator</documentation>             </annotation>           </attribute>           <attributeGroup ref="grPostal"/>           <anyAttribute namespace="##other"/>         </complexType>       </element>       <element name="PostBoxNumberSuffix" minOccurs="0">         <annotation>           <documentation>Specification of the suffix of the post box number. eg. A in POBox:123A</documentation>         </annotation>         <complexType mixed="true">           <attribute name="NumberSuffixSeparator">             <annotation>               <documentation>12-A where 12 is number and A is suffix and "-" is the separator</documentation>             </annotation>           </attribute>           <attributeGroup ref="grPostal"/>           <anyAttribute namespace="##other"/>         </complexType>       </element>       <element name="PostBoxNumberExtension" minOccurs="0">         <annotation>           <documentation>Some countries like USA have POBox as 12345-123</documentation>         </annotation>         <complexType mixed="true">           <attribute name="NumberExtensionSeparator">             <annotation>               <documentation>"-" is the NumberExtensionSeparator in POBOX:12345-123</documentation>             </annotation>           </attribute>           <anyAttribute namespace="##other"/>         </complexType>       </element>       <element name="Firm" type="FirmType" minOccurs="0">         <annotation>           <documentation>Specification of a firm, company, organization, etc. It can be specified as part of an address that contains a street or a postbox. It is therefore different from a large mail user address, which contains no street.</documentation>         </annotation>       </element>       <element ref="PostalCode" minOccurs="0"/>       <any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>     </sequence>     <attribute name="Type">       <annotation>         <documentation>Possible values are, not limited to: POBox and Freepost.</documentation>       </annotation>     </attribute>     <attribute name="Indicator">       <annotation>         <documentation>LOCKED BAG NO:1234 where the Indicator is NO: and Type is LOCKED BAG</documentation>       </annotation>     </attribute>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PostBox/@Type

annotation	documentation Possible values are, not limited to: POBox and Freepost.
source	<attribute name="Type">   <annotation>     <documentation>Possible values are, not limited to: POBox and Freepost.</documentation>   </annotation> </attribute>

attribute PostBox/@Indicator

annotation	documentation LOCKED BAG NO:1234 where the Indicator is NO: and Type is LOCKED BAG
source	<attribute name="Indicator">   <annotation>     <documentation>LOCKED BAG NO:1234 where the Indicator is NO: and Type is LOCKED BAG</documentation>   </annotation> </attribute>

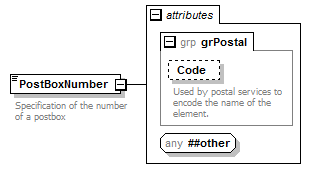

element PostBox/PostBoxNumber

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Specification of the number of a postbox
source	<element name="PostBoxNumber">   <annotation>     <documentation>Specification of the number of a postbox</documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

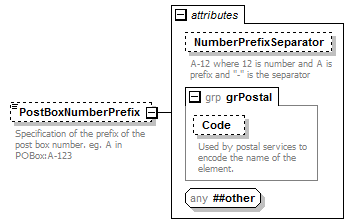

element PostBox/PostBoxNumberPrefix

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  1 content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation NumberPrefixSeparator               documentation A-12 where 12 is number and A is prefix and "-" is the separator Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Specification of the prefix of the post box number. eg. A in POBox:A-123
source	<element name="PostBoxNumberPrefix" minOccurs="0">   <annotation>     <documentation>Specification of the prefix of the post box number. eg. A in POBox:A-123</documentation>   </annotation>   <complexType mixed="true">     <attribute name="NumberPrefixSeparator">       <annotation>         <documentation>A-12 where 12 is number and A is prefix and "-" is the separator</documentation>       </annotation>     </attribute>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PostBox/PostBoxNumberPrefix/@NumberPrefixSeparator

annotation	documentation A-12 where 12 is number and A is prefix and "-" is the separator
source	<attribute name="NumberPrefixSeparator">   <annotation>     <documentation>A-12 where 12 is number and A is prefix and "-" is the separator</documentation>   </annotation> </attribute>

element PostBox/PostBoxNumberSuffix

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  1 content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation NumberSuffixSeparator               documentation 12-A where 12 is number and A is suffix and "-" is the separator Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Specification of the suffix of the post box number. eg. A in POBox:123A
source	<element name="PostBoxNumberSuffix" minOccurs="0">   <annotation>     <documentation>Specification of the suffix of the post box number. eg. A in POBox:123A</documentation>   </annotation>   <complexType mixed="true">     <attribute name="NumberSuffixSeparator">       <annotation>         <documentation>12-A where 12 is number and A is suffix and "-" is the separator</documentation>       </annotation>     </attribute>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PostBox/PostBoxNumberSuffix/@NumberSuffixSeparator

annotation	documentation 12-A where 12 is number and A is suffix and "-" is the separator
source	<attribute name="NumberSuffixSeparator">   <annotation>     <documentation>12-A where 12 is number and A is suffix and "-" is the separator</documentation>   </annotation> </attribute>

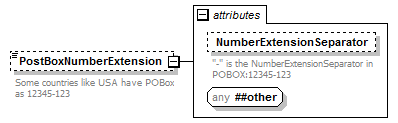

element PostBox/PostBoxNumberExtension

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  0 maxOcc  1 content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation NumberExtensionSeparator               documentation "-" is the NumberExtensionSeparator in POBOX:12345-123
annotation	documentation Some countries like USA have POBox as 12345-123
source	<element name="PostBoxNumberExtension" minOccurs="0">   <annotation>     <documentation>Some countries like USA have POBox as 12345-123</documentation>   </annotation>   <complexType mixed="true">     <attribute name="NumberExtensionSeparator">       <annotation>         <documentation>"-" is the NumberExtensionSeparator in POBOX:12345-123</documentation>       </annotation>     </attribute>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PostBox/PostBoxNumberExtension/@NumberExtensionSeparator

annotation	documentation "-" is the NumberExtensionSeparator in POBOX:12345-123
source	<attribute name="NumberExtensionSeparator">   <annotation>     <documentation>"-" is the NumberExtensionSeparator in POBOX:12345-123</documentation>   </annotation> </attribute>

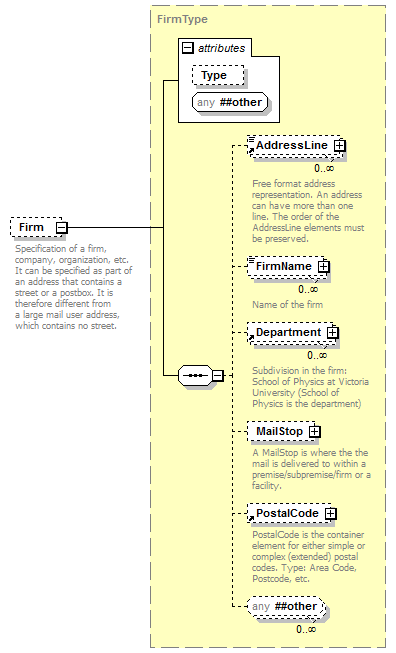

element PostBox/Firm

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
type	FirmType
properties	minOcc  0 maxOcc  1 content  complex
children	AddressLine FirmName Department MailStop PostalCode
attributes	Name   Type   Use   Default   Fixed   Annotation Type
annotation	documentation Specification of a firm, company, organization, etc. It can be specified as part of an address that contains a street or a postbox. It is therefore different from a large mail user address, which contains no street.
source	<element name="Firm" type="FirmType" minOccurs="0">   <annotation>     <documentation>Specification of a firm, company, organization, etc. It can be specified as part of an address that contains a street or a postbox. It is therefore different from a large mail user address, which contains no street.</documentation>   </annotation> </element>
