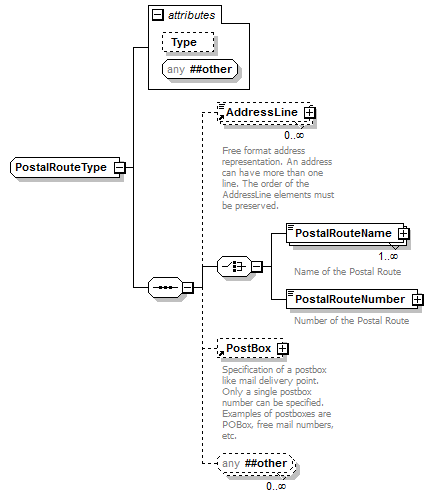

complexType PostalRouteType

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
children	AddressLine PostalRouteName PostalRouteNumber PostBox
used by	elements  Locality/PostalRoute PostOffice/PostalRoute DependentLocalityType/PostalRoute
attributes	Name   Type   Use   Default   Fixed   Annotation Type
source	<complexType name="PostalRouteType">   <sequence>     <element ref="AddressLine" minOccurs="0" maxOccurs="unbounded"/>     <choice>       <element name="PostalRouteName" maxOccurs="unbounded">         <annotation>           <documentation> Name of the Postal Route</documentation>         </annotation>         <complexType mixed="true">           <attribute name="Type"/>           <attributeGroup ref="grPostal"/>           <anyAttribute namespace="##other"/>         </complexType>       </element>       <element name="PostalRouteNumber">         <annotation>           <documentation> Number of the Postal Route</documentation>         </annotation>         <complexType mixed="true">           <attributeGroup ref="grPostal"/>           <anyAttribute namespace="##other"/>         </complexType>       </element>     </choice>     <element ref="PostBox" minOccurs="0"/>     <any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>   </sequence>   <attribute name="Type"/>   <anyAttribute namespace="##other"/> </complexType>

attribute PostalRouteType/@Type

source

<attribute name="Type"/>

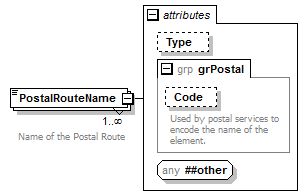

element PostalRouteType/PostalRouteName

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	minOcc  1 maxOcc  unbounded content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation Type               Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Name of the Postal Route
source	<element name="PostalRouteName" maxOccurs="unbounded">   <annotation>     <documentation> Name of the Postal Route</documentation>   </annotation>   <complexType mixed="true">     <attribute name="Type"/>     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>

attribute PostalRouteType/PostalRouteName/@Type

source

<attribute name="Type"/>

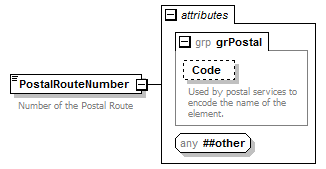

element PostalRouteType/PostalRouteNumber

diagram
namespace	urn:oasis:names:tc:ciq:xsdschema:xAL:2.0
properties	content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation Code               documentation Used by postal services to encode the name of the element.
annotation	documentation Number of the Postal Route
source	<element name="PostalRouteNumber">   <annotation>     <documentation> Number of the Postal Route</documentation>   </annotation>   <complexType mixed="true">     <attributeGroup ref="grPostal"/>     <anyAttribute namespace="##other"/>   </complexType> </element>
