element AudioClip

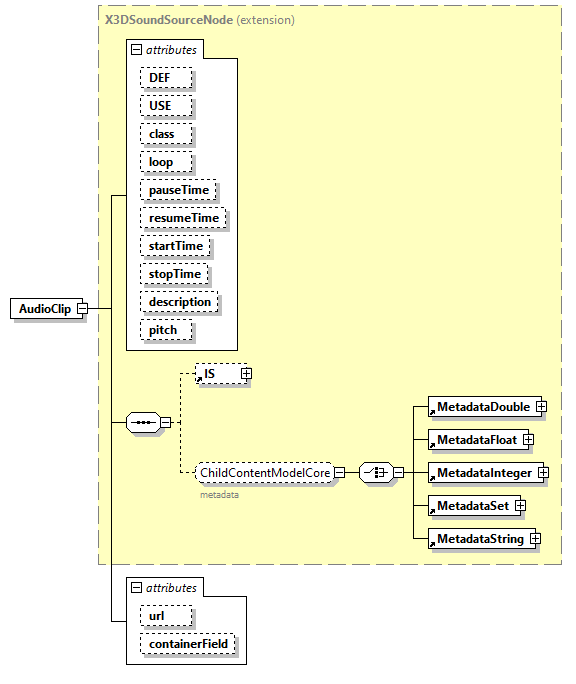

diagram
type	extension of X3DSoundSourceNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	groups  ChildContentModelImmersive LoadSensorChildContentModel SoundChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. loop   SFBool      false      pauseTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> resumeTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> startTime   SFTime      0      stopTime   SFTime      0      description   SFString            pitch   derived by: SFFloat      1.0      url   MFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/> containerField   containerFieldChoicesAudioClip      source
annotation	appinfo <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="AudioClip">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/sound.html#AudioClip"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DSoundSourceNode">         <xs:attribute name="url" type="MFString">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="containerFieldChoicesAudioClip" default="source"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute AudioClip/@url

type	MFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:attribute name="url" type="MFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute AudioClip/@containerField

type	containerFieldChoicesAudioClip
properties	default  source
facets	Kind  Value  Annotation enumeration  source appinfo parent node is Sound node enumeration  watchList appinfo parent node is LoadSensor
source	<xs:attribute name="containerField" type="containerFieldChoicesAudioClip" default="source"/>
