complexType X3DTimeDependentNode

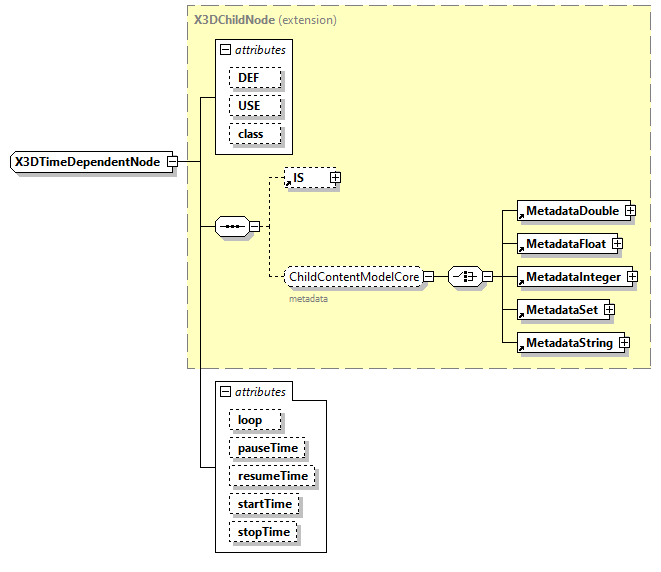

diagram
type	extension of X3DChildNode
properties	base  X3DChildNode abstract  true
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  TimeSensor complexType  X3DSoundSourceNode
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. loop   SFBool      false      pauseTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> resumeTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> startTime   SFTime      0      stopTime   SFTime      0
annotation	appinfo <xs:attribute name="elapsedTime" fixed="outputOnlyField"> <!-- type="SFTimeNonNegative" --> <xs:simpleType> <xs:restriction base="SFTime"> <xs:minInclusive value="0"/> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="isActive" type="SFBool" fixed="outputOnlyField"/> <xs:attribute name="isPaused" type="SFBool" fixed="outputOnlyField"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> </xs:appinfo> </xs:annotation> </xs:attribute> <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Base type from which all time-dependent nodes are derived.
source	<xs:complexType name="X3DTimeDependentNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="elapsedTime" fixed="outputOnlyField">         <!-- type="SFTimeNonNegative" -->         <xs:simpleType>           <xs:restriction base="SFTime">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:attribute>       <xs:attribute name="isActive" type="SFBool" fixed="outputOnlyField"/>       <xs:attribute name="isPaused" type="SFBool" fixed="outputOnlyField">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> Base type from which all time-dependent nodes are derived. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/time.html#X3DTimeDependentNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DChildNode">       <xs:attribute name="loop" type="SFBool" default="false"/>       <xs:attribute name="pauseTime" type="SFTime" default="0">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="resumeTime" type="SFTime" default="0">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="startTime" type="SFTime" default="0"/>       <xs:attribute name="stopTime" type="SFTime" default="0"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DTimeDependentNode/@loop

type	SFBool
properties	default  false
source	<xs:attribute name="loop" type="SFBool" default="false"/>

attribute X3DTimeDependentNode/@pauseTime

type	SFTime
properties	default  0
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="pauseTime" type="SFTime" default="0">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute X3DTimeDependentNode/@resumeTime

type	SFTime
properties	default  0
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:attribute name="resumeTime" type="SFTime" default="0">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute X3DTimeDependentNode/@startTime

type	SFTime
properties	default  0
source	<xs:attribute name="startTime" type="SFTime" default="0"/>

attribute X3DTimeDependentNode/@stopTime

type	SFTime
properties	default  0
source	<xs:attribute name="stopTime" type="SFTime" default="0"/>
