element GeoCoordinate

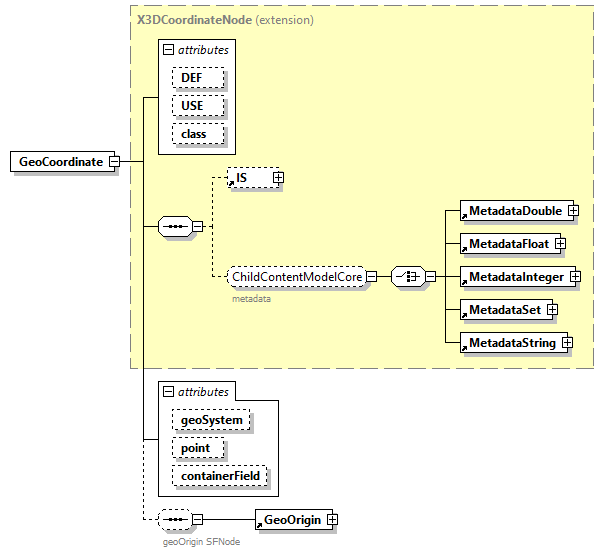

diagram
type	extension of X3DCoordinateNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString GeoOrigin
used by	element  GeoMetadata groups  ColorCoordinateContentModel ColorCoordinateNormalTexCoordContentModel SceneGraphFragmentContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. geoSystem   geoSystemType      "GD" "WE"      point   MFVec3d            containerField   xs:NMTOKEN      coord
annotation	appinfo <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="GeoCoordinate">   <xs:annotation>     <xs:appinfo>       <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geodata.html#GeoCoordinate"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DCoordinateNode">         <xs:sequence minOccurs="0">           <xs:annotation>             <xs:documentation>geoOrigin SFNode</xs:documentation>           </xs:annotation>           <xs:element ref="GeoOrigin"/>         </xs:sequence>         <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>         <xs:attribute name="point" type="MFVec3d"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="coord"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeoCoordinate/@geoSystem

type	geoSystemType
properties	default  "GD" "WE"
source	<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoCoordinate/@point

type	MFVec3d
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="point" type="MFVec3d"/>

attribute GeoCoordinate/@containerField

type	xs:NMTOKEN
properties	default  coord
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="coord"/>
