element GeoOrigin

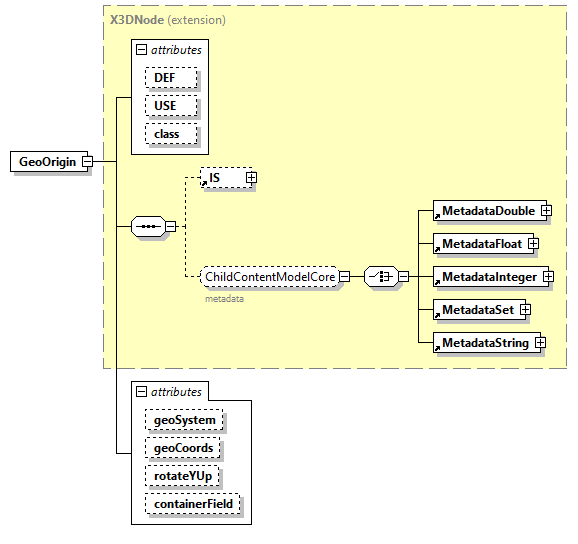

diagram
type	extension of X3DNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	elements  GeoCoordinate GeoElevationGrid GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoTouchSensor GeoViewpoint group  SceneGraphFragmentWithPrototypeDeclarationsContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. geoSystem   geoSystemType      "GD" "WE"      geoCoords   SFVec3d      0 0 0      rotateYUp   SFBool      false      containerField   xs:NMTOKEN      geoOrigin
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> GeoOrigin is deprecated and discouraged (but nevertheless allowed) in X3D version 3.3. GeoOrigin is restored in X3D version 4.0 for special use on devices with limited floating-point resolution.
source	<xs:element name="GeoOrigin">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> GeoOrigin is deprecated and discouraged (but nevertheless allowed) in X3D version 3.3. GeoOrigin is restored in X3D version 4.0 for special use on devices with limited floating-point resolution. </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geodata.html#GeoOrigin"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DNode">         <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>         <xs:attribute name="geoCoords" type="SFVec3d" default="0 0 0"/>         <xs:attribute name="rotateYUp" type="SFBool" default="false"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="geoOrigin"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeoOrigin/@geoSystem

type	geoSystemType
properties	default  "GD" "WE"
source	<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoOrigin/@geoCoords

type	SFVec3d
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="geoCoords" type="SFVec3d" default="0 0 0"/>

attribute GeoOrigin/@rotateYUp

type	SFBool
properties	default  false
source	<xs:attribute name="rotateYUp" type="SFBool" default="false"/>

attribute GeoOrigin/@containerField

type	xs:NMTOKEN
properties	default  geoOrigin
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geoOrigin"/>
