element GeoPositionInterpolator

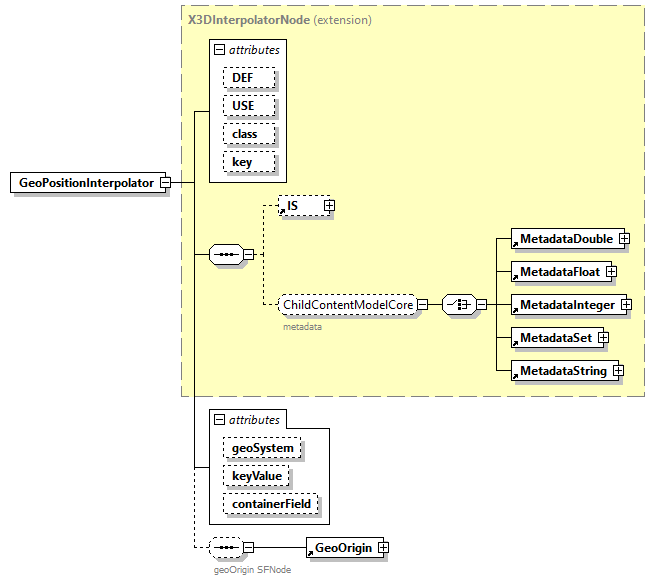

diagram
type	extension of X3DInterpolatorNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString GeoOrigin
used by	element  GeoMetadata group  ChildContentModelGeoSpatial
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. key   MFFloat            geoSystem   geoSystemType      "GD" "WE"      keyValue   MFVec3d            containerField   xs:NMTOKEN      children
annotation	appinfo <xs:attribute name="value_changed" type="SFVec3f" fixed="outputOnlyField"/> <xs:attribute name="geovalue_changed" type="SFVec3d" fixed="outputOnlyField"/> <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="GeoPositionInterpolator">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="value_changed" type="SFVec3f" fixed="outputOnlyField"/>       <xs:attribute name="geovalue_changed" type="SFVec3d" fixed="outputOnlyField"/>       <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geodata.html#GeoPositionInterpolator"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DInterpolatorNode">         <xs:sequence minOccurs="0">           <xs:annotation>             <xs:documentation>geoOrigin SFNode</xs:documentation>           </xs:annotation>           <xs:element ref="GeoOrigin"/>         </xs:sequence>         <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>         <xs:attribute name="keyValue" type="MFVec3d"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeoPositionInterpolator/@geoSystem

type	geoSystemType
properties	default  "GD" "WE"
source	<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoPositionInterpolator/@keyValue

type	MFVec3d
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*,?\s*)*
source	<xs:attribute name="keyValue" type="MFVec3d"/>

attribute GeoPositionInterpolator/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
