element GeoTouchSensor

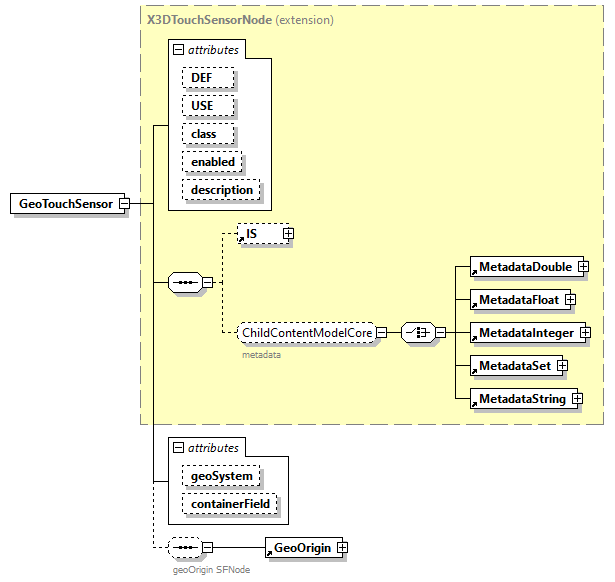

diagram x3d-3.0_diagrams/x3d-3.0_p48.png
type extension of X3DTouchSensorNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString GeoOrigin
used by
element GeoMetadata
group ChildContentModelGeoSpatial
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
enabled  SFBool    true
description  SFString
geoSystem  geoSystemType    "GD" "WE"
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="hitNormal_changed" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="hitPoint_changed" type="SFVec3f" fixed="outputOnlyField"/>
<xs:attribute name="hitTexCoord_changed" type="SFVec2f" fixed="outputOnlyField"/>
<xs:attribute name="hitGeoCoord_changed" type="SFVec3d" fixed="outputOnlyField"/>
<xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="GeoTouchSensor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="hitNormal_changed" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="hitPoint_changed" type="SFVec3f" fixed="outputOnlyField"/>

<xs:attribute name="hitTexCoord_changed" type="SFVec2f" fixed="outputOnlyField"/>

<xs:attribute name="hitGeoCoord_changed" type="SFVec3d" fixed="outputOnlyField"/>

<xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geodata.html#GeoTouchSensor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DTouchSensorNode">

<xs:sequence minOccurs="0">

<xs:annotation>

<xs:documentation>geoOrigin SFNode</xs:documentation>

</xs:annotation>

<xs:element ref="GeoOrigin"/>

</xs:sequence>

<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute GeoTouchSensor/@geoSystem
type geoSystemType
properties
default "GD" "WE"
source <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoTouchSensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
