element GeoViewpoint

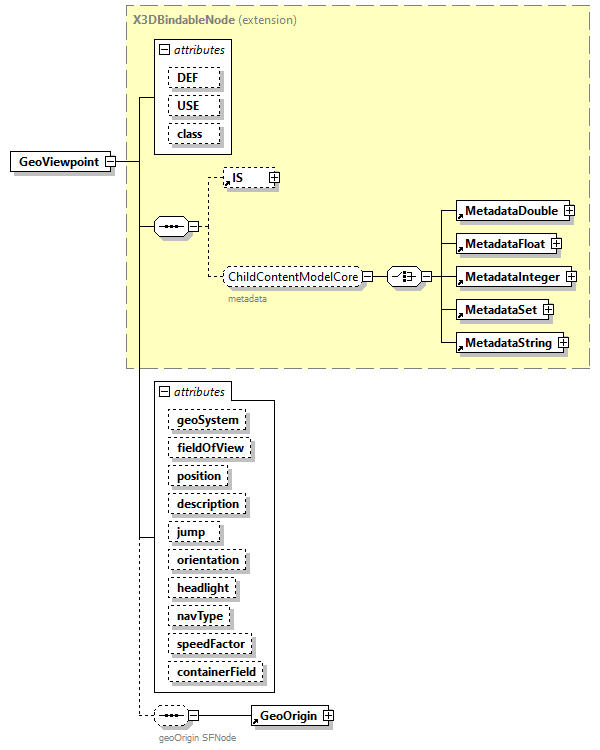

diagram
type	extension of X3DBindableNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString GeoOrigin
used by	element  GeoMetadata group  ChildContentModelGeoSpatial
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. geoSystem   geoSystemType      "GD" "WE"      fieldOfView   derived by: SFFloat      0.7854      position   SFVec3d      0 0 100000      description   SFString            jump   SFBool      true      orientation   SFRotation      0 0 1 0      headlight   SFBool      true      navType   MFString      "EXAMINE" "ANY"      speedFactor   derived by: SFFloat      1.0      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/> <!-- X3D version 3.3 GeoViewpoint changes: added centerOfRotation and retainUserOffsets, removed navType and headlight, removed set_position and set_orientation -->
source	<xs:element name="GeoViewpoint">   <xs:annotation>     <xs:appinfo>       <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>       <!-- X3D version 3.3 GeoViewpoint changes: added centerOfRotation and retainUserOffsets, removed navType and headlight, removed set_position and set_orientation -->     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geodata.html#GeoViewpoint"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DBindableNode">         <xs:sequence minOccurs="0">           <xs:annotation>             <xs:documentation>geoOrigin SFNode</xs:documentation>           </xs:annotation>           <xs:element ref="GeoOrigin"/>         </xs:sequence>         <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>         <xs:attribute name="fieldOfView" default="0.7854">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minExclusive value="0"/>               <xs:maxExclusive value="3.1416"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="position" type="SFVec3d" default="0 0 100000"/>         <xs:attribute name="description" type="SFString"/>         <xs:attribute name="jump" type="SFBool" default="true"/>         <xs:attribute name="orientation" type="SFRotation" default="0 0 1 0"/>         <xs:attribute name="headlight" type="SFBool" default="true"/>         <xs:attribute name="navType" type="MFString" default='"EXAMINE" "ANY"'/>         <xs:attribute name="speedFactor" default="1.0">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>       <!-- centerOfRotation added in X3D version 3.1 -->       <!-- retainUserOffsets added in X3D version 3.1 -->       <!-- X3DViewpointNode node hierarchy modified in X3D version 3.2 -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeoViewpoint/@geoSystem

type	geoSystemType
properties	default  "GD" "WE"
source	<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoViewpoint/@fieldOfView

type	restriction of SFFloat
properties	default  0.7854
facets	Kind  Value  Annotation minExclusive  0 maxExclusive  3.1416
source	<xs:attribute name="fieldOfView" default="0.7854">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minExclusive value="0"/>       <xs:maxExclusive value="3.1416"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoViewpoint/@position

type	SFVec3d
properties	default  0 0 100000
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="position" type="SFVec3d" default="0 0 100000"/>

attribute GeoViewpoint/@description

type	SFString
source	<xs:attribute name="description" type="SFString"/>

attribute GeoViewpoint/@jump

type	SFBool
properties	default  true
source	<xs:attribute name="jump" type="SFBool" default="true"/>

attribute GeoViewpoint/@orientation

type	SFRotation
properties	default  0 0 1 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){3}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="orientation" type="SFRotation" default="0 0 1 0"/>

attribute GeoViewpoint/@headlight

type	SFBool
properties	default  true
source	<xs:attribute name="headlight" type="SFBool" default="true"/>

attribute GeoViewpoint/@navType

type	MFString
properties	default  "EXAMINE" "ANY"
source	<xs:attribute name="navType" type="MFString" default='"EXAMINE" "ANY"'/>

attribute GeoViewpoint/@speedFactor

type	restriction of SFFloat
properties	default  1.0
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="speedFactor" default="1.0">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute GeoViewpoint/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
