element MultiTexture

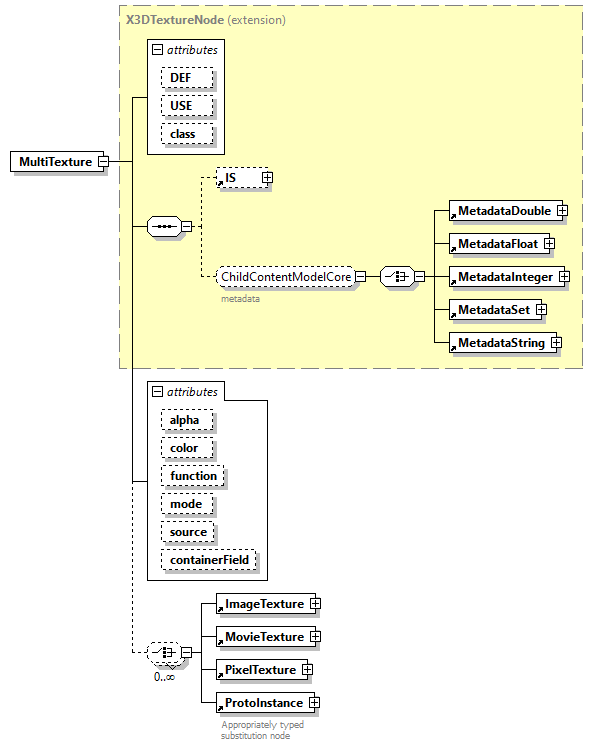

diagram
type	extension of X3DTextureNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString ImageTexture MovieTexture PixelTexture ProtoInstance
used by	groups  AppearanceChildContentModelNoProtoInstance TextureBackgroundChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. alpha   derived by: SFFloat      1      color   SFColor      1 1 1      function   MFString            mode   MFString            source   MFString            containerField   containerFieldChoicesX3DTexture2DNode      texture
annotation	appinfo <xs:attribute name="function" type="multiTextureFunctionValues"> <xs:annotation> <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="mode" type="multiTextureModeValues"> <xs:annotation> <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="source" type="multiTextureSourceValues"> <xs:annotation> <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation> </xs:annotation> </xs:attribute> <xs:element name="texture" type="MFNode" fixed="inputOutputField" default="X3DTextureNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
source	<xs:element name="MultiTexture">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="function" type="multiTextureFunctionValues">         <xs:annotation>           <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attribute name="mode" type="multiTextureModeValues">         <xs:annotation>           <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attribute name="source" type="multiTextureSourceValues">         <xs:annotation>           <xs:documentation>Multiple optional values, but cannot be extended.</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:element name="texture" type="MFNode" fixed="inputOutputField" default="X3DTextureNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texturing.html#MultiTexture"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DTextureNode">         <xs:choice minOccurs="0" maxOccurs="unbounded">           <xs:element ref="ImageTexture"/>           <xs:element ref="MovieTexture"/>           <xs:element ref="PixelTexture"/>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="alpha" default="1">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>               <xs:maxInclusive value="1"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="color" type="SFColor" default="1 1 1"/>         <xs:attribute name="function" type="MFString"/>         <xs:attribute name="mode" type="MFString"/>         <xs:attribute name="source" type="MFString"/>         <xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute MultiTexture/@alpha

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
source	<xs:attribute name="alpha" default="1">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="1"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MultiTexture/@color

type	SFColor
properties	default  1 1 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  (\s)*(([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)+){2}([+]?((0(\.[0-9]*)?|\.[0-9]+)|1(\.0*)?)([Ee][+-]?[0-9]+)?)(\s)*
source	<xs:attribute name="color" type="SFColor" default="1 1 1"/>

attribute MultiTexture/@function

type	MFString
source	<xs:attribute name="function" type="MFString"/>

attribute MultiTexture/@mode

type	MFString
source	<xs:attribute name="mode" type="MFString"/>

attribute MultiTexture/@source

type	MFString
source	<xs:attribute name="source" type="MFString"/>

attribute MultiTexture/@containerField

type	containerFieldChoicesX3DTexture2DNode
properties	default  texture
facets	Kind  Value  Annotation enumeration  texture appinfo default, parent node is Appearance enumeration  source appinfo parent node is Sound (only valid for MovieTexture) enumeration  back appinfo parent node is ComposedCubeMapTexture enumeration  bottom appinfo parent node is ComposedCubeMapTexture enumeration  front appinfo parent node is ComposedCubeMapTexture enumeration  left appinfo parent node is ComposedCubeMapTexture enumeration  right appinfo parent node is ComposedCubeMapTexture enumeration  top appinfo parent node is ComposedCubeMapTexture enumeration  backTexture appinfo parent node is TextureBackground enumeration  bottomTexture appinfo parent node is TextureBackground enumeration  frontTexture appinfo parent node is TextureBackground enumeration  leftTexture appinfo parent node is TextureBackground enumeration  rightTexture appinfo parent node is TextureBackground enumeration  topTexture appinfo parent node is TextureBackground
source	<xs:attribute name="containerField" type="containerFieldChoicesX3DTexture2DNode" default="texture"/>
