element MovieTexture

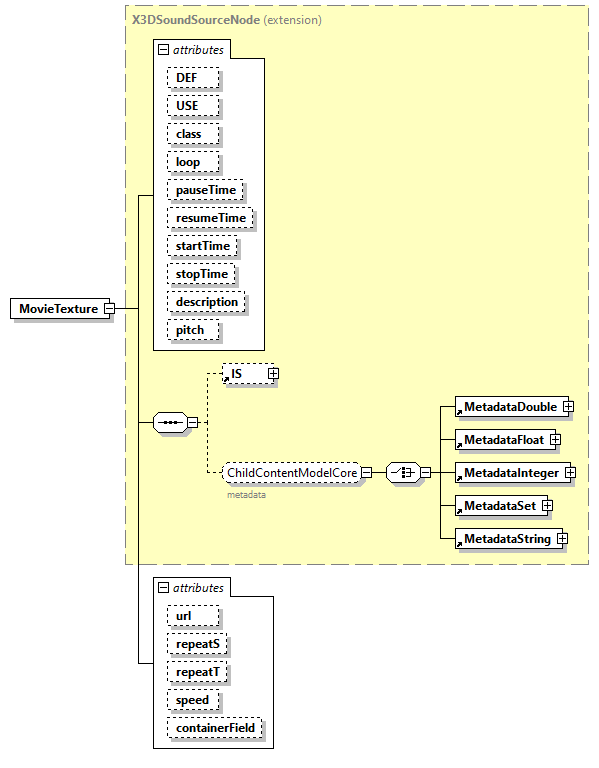

diagram
type	extension of X3DSoundSourceNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by	element  MultiTexture groups  AppearanceChildContentModelNoProtoInstance LoadSensorChildContentModel SoundChildContentModel TextureBackgroundChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. loop   SFBool      false      pauseTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> resumeTime   SFTime      0      appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> startTime   SFTime      0      stopTime   SFTime      0      description   SFString            pitch   derived by: SFFloat      1.0      url   MFString            appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/> repeatS   SFBool      true      repeatT   SFBool      true      speed   SFFloat      1.0      containerField   containerFieldChoicesX3dUrlObjectTexture      texture
annotation	appinfo <!-- textureProperties in X3D version 3.2 --> <xs:attribute name="additionalInterface" type="xs:string" default="X3DTexture2DNode"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source	<xs:element name="MovieTexture">   <xs:annotation>     <xs:appinfo>       <!-- textureProperties in X3D version 3.2 -->       <xs:attribute name="additionalInterface" type="xs:string" default="X3DTexture2DNode"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DUrlObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Texturing"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/texturing.html#MovieTexture"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DSoundSourceNode">         <xs:attribute name="url" type="MFString">           <xs:annotation>             <xs:appinfo>               <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>               <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="repeatS" type="SFBool" default="true"/>         <xs:attribute name="repeatT" type="SFBool" default="true"/>         <xs:attribute name="speed" type="SFFloat" default="1.0"/>         <xs:attribute name="containerField" type="containerFieldChoicesX3dUrlObjectTexture" default="texture"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute MovieTexture/@url

type	MFString
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:attribute name="url" type="MFString">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MovieTexture/@repeatS

type	SFBool
properties	default  true
source	<xs:attribute name="repeatS" type="SFBool" default="true"/>

attribute MovieTexture/@repeatT

type	SFBool
properties	default  true
source	<xs:attribute name="repeatT" type="SFBool" default="true"/>

attribute MovieTexture/@speed

type	SFFloat
properties	default  1.0
source	<xs:attribute name="speed" type="SFFloat" default="1.0"/>

attribute MovieTexture/@containerField

type	containerFieldChoicesX3dUrlObjectTexture
properties	default  texture
facets	Kind  Value  Annotation enumeration  texture appinfo default, parent node is Appearance enumeration  watchList appinfo parent node is LoadSensor (invalid for PixelTexture) enumeration  source appinfo parent node is Sound (only valid for MovieTexture) enumeration  back appinfo parent node is ComposedCubeMapTexture enumeration  bottom appinfo parent node is ComposedCubeMapTexture enumeration  front appinfo parent node is ComposedCubeMapTexture enumeration  left appinfo parent node is ComposedCubeMapTexture enumeration  right appinfo parent node is ComposedCubeMapTexture enumeration  top appinfo parent node is ComposedCubeMapTexture enumeration  backTexture appinfo parent node is TextureBackground enumeration  bottomTexture appinfo parent node is TextureBackground enumeration  frontTexture appinfo parent node is TextureBackground enumeration  leftTexture appinfo parent node is TextureBackground enumeration  rightTexture appinfo parent node is TextureBackground enumeration  topTexture appinfo parent node is TextureBackground
source	<xs:attribute name="containerField" type="containerFieldChoicesX3dUrlObjectTexture" default="texture"/>
