element TimeSensor

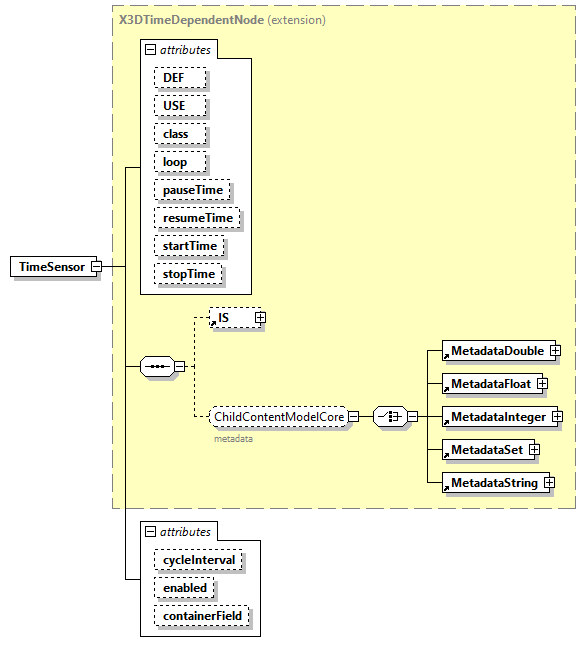

diagram x3d-3.0_diagrams/x3d-3.0_p132.png
type extension of X3DTimeDependentNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
loop  SFBool    false
pauseTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
resumeTime  SFTime    0
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
startTime  SFTime    0
stopTime  SFTime    0
cycleInterval  derived by: SFTime    1.0
enabled  SFBool    true
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="cycleTime" fixed="outputOnlyField">
<!-- type="SFTimeNonNegative" -->
<xs:simpleType>
<xs:restriction base="SFTime">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="fraction_changed" type="SFFloat" fixed="outputOnlyField"/>
<xs:attribute name="time" fixed="outputOnlyField">
<!-- type="SFTimeNonNegative" -->
<xs:simpleType>
<xs:restriction base="SFTime">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DSensorNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="TimeSensor">
  <xs:annotation>
    <xs:appinfo>
      <xs:attribute name="cycleTime" fixed="outputOnlyField">
        <!-- type="SFTimeNonNegative" -->
        <xs:simpleType>
          <xs:restriction base="SFTime">
            <xs:minInclusive value="0"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
      <xs:attribute name="fraction_changed" type="SFFloat" fixed="outputOnlyField"/>
      <xs:attribute name="time" fixed="outputOnlyField">
        <!-- type="SFTimeNonNegative" -->
        <xs:simpleType>
          <xs:restriction base="SFTime">
            <xs:minInclusive value="0"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
      <xs:attribute name="additionalInterface" type="xs:string" default="X3DSensorNode"/>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Time"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
    </xs:appinfo>
    <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/time.html#TimeSensor"/>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="X3DTimeDependentNode">
        <xs:attribute name="cycleInterval" default="1.0">
          <!-- type="SFTimeNonNegative" -->
          <xs:simpleType>
            <xs:restriction base="SFTime">
              <xs:minInclusive value="0"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="enabled" type="SFBool" default="true"/>
        <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute TimeSensor/@cycleInterval
type restriction of SFTime
properties
default 1.0
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="cycleInterval" default="1.0">
  <!-- type="SFTimeNonNegative" -->
  <xs:simpleType>
    <xs:restriction base="SFTime">
      <xs:minInclusive value="0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute TimeSensor/@enabled
type SFBool
properties
default true
source <xs:attribute name="enabled" type="SFBool" default="true"/>

attribute TimeSensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
