element NurbsTrimmedSurface

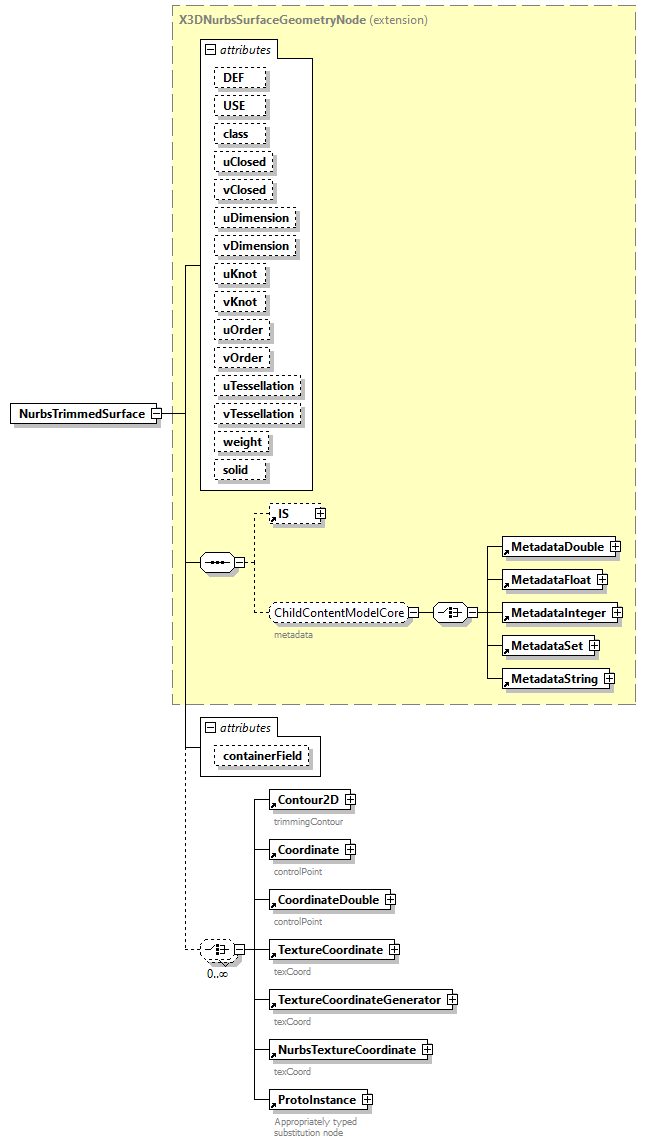

diagram
type	extension of X3DNurbsSurfaceGeometryNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Contour2D Coordinate CoordinateDouble TextureCoordinate TextureCoordinateGenerator NurbsTextureCoordinate ProtoInstance
used by	element  NurbsSet group  GeometryContentModelNurbs
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. uClosed   SFBool      false      vClosed   SFBool      false      uDimension   derived by: SFInt32      0      vDimension   derived by: SFInt32      0      uKnot   MFDouble            vKnot   MFDouble            uOrder   derived by: SFInt32      3      vOrder   derived by: SFInt32      3      uTessellation   SFInt32      0      vTessellation   SFInt32      0      weight   MFDouble            appinfo <xs:minExclusive value="0"/> solid   SFBool      true      containerField   xs:NMTOKEN      geometry
annotation	appinfo <xs:element name="addTrimmingContour" type="MFNode" fixed="inputOnlyField" default="Contour2D"/> <xs:element name="removeTrimmingContour" type="MFNode" fixed="inputOnlyField" default="Contour2D"/> <xs:element name="trimmingContour" type="MFNode" fixed="inputOutputField" default="Contour2D"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source	<xs:element name="NurbsTrimmedSurface">   <xs:annotation>     <xs:appinfo>       <xs:element name="addTrimmingContour" type="MFNode" fixed="inputOnlyField" default="Contour2D"/>       <xs:element name="removeTrimmingContour" type="MFNode" fixed="inputOnlyField" default="Contour2D"/>       <xs:element name="trimmingContour" type="MFNode" fixed="inputOutputField" default="Contour2D"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#NurbsTrimmedSurface"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DNurbsSurfaceGeometryNode">         <xs:choice minOccurs="0" maxOccurs="unbounded">           <xs:element ref="Contour2D">             <xs:annotation>               <xs:documentation>trimmingContour</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element ref="Coordinate">             <xs:annotation>               <xs:documentation>controlPoint</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element ref="CoordinateDouble">             <xs:annotation>               <xs:documentation>controlPoint</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element ref="TextureCoordinate">             <xs:annotation>               <xs:documentation>texCoord</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element ref="TextureCoordinateGenerator">             <xs:annotation>               <xs:documentation>texCoord</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element ref="NurbsTextureCoordinate">             <xs:annotation>               <xs:documentation>texCoord</xs:documentation>             </xs:annotation>           </xs:element>           <xs:element ref="ProtoInstance">             <xs:annotation>               <xs:documentation>Appropriately typed substitution node</xs:documentation>             </xs:annotation>           </xs:element>         </xs:choice>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute NurbsTrimmedSurface/@containerField

type	xs:NMTOKEN
properties	default  geometry
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
