element Shape

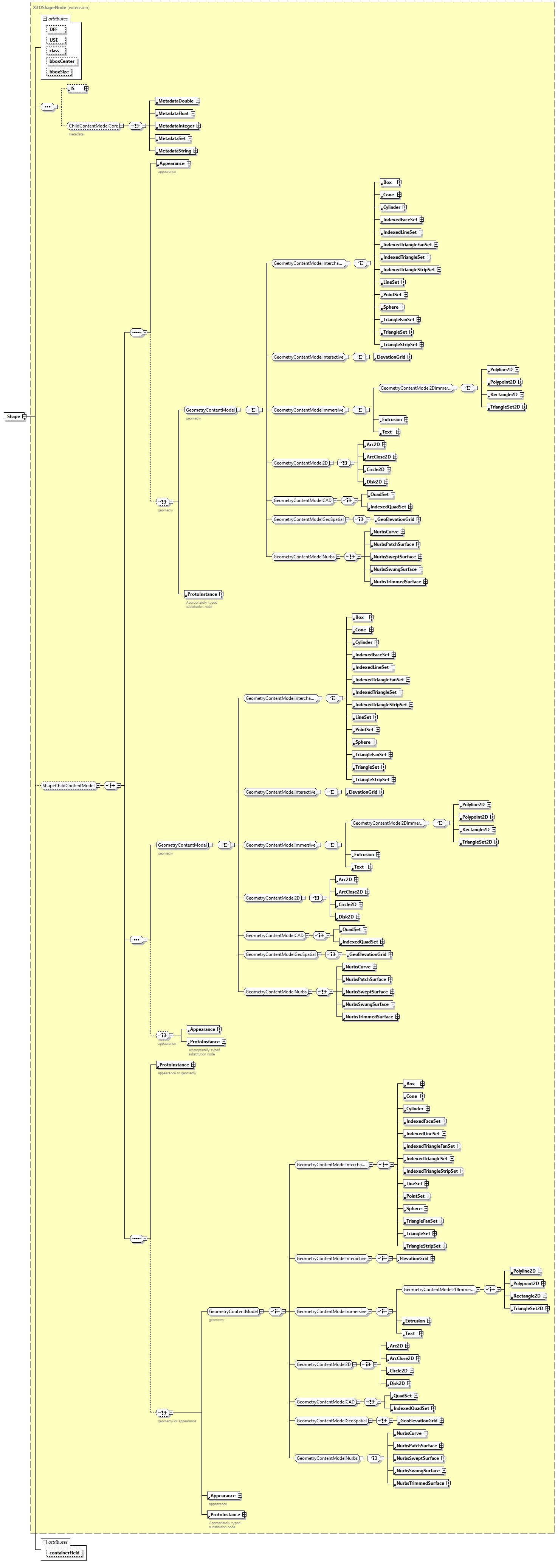

diagram x3d-3.1_diagrams/x3d-3.1_p140.png
type extension of X3DShapeNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Appearance Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D QuadSet IndexedQuadSet GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface ProtoInstance
used by
elements CADFace HAnimHumanoid
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
containerField  containerFieldChoicesGroupLODShapeTransform    children
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="Shape">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shape.html#Shape"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DShapeNode">

<xs:attribute name="containerField" type="containerFieldChoicesGroupLODShapeTransform" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute Shape/@containerField
type containerFieldChoicesGroupLODShapeTransform
properties
default children
facets
Kind Value Annotation
enumeration children
appinfo
parent node has abstract type X3DGroupingNode
enumeration proxy
appinfo
parent node is Collision
enumeration rootNode
appinfo
parent node is GeoLOD
enumeration shape
appinfo
parent node is CADFace or CollidableShape
enumeration skin
appinfo
parent node is HAnimHumanoid
source <xs:attribute name="containerField" type="containerFieldChoicesGroupLODShapeTransform" default="children"/>
