element IndexedQuadSet

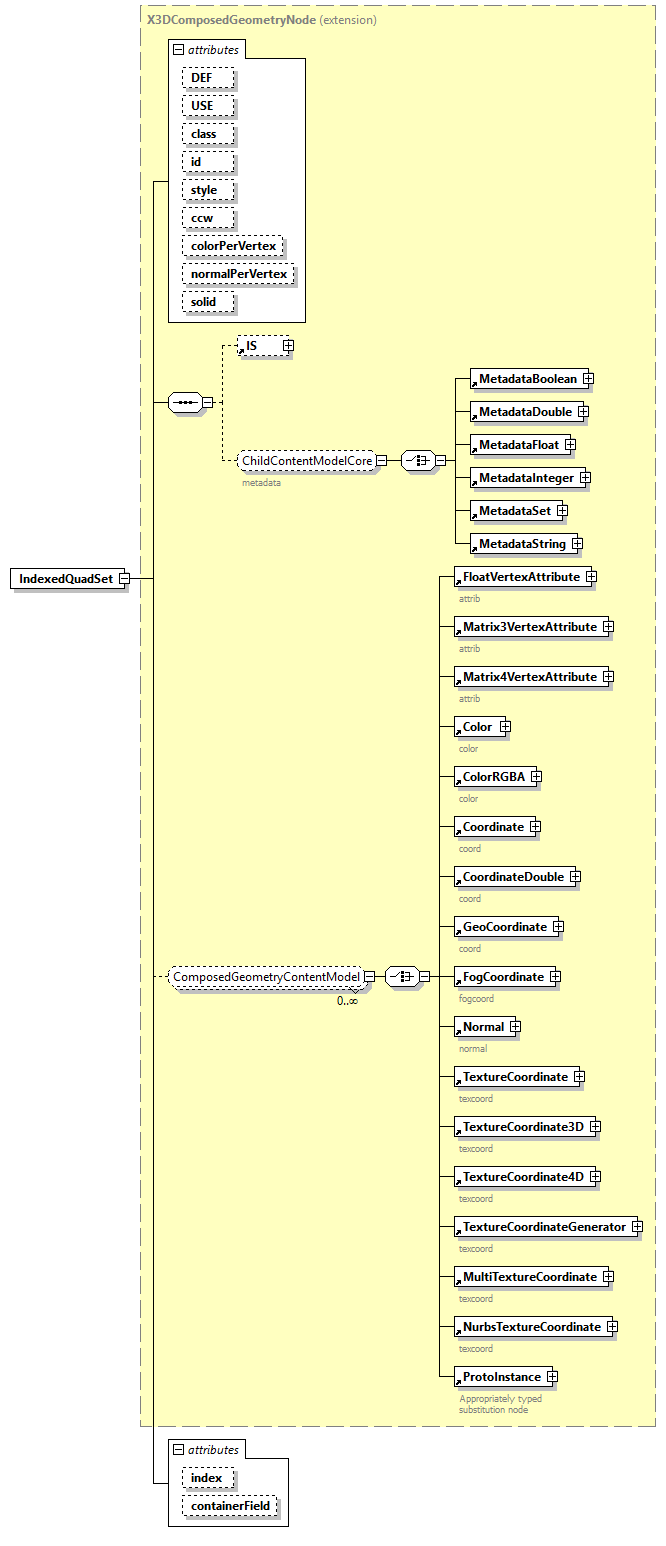

diagram
type	extension of X3DComposedGeometryNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString FloatVertexAttribute Matrix3VertexAttribute Matrix4VertexAttribute Color ColorRGBA Coordinate CoordinateDouble GeoCoordinate FogCoordinate Normal TextureCoordinate TextureCoordinate3D TextureCoordinate4D TextureCoordinateGenerator MultiTextureCoordinate NurbsTextureCoordinate ProtoInstance
used by	element  HAnimHumanoid group  GeometryContentModelCAD
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 ccw   SFBool      true      colorPerVertex   SFBool      true      normalPerVertex   SFBool      true      solid   SFBool      true      index   MFInt32            appinfo <xs:minInclusive value="0"/> containerField   xs:NMTOKEN      geometry
annotation	appinfo <xs:attribute name="set_index" type="MFInt32" fixed="inputOnlyField"> <xs:annotation> <xs:appinfo> <xs:minInclusive value="0"/> </xs:appinfo> </xs:annotation> </xs:attribute> <xs:attribute name="componentName" type="componentNameChoices" fixed="CADGeometry"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 IndexedQuadSet is a geometry node that defines quadrilaterals.
source	<xs:element name="IndexedQuadSet">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="set_index" type="MFInt32" fixed="inputOnlyField">         <xs:annotation>           <xs:appinfo>             <xs:minInclusive value="0"/>           </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="componentName" type="componentNameChoices" fixed="CADGeometry"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 IndexedQuadSet is a geometry node that defines quadrilaterals.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/CADGeometry.html#IndexedQuadSet"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DComposedGeometryNode">         <xs:attribute name="index" type="MFInt32">           <xs:annotation>             <xs:appinfo>               <xs:minInclusive value="0"/>             </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute IndexedQuadSet/@index

type	MFInt32
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*([+-]?(0|[1-9][0-9]*)([Ee][+-]?[0-9]+)?\s*,?\s*)*
annotation	appinfo <xs:minInclusive value="0"/>
source	<xs:attribute name="index" type="MFInt32">   <xs:annotation>     <xs:appinfo>       <xs:minInclusive value="0"/>     </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IndexedQuadSet/@containerField

type	xs:NMTOKEN
properties	default  geometry
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="geometry"/>
