element TransformSensor

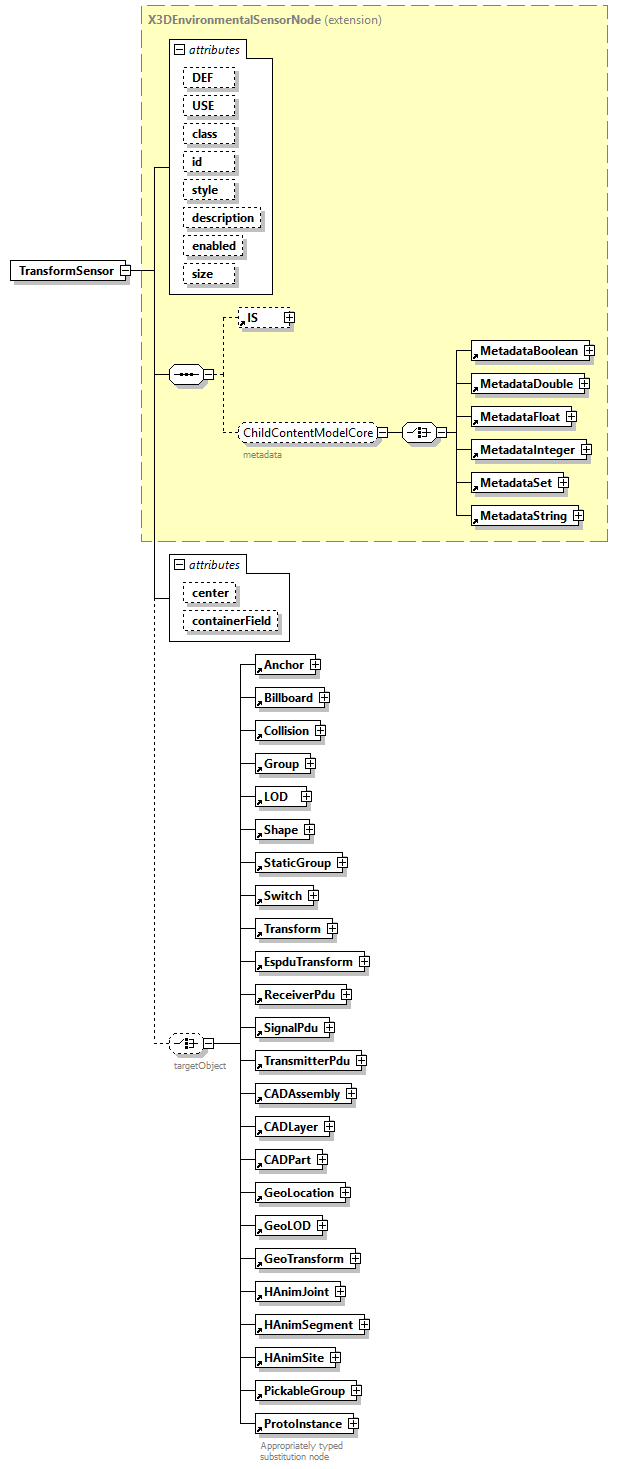

diagram x3d-4.0_diagrams/x3d-4.0_p257.png
type extension of X3DEnvironmentalSensorNode
properties
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Anchor Billboard Collision Group LOD Shape StaticGroup Switch Transform EspduTransform ReceiverPdu SignalPdu TransmitterPdu CADAssembly CADLayer CADPart GeoLocation GeoLOD GeoTransform HAnimJoint HAnimSegment HAnimSite PickableGroup ProtoInstance
used by
group ChildContentModelFull
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

                    DEF defines a unique ID name for each node, referenceable by other nodes.

USE  xs:IDREF
appinfo

                    USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).

class  xs:NMTOKENS
appinfo

                    The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

id  xs:NMTOKEN
appinfo

                    The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

style  SFString
appinfo

                    The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
                    This attribute is only functional if the X3D model is loaded within an HTML page.

description  SFString
enabled  SFBool    true
size  SFVec3f    0 0 0
appinfo
<xs:minInclusive value="0"/>
center  SFVec3f    0 0 0
containerField  xs:NMTOKEN    children
annotation
appinfo
<xs:attribute name="enterTime" type="SFTime" fixed="outputOnlyField"/>
<xs:attribute name="exitTime" type="SFTime" fixed="outputOnlyField"/>
<xs:attribute name="orientation_changed" type="SFRotation" fixed="outputOnlyField"/>
<xs:attribute name="position_changed" type="SFVec3f" fixed="outputOnlyField"/>
<xs:element name="targetObject" type="SFNode" fixed="inputOutputField" default="X3DGroupingNode|X3DShapeNode"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>
source <xs:element name="TransformSensor">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="enterTime" type="SFTime" fixed="outputOnlyField"/>

<xs:attribute name="exitTime" type="SFTime" fixed="outputOnlyField"/>

<xs:attribute name="orientation_changed" type="SFRotation" fixed="outputOnlyField"/>

<xs:attribute name="position_changed" type="SFVec3f" fixed="outputOnlyField"/>

<xs:element name="targetObject" type="SFNode" fixed="inputOutputField" default="X3DGroupingNode|X3DShapeNode"/>

<xs:attribute name="componentName" type="componentNameChoices" fixed="EnvironmentalSensor"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>

</xs:appinfo>

<xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/environmentalSensor.html#TransformSensor"/>

</xs:annotation>

<xs:complexType>

<xs:complexContent>

<xs:extension base="X3DEnvironmentalSensorNode">

<xs:choice minOccurs="0">

<xs:annotation>

<xs:documentation>targetObject</xs:documentation>

</xs:annotation>

<xs:element ref="Anchor"/>

<xs:element ref="Billboard"/>

<xs:element ref="Collision"/>

<xs:element ref="Group"/>

<xs:element ref="LOD"/>

<xs:element ref="Shape"/>

<xs:element ref="StaticGroup"/>

<xs:element ref="Switch"/>

<xs:element ref="Transform"/>

<xs:element ref="EspduTransform"/>

<xs:element ref="ReceiverPdu"/>

<xs:element ref="SignalPdu"/>

<xs:element ref="TransmitterPdu"/>

<xs:element ref="CADAssembly"/>

<xs:element ref="CADLayer"/>

<xs:element ref="CADPart"/>

<xs:element ref="GeoLocation"/>

<xs:element ref="GeoLOD"/>

<xs:element ref="GeoTransform"/>

<xs:element ref="HAnimJoint"/>

<xs:element ref="HAnimSegment"/>

<xs:element ref="HAnimSite"/>

<xs:element ref="PickableGroup"/>

<xs:element ref="ProtoInstance">

<xs:annotation>

<xs:documentation>Appropriately typed substitution node</xs:documentation>

</xs:annotation>

</xs:element>

</xs:choice>

<xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute TransformSensor/@center
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="center" type="SFVec3f" default="0 0 0"/>

attribute TransformSensor/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
