element Sound

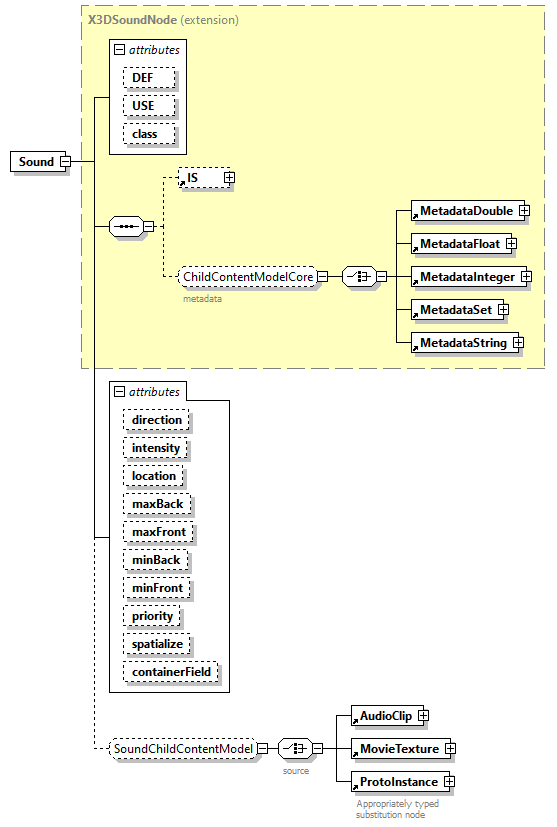

diagram
type	extension of X3DSoundNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString AudioClip MovieTexture ProtoInstance
used by	group  ChildContentModelImmersive
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. direction   SFVec3f      0 0 1      intensity   unitIntervalType      1      location   SFVec3f      0 0 0      maxBack   derived by: SFFloat      10      maxFront   derived by: SFFloat      10      minBack   derived by: SFFloat      1      minFront   derived by: SFFloat      1      priority   unitIntervalType      0      spatialize   SFBool      true      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:element name="source" type="SFNode" fixed="inputOutputField" default="X3DSoundSourceNode"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="Sound">   <xs:annotation>     <xs:appinfo>       <xs:element name="source" type="SFNode" fixed="inputOutputField" default="X3DSoundSourceNode"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Sound"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/sound.html#Sound"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DSoundNode">         <xs:group ref="SoundChildContentModel" minOccurs="0"/>         <xs:attribute name="direction" type="SFVec3f" default="0 0 1"/>         <xs:attribute name="intensity" type="unitIntervalType" default="1"/>         <xs:attribute name="location" type="SFVec3f" default="0 0 0"/>         <xs:attribute name="maxBack" default="10">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="maxFront" default="10">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="minBack" default="1">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="minFront" default="1">           <xs:simpleType>             <xs:restriction base="SFFloat">               <xs:minInclusive value="0"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="priority" type="unitIntervalType" default="0"/>         <xs:attribute name="spatialize" type="SFBool" default="true"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Sound/@direction

type	SFVec3f
properties	default  0 0 1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="direction" type="SFVec3f" default="0 0 1"/>

attribute Sound/@intensity

type	unitIntervalType
properties	default  1
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
source	<xs:attribute name="intensity" type="unitIntervalType" default="1"/>

attribute Sound/@location

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="location" type="SFVec3f" default="0 0 0"/>

attribute Sound/@maxBack

type	restriction of SFFloat
properties	default  10
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="maxBack" default="10">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Sound/@maxFront

type	restriction of SFFloat
properties	default  10
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="maxFront" default="10">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Sound/@minBack

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="minBack" default="1">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Sound/@minFront

type	restriction of SFFloat
properties	default  1
facets	Kind  Value  Annotation minInclusive  0
source	<xs:attribute name="minFront" default="1">   <xs:simpleType>     <xs:restriction base="SFFloat">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Sound/@priority

type	unitIntervalType
properties	default  0
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1
source	<xs:attribute name="priority" type="unitIntervalType" default="0"/>

attribute Sound/@spatialize

type	SFBool
properties	default  true
source	<xs:attribute name="spatialize" type="SFBool" default="true"/>

attribute Sound/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
