element Group

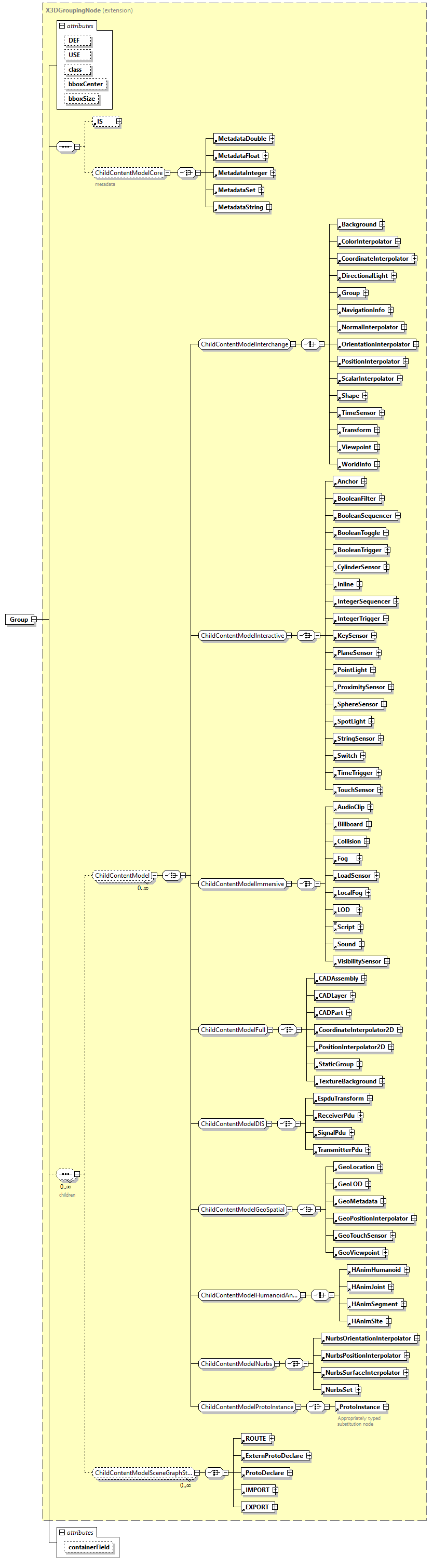

diagram
type	extension of X3DGroupingNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LocalFog LOD Script Sound VisibilitySensor CADAssembly CADLayer CADPart CoordinateInterpolator2D PositionInterpolator2D StaticGroup TextureBackground EspduTransform ReceiverPdu SignalPdu TransmitterPdu GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoTouchSensor GeoViewpoint HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT
used by	element  HAnimHumanoid group  ChildContentModelInterchange
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      containerField   containerFieldChoicesGroupLODShapeTransform      children
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="Group">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/group.html#Group"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DGroupingNode">         <xs:attribute name="containerField" type="containerFieldChoicesGroupLODShapeTransform" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Group/@containerField

type	containerFieldChoicesGroupLODShapeTransform
properties	default  children
facets	Kind  Value  Annotation enumeration  children appinfo parent node has abstract type X3DGroupingNode enumeration  proxy appinfo parent node is Collision enumeration  rootNode appinfo parent node is GeoLOD enumeration  shape appinfo parent node is CADFace or CollidableShape enumeration  skin appinfo parent node is HAnimHumanoid
source	<xs:attribute name="containerField" type="containerFieldChoicesGroupLODShapeTransform" default="children"/>
