group GeometryContentModel

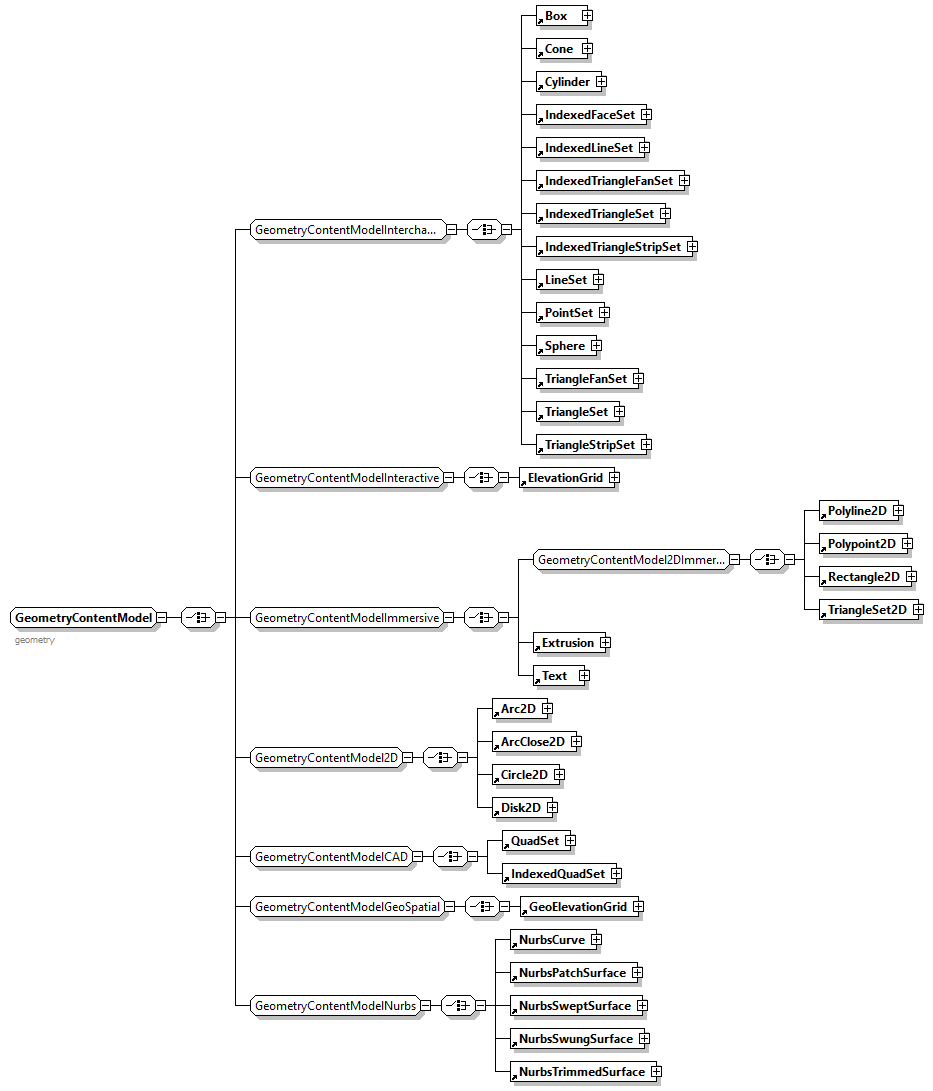

diagram
children	Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D QuadSet IndexedQuadSet GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface
used by	elements  BoundedPhysicsModel SurfaceEmitter VolumePickSensor groups  SceneGraphFragmentContentModel ShapeChildContentModel
annotation	appinfo GeometryContentModel is the child-node content model corresponding to X3DGeometryNode.   No more than one instance of any single geometry node is allowed. documentation geometry
source	<xs:group name="GeometryContentModel">   <xs:annotation>     <xs:appinfo>GeometryContentModel is the child-node content model corresponding to X3DGeometryNode.   No more than one instance of any single geometry node is allowed.</xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/geometry3D.html#Shapeandgeometry">geometry</xs:documentation>   </xs:annotation>   <xs:choice>     <xs:group ref="GeometryContentModelInterchange"/>     <xs:group ref="GeometryContentModelInteractive"/>     <xs:group ref="GeometryContentModelImmersive"/>     <xs:group ref="GeometryContentModel2D"/>     <xs:group ref="GeometryContentModelCAD"/>     <xs:group ref="GeometryContentModelGeoSpatial"/>     <xs:group ref="GeometryContentModelNurbs"/>   </xs:choice> </xs:group>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
