complexType X3DAppearanceNode

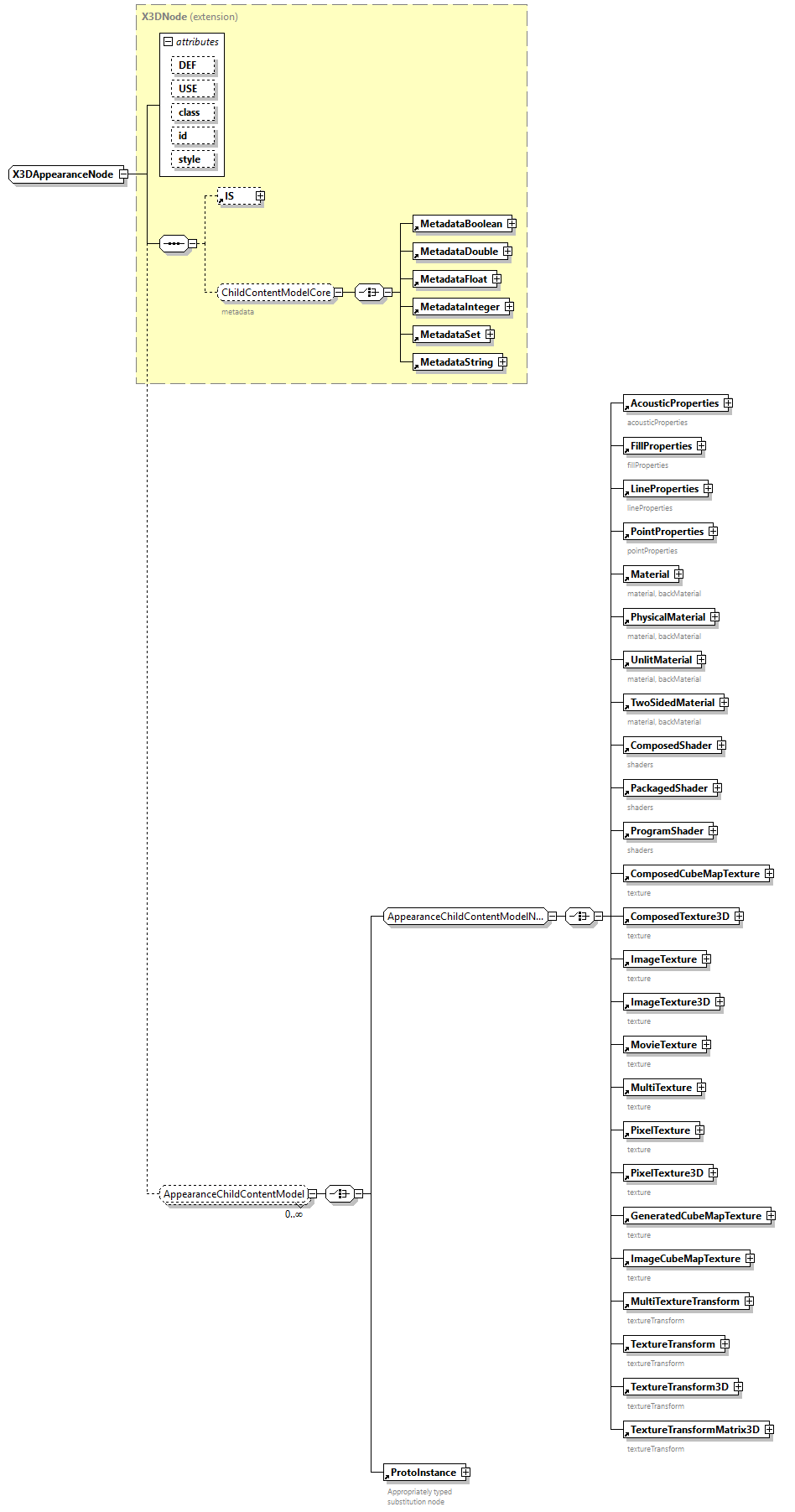

diagram
type	extension of X3DNode
properties	base  X3DNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString AcousticProperties FillProperties LineProperties PointProperties Material PhysicalMaterial UnlitMaterial TwoSidedMaterial ComposedShader PackagedShader ProgramShader ComposedCubeMapTexture ComposedTexture3D ImageTexture ImageTexture3D MovieTexture MultiTexture PixelTexture PixelTexture3D GeneratedCubeMapTexture ImageCubeMapTexture MultiTextureTransform TextureTransform TextureTransform3D TextureTransformMatrix3D ProtoInstance
used by	element  Appearance
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.
annotation	appinfo <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Base type for all Appearance nodes.
source	<xs:complexType name="X3DAppearanceNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Base type for all Appearance nodes.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shape.html#X3DAppearanceNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DNode">       <xs:group ref="AppearanceChildContentModel" minOccurs="0" maxOccurs="unbounded"/>     </xs:extension>   </xs:complexContent> </xs:complexType>
