element Appearance

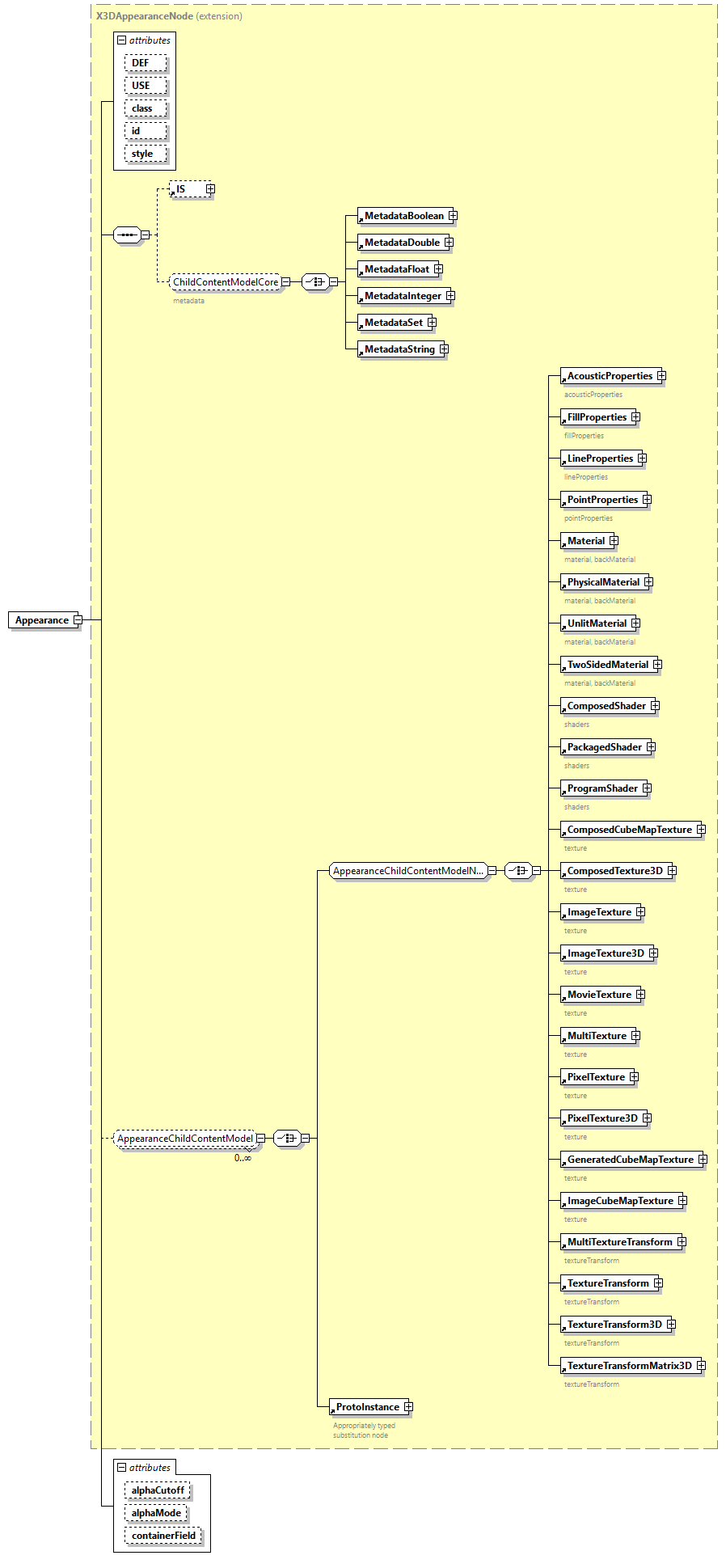

diagram
type	extension of X3DAppearanceNode
properties	content  complex
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString AcousticProperties FillProperties LineProperties PointProperties Material PhysicalMaterial UnlitMaterial TwoSidedMaterial ComposedShader PackagedShader ProgramShader ComposedCubeMapTexture ComposedTexture3D ImageTexture ImageTexture3D MovieTexture MultiTexture PixelTexture PixelTexture3D GeneratedCubeMapTexture ImageCubeMapTexture MultiTextureTransform TextureTransform TextureTransform3D TextureTransformMatrix3D ProtoInstance
used by	groups  SceneGraphFragmentContentModel ShapeChildContentModel
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 alphaCutoff   unitIntervalType      0.5      alphaMode   alphaModeChoices      AUTO      containerField   xs:NMTOKEN      appearance
annotation	appinfo <xs:element name="acousticProperties" type="SFNode" fixed="inputOutputField" default="AcousticProperties"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/> </xs:appinfo> </xs:annotation> </xs:element> <xs:element name="backMaterial" type="SFNode" fixed="inputOutputField" default="X3DMaterialNode"/> <xs:element name="fillProperties" type="SFNode" fixed="inputOutputField" default="FillProperties"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/> </xs:appinfo> </xs:annotation> </xs:element> <xs:element name="lineProperties" type="SFNode" fixed="inputOutputField" default="LineProperties"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> </xs:appinfo> </xs:annotation> </xs:element> <xs:element name="pointProperties" type="SFNode" fixed="inputOutputField" default="PointProperties"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/> </xs:appinfo> </xs:annotation> </xs:element> <xs:element name="material" type="SFNode" fixed="inputOutputField" default="X3DMaterialNode"/> <xs:element name="shaders" type="MFNode" fixed="inputOutputField" default="X3DShaderNode"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/> </xs:appinfo> </xs:annotation> </xs:element> <xs:element name="texture" type="SFNode" fixed="inputOutputField" default="X3DTextureNode"/> <xs:element name="textureTransform" type="SFNode" fixed="inputOutputField" default="X3DTextureTransformNode"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> </xs:appinfo> </xs:annotation> </xs:element> <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="Appearance">   <xs:annotation>     <xs:appinfo>       <xs:element name="acousticProperties" type="SFNode" fixed="inputOutputField" default="AcousticProperties">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>           </xs:appinfo>         </xs:annotation>       </xs:element>       <xs:element name="backMaterial" type="SFNode" fixed="inputOutputField" default="X3DMaterialNode"/>       <xs:element name="fillProperties" type="SFNode" fixed="inputOutputField" default="FillProperties">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>           </xs:appinfo>         </xs:annotation>       </xs:element>       <xs:element name="lineProperties" type="SFNode" fixed="inputOutputField" default="LineProperties">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:element>       <xs:element name="pointProperties" type="SFNode" fixed="inputOutputField" default="PointProperties">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="5"/>           </xs:appinfo>         </xs:annotation>       </xs:element>       <xs:element name="material" type="SFNode" fixed="inputOutputField" default="X3DMaterialNode"/>       <xs:element name="shaders" type="MFNode" fixed="inputOutputField" default="X3DShaderNode">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="3"/>           </xs:appinfo>         </xs:annotation>       </xs:element>       <xs:element name="texture" type="SFNode" fixed="inputOutputField" default="X3DTextureNode"/>       <xs:element name="textureTransform" type="SFNode" fixed="inputOutputField" default="X3DTextureTransformNode">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:element>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Shape"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/shape.html#Appearance"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DAppearanceNode">         <xs:attribute name="alphaCutoff" type="unitIntervalType" default="0.5"/>         <xs:attribute name="alphaMode" type="alphaModeChoices" default="AUTO"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="appearance"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute Appearance/@alphaCutoff

type	unitIntervalType
properties	default  0.5
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  1 pattern  \s*([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="alphaCutoff" type="unitIntervalType" default="0.5"/>

attribute Appearance/@alphaMode

type	alphaModeChoices
properties	default  AUTO
facets	Kind  Value  Annotation enumeration  AUTO appinfo Material transparency is applied to texture transparency enumeration  OPAQUE appinfo Ignore alpha channel texture transparency, opaque enumeration  MASK appinfo Alpha-testing mode for transparent when alpha value less than 0.5 and opaque when greater than or equal to 0.5 enumeration  BLEND appinfo Blend combines partial transparency of textures and materials
source	<xs:attribute name="alphaMode" type="alphaModeChoices" default="AUTO"/>

attribute Appearance/@containerField

type	xs:NMTOKEN
properties	default  appearance
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="appearance"/>
