complexType X3DGroupingNode

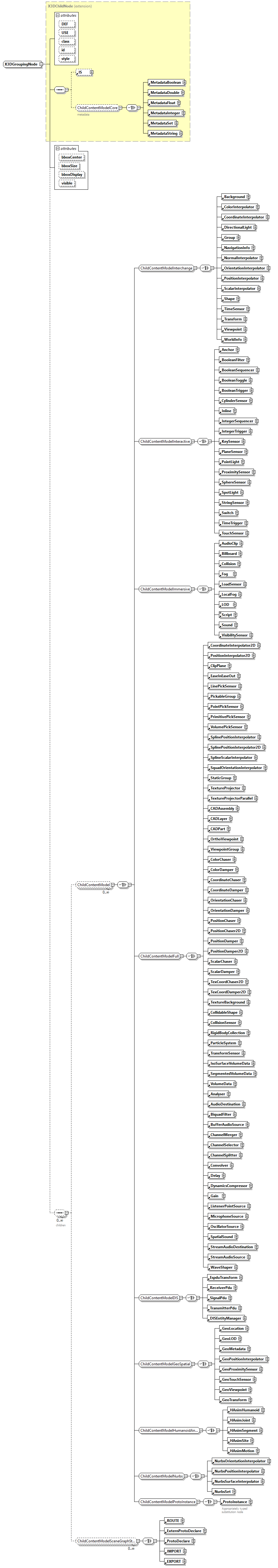

diagram
type	extension of X3DChildNode
properties	base  X3DChildNode abstract  true
children	IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LocalFog LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D ClipPlane EaseInEaseOut LinePickSensor PickableGroup PointPickSensor PrimitivePickSensor VolumePickSensor SplinePositionInterpolator SplinePositionInterpolator2D SplineScalarInterpolator SquadOrientationInterpolator StaticGroup TextureProjector TextureProjectorParallel CADAssembly CADLayer CADPart OrthoViewpoint ViewpointGroup ColorChaser ColorDamper CoordinateChaser CoordinateDamper OrientationChaser OrientationDamper PositionChaser PositionChaser2D PositionDamper PositionDamper2D ScalarChaser ScalarDamper TexCoordChaser2D TexCoordDamper2D TextureBackground CollidableShape CollisionSensor RigidBodyCollection ParticleSystem TransformSensor IsoSurfaceVolumeData SegmentedVolumeData VolumeData Analyser AudioDestination BiquadFilter BufferAudioSource ChannelMerger ChannelSelector ChannelSplitter Convolver Delay DynamicsCompressor Gain ListenerPointSource MicrophoneSource OscillatorSource SpatialSound StreamAudioDestination StreamAudioSource WaveShaper EspduTransform ReceiverPdu SignalPdu TransmitterPdu DISEntityManager GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoProximitySensor GeoTouchSensor GeoViewpoint GeoTransform HAnimHumanoid HAnimJoint HAnimSegment HAnimSite HAnimMotion NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT
used by	elements  Anchor Billboard CADAssembly CADLayer Collision EspduTransform GeoLocation GeoTransform Group HAnimSegment HAnimSite LOD PickableGroup ScreenGroup Switch Transform complexType  X3DViewportNode
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo                     DEF defines a unique ID name for each node, referenceable by other nodes.                 USE   xs:IDREF            appinfo                     USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).                 class   xs:NMTOKENS            appinfo                     The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 id   xs:NMTOKEN            appinfo                     The id attribute is a unique identifier, reserved for use by HTML5/DOM pages, independent of DEF labeling and internal X3D node referencing.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 style   SFString            appinfo                     The style attribute provides an inline block of CSS for element styling, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.                     This attribute is only functional if the X3D model is loaded within an HTML page.                 bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      bboxDisplay   SFBool      false      visible   SFBool      true
annotation	appinfo <xs:element name="addChildren" type="MFNode" fixed="inputOnlyField" default="X3DChildNode"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> </xs:appinfo> </xs:annotation> </xs:element> <xs:element name="removeChildren" type="MFNode" fixed="inputOnlyField" default="X3DChildNode"> <xs:annotation> <xs:appinfo> <xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/> </xs:appinfo> </xs:annotation> </xs:element> <xs:element name="children" type="MFNode" fixed="inputOutputField" default="X3DChildNode"/> <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Grouping nodes can contain other nodes as children, thus making up the backbone of a scene graph.
source	<xs:complexType name="X3DGroupingNode" abstract="true">   <xs:annotation>     <xs:appinfo>       <xs:element name="addChildren" type="MFNode" fixed="inputOnlyField" default="X3DChildNode">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:element>       <xs:element name="removeChildren" type="MFNode" fixed="inputOnlyField" default="X3DChildNode">         <xs:annotation>           <xs:appinfo>             <xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>             <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>           </xs:appinfo>         </xs:annotation>       </xs:element>       <xs:element name="children" type="MFNode" fixed="inputOutputField" default="X3DChildNode"/>       <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Grouping"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>                 Grouping nodes can contain other nodes as children, thus making up the backbone of a scene graph.             </xs:appinfo>     <xs:documentation source="https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/grouping.html#X3DGroupingNode"/>   </xs:annotation>   <xs:complexContent>     <xs:extension base="X3DChildNode">       <xs:sequence minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>children</xs:documentation>         </xs:annotation>         <xs:group ref="ChildContentModel" minOccurs="0" maxOccurs="unbounded"/>         <xs:group ref="ChildContentModelSceneGraphStructure" minOccurs="0" maxOccurs="unbounded"/>       </xs:sequence>       <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>       <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>       <xs:attribute name="bboxDisplay" type="SFBool" default="false"/>       <xs:attribute name="visible" type="SFBool" default="true"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute X3DGroupingNode/@bboxCenter

type	SFVec3f
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute X3DGroupingNode/@bboxSize

type	bboxSizeType
properties	default  -1 -1 -1
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source	<xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

attribute X3DGroupingNode/@bboxDisplay

type	SFBool
properties	default  false
source	<xs:attribute name="bboxDisplay" type="SFBool" default="false"/>

attribute X3DGroupingNode/@visible

type	SFBool
properties	default  true
source	<xs:attribute name="visible" type="SFBool" default="true"/>
