element GeoLocation

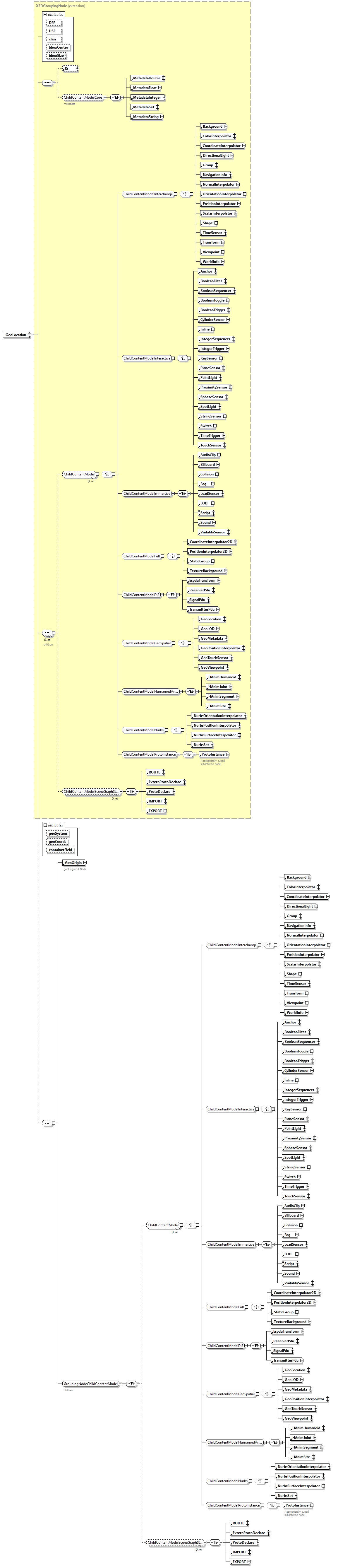

diagram
type	extension of X3DGroupingNode
properties	content  complex
children	IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D StaticGroup TextureBackground EspduTransform ReceiverPdu SignalPdu TransmitterPdu GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoTouchSensor GeoViewpoint HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT GeoOrigin
used by	element  GeoMetadata group  ChildContentModelGeoSpatial
attributes	Name   Type   Use   Default   Fixed   Annotation DEF   xs:ID            appinfo DEF defines a unique ID name for each node, referenceable by other nodes. USE   xs:IDREF            appinfo USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value). class   xs:NMTOKENS            appinfo The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets. bboxCenter   SFVec3f      0 0 0      bboxSize   bboxSizeType      -1 -1 -1      geoSystem   geoSystemType      "GD" "WE"      geoCoords   SFVec3d      0 0 0      containerField   xs:NMTOKEN      children
annotation	appinfo <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/> <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/> <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source	<xs:element name="GeoLocation">   <xs:annotation>     <xs:appinfo>       <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>       <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>       <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>     </xs:appinfo>     <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geodata.html#GeoLocation"/>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="X3DGroupingNode">         <xs:sequence minOccurs="0">           <xs:element ref="GeoOrigin">             <xs:annotation>               <!-- allow GeoOrigin at beginning, middle or end -->               <xs:documentation>geoOrigin SFNode</xs:documentation>             </xs:annotation>           </xs:element>           <xs:group ref="GroupingNodeChildContentModel">             <xs:annotation>               <xs:documentation>children</xs:documentation>             </xs:annotation>           </xs:group>         </xs:sequence>         <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>         <xs:attribute name="geoCoords" type="SFVec3d" default="0 0 0"/>         <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GeoLocation/@geoSystem

type	geoSystemType
properties	default  "GD" "WE"
source	<xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoLocation/@geoCoords

type	SFVec3d
properties	default  0 0 0
facets	Kind  Value  Annotation whiteSpace  collapse pattern  \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source	<xs:attribute name="geoCoords" type="SFVec3d" default="0 0 0"/>

attribute GeoLocation/@containerField

type	xs:NMTOKEN
properties	default  children
source	<xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
