element GeoLOD

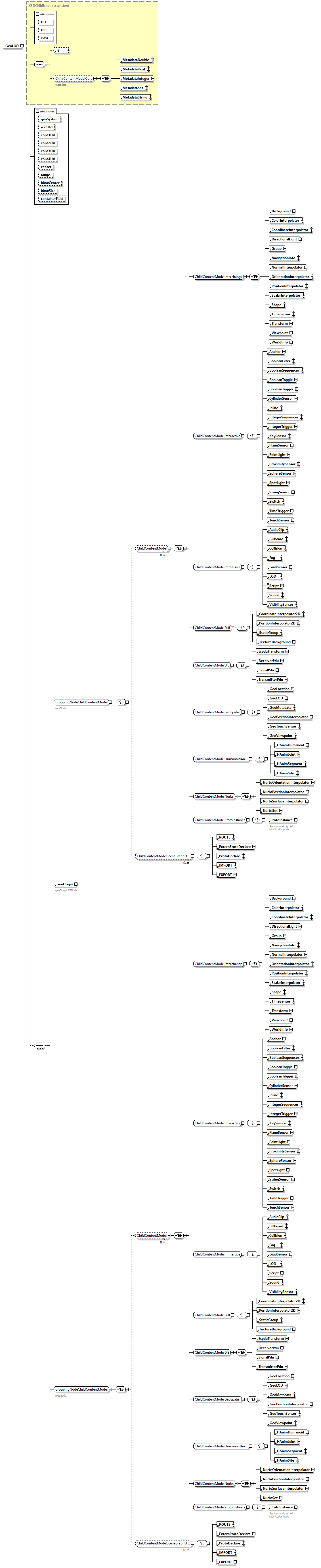

diagram x3d-3.0_diagrams/x3d-3.0_p44.png
type extension of X3DChildNode
properties
content complex
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Background ColorInterpolator CoordinateInterpolator DirectionalLight Group NavigationInfo NormalInterpolator OrientationInterpolator PositionInterpolator ScalarInterpolator Shape TimeSensor Transform Viewpoint WorldInfo Anchor BooleanFilter BooleanSequencer BooleanToggle BooleanTrigger CylinderSensor Inline IntegerSequencer IntegerTrigger KeySensor PlaneSensor PointLight ProximitySensor SphereSensor SpotLight StringSensor Switch TimeTrigger TouchSensor AudioClip Billboard Collision Fog LoadSensor LOD Script Sound VisibilitySensor CoordinateInterpolator2D PositionInterpolator2D StaticGroup TextureBackground EspduTransform ReceiverPdu SignalPdu TransmitterPdu GeoLocation GeoLOD GeoMetadata GeoPositionInterpolator GeoTouchSensor GeoViewpoint HAnimHumanoid HAnimJoint HAnimSegment HAnimSite NurbsOrientationInterpolator NurbsPositionInterpolator NurbsSurfaceInterpolator NurbsSet ProtoInstance ROUTE ExternProtoDeclare ProtoDeclare IMPORT EXPORT GeoOrigin
used by
element GeoMetadata
group ChildContentModelGeoSpatial
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
geoSystem  geoSystemType    "GD" "WE"
rootUrl  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
child1Url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
child2Url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
child3Url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
child4Url  MFString
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
center  SFVec3d    0 0 0
range  derived by: SFFloat    10
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
containerField  xs:NMTOKEN    children
annotation
appinfo

Note that MFNode rootNode field can contain multiple nodes and has accessType inputOutput.
Meanwhile MFNode children field is outputOnly, unlike other X3DGroupingNode exemplars.
<xs:attribute name="center" type="SFVec3d" default="0 0 0" fixed="initializeOnlyField"/>
<xs:attribute name="level_changed" fixed="outputOnlyField">
<xs:simpleType>
<xs:restriction base="SFInt32">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="1"/>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:element name="children" type="MFNode" fixed="outputOnlyField" default="X3DChildNode"/>
<xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>
<xs:element name="rootNode" type="MFNode" fixed="initializeOnlyField" default="X3DChildNode"/>
<xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>
<xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
source <xs:element name="GeoLOD">
  <xs:annotation>
    <xs:appinfo>
Note that MFNode rootNode field can contain multiple nodes and has accessType inputOutput.
Meanwhile MFNode children field is outputOnly, unlike other X3DGroupingNode exemplars.
<xs:attribute name="center" type="SFVec3d" default="0 0 0" fixed="initializeOnlyField"/>
      <xs:attribute name="level_changed" fixed="outputOnlyField">
        <xs:simpleType>
          <xs:restriction base="SFInt32">
            <xs:minInclusive value="0"/>
            <xs:maxInclusive value="1"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
      <xs:element name="children" type="MFNode" fixed="outputOnlyField" default="X3DChildNode"/>
      <xs:element name="geoOrigin" type="SFNode" fixed="initializeOnlyField" default="GeoOrigin"/>
      <xs:element name="rootNode" type="MFNode" fixed="initializeOnlyField" default="X3DChildNode"/>
      <xs:attribute name="additionalInterface" type="xs:string" default="X3DBoundedObject"/>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Geospatial"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
    </xs:appinfo>
    <xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/geodata.html#GeoLOD"/>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="X3DChildNode">
        <xs:sequence minOccurs="0" maxOccurs="1">
          <xs:group ref="GroupingNodeChildContentModel">
            <xs:annotation>
              <xs:documentation>rootNode</xs:documentation>
            </xs:annotation>
          </xs:group>
          <xs:element ref="GeoOrigin">
            <xs:annotation>
              <!-- allow GeoOrigin at beginning, middle or end -->
              <xs:documentation>geoOrigin SFNode</xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:group ref="GroupingNodeChildContentModel">
            <xs:annotation>
              <xs:documentation>rootNode</xs:documentation>
            </xs:annotation>
          </xs:group>
        </xs:sequence>
        <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>
        <xs:attribute name="rootUrl" type="MFString">
          <xs:annotation>
            <xs:appinfo>
              <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
              <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="child1Url" type="MFString">
          <xs:annotation>
            <xs:appinfo>
              <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
              <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="child2Url" type="MFString">
          <xs:annotation>
            <xs:appinfo>
              <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
              <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="child3Url" type="MFString">
          <xs:annotation>
            <xs:appinfo>
              <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
              <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="child4Url" type="MFString">
          <xs:annotation>
            <xs:appinfo>
              <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
              <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
            </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="center" type="SFVec3d" default="0 0 0"/>
        <xs:attribute name="range" default="10">
          <xs:simpleType>
            <xs:restriction base="SFFloat">
              <xs:minInclusive value="0"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>
        <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>
        <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>
      </xs:extension>
      <!-- bboxDisplay, visible added in X3D version 4.0 -->
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute GeoLOD/@geoSystem
type geoSystemType
properties
default "GD" "WE"
source <xs:attribute name="geoSystem" type="geoSystemType" default='"GD" "WE"'/>

attribute GeoLOD/@rootUrl
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="rootUrl" type="MFString">
  <xs:annotation>
    <xs:appinfo>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute GeoLOD/@child1Url
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="child1Url" type="MFString">
  <xs:annotation>
    <xs:appinfo>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute GeoLOD/@child2Url
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="child2Url" type="MFString">
  <xs:annotation>
    <xs:appinfo>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute GeoLOD/@child3Url
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="child3Url" type="MFString">
  <xs:annotation>
    <xs:appinfo>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute GeoLOD/@child4Url
type MFString
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
source <xs:attribute name="child4Url" type="MFString">
  <xs:annotation>
    <xs:appinfo>
      <xs:attribute name="componentName" type="componentNameChoices" fixed="Networking"/>
      <xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="4"/>
    </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute GeoLOD/@center
type SFVec3d
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="center" type="SFVec3d" default="0 0 0"/>

attribute GeoLOD/@range
type restriction of SFFloat
properties
default 10
facets
Kind Value Annotation
minInclusive 0
source <xs:attribute name="range" default="10">
  <xs:simpleType>
    <xs:restriction base="SFFloat">
      <xs:minInclusive value="0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute GeoLOD/@bboxCenter
type SFVec3f
properties
default 0 0 0
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*(([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+-]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*
source <xs:attribute name="bboxCenter" type="SFVec3f" default="0 0 0"/>

attribute GeoLOD/@bboxSize
type bboxSizeType
properties
default -1 -1 -1
facets
Kind Value Annotation
whiteSpace collapse
pattern \s*((([+]?(((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s+){2}([+]?((0|[1-9][0-9]*)(\.[0-9]*)?|\.[0-9]+)([Ee][+-]?[0-9]+)?)\s*)|((\-1(\.(0)*)?([Ee][+-]?[0]+)?\s+){2}\-1(\.(0)*)?([Ee][+-]?[0]+)?)\s*)?
source <xs:attribute name="bboxSize" type="bboxSizeType" default="-1 -1 -1"/>

attribute GeoLOD/@containerField
type xs:NMTOKEN
properties
default children
source <xs:attribute name="containerField" type="xs:NMTOKEN" default="children"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
